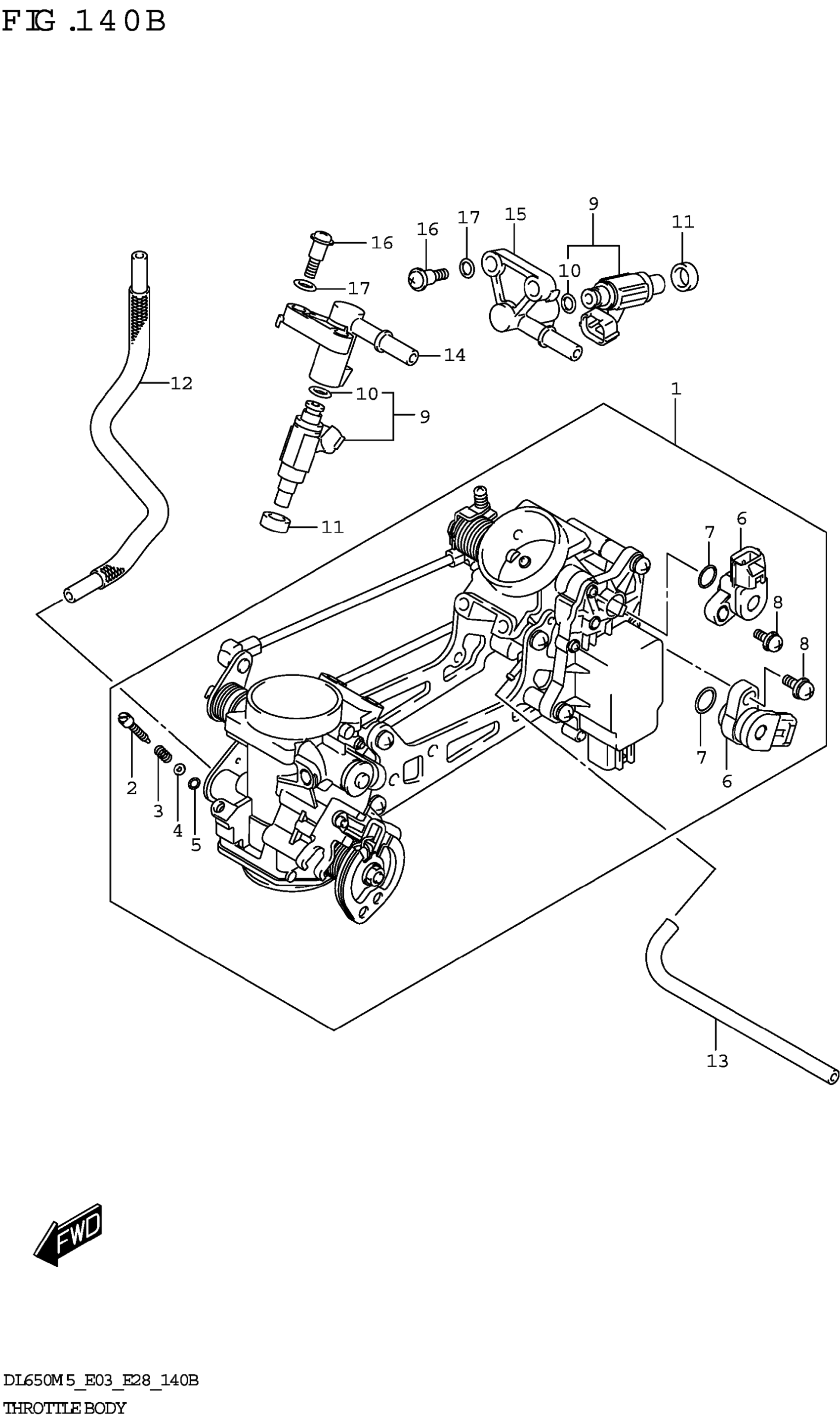

Suzuki DL650AM5 (2025) THROTTLE BODY ((E03,E28)) Diagram

Description

Price

BODY ASSY, THROTTLE

13405-28K00

$1,159.23

SCREW

13269-33E00

$11.10

SPRING,THROTTLE SCREW

13268-48700

$4.34

WASHER

13606-47A00

$3.28

O-RING

13295-29901

$4.34

.SENSOR

13580-27G21

$145.53

.O-RING

13575-29G01

$3.15

.SCREW

13605-02F00

$3.71

INJECTOR ASSY

15710-11J00

$271.53

.O-RING

15717-58B00

$9.95

SEAL

15722-29G00

$10.93

HOSE

13683-28K01

$26.05

HOSE

13683-44H11

$18.20

DELIVERY PIPE

15731-11J00

Unavailable

DELIVERY PIPE

15732-11J00

Unavailable

SCREW

13601-11J00

$4.79

PACKING

13602-29G01

$2.43
