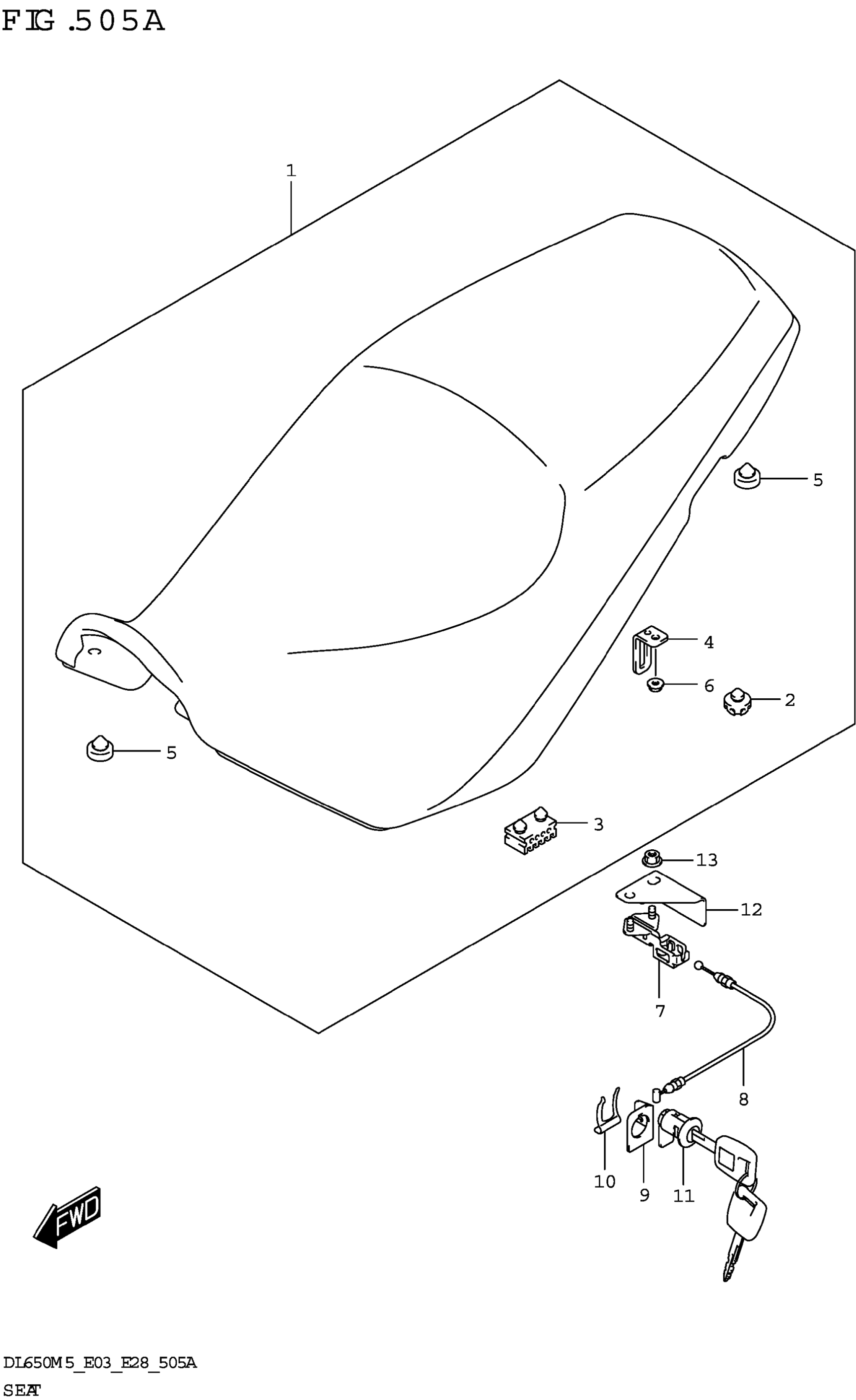

Suzuki DL650AM5 (2025) SEAT (DL650A) Diagram

#

Description
Price

1

SEAT ASSY

45100-28K01-BGP

$413.38

2

.CUSHION

45148-20G90

$5.55

3

.CUSHION

09321-08006

$2.90

4

.STRIKER,SEAT LOCK

45212-18K00

$9.63

5

.CUSHION

45148-28K00

$6.17

6

NUT (6X12)

08316-1006A

$2.19

7

BRACKET,STRIKER SUPPORT

45220-04K20

$31.88

8

CABLE, SEAT LOCK

45280-28K00

$17.72

9

GUIDE,SEAT LOCK CABLE

45288-14F00

$5.36

10

PLATE, SEAT LOCK ASSY

45289-28K00

$5.98

11

LOCK SET,SEAT

95700-14810

$107.30

12

GUARD, SEAT LOCK

45288-28K00

$12.97

13

NUT (6X12)

08316-1006A

$2.19
