Description

Price

1

SWINGINGARM ASSY, REAR

61000-27G31-YAP

$1,136.88

2

.SPACER (20.8X27.2X196.7)

09180-20118

$24.35

3

BEARING (25X33X35)

09263-25073

$30.93

4

.BEARING (17X24X25)

09263-17053

$21.66

5

SPACER,PIVOT BEARING

61251-31E00

$59.25

6

SHAFT, RR SWINGINGARM PIVOT

61211-06G00

Unavailable

7

NUT, RR SWGARM PIVOT BOLT

61214-19F10

$21.40

8

NUT

08319-3118A

$24.48

9

BUFFER, CHAIN TOUCH DEFENSE

61273-27G01

$34.45

10

BOLT This part replaces 09116-06111.

09116-06152

$2.36

11

.SPACER

09180-06346

$2.16

12

ADJUSTER, CHAIN

61410-03F00

$39.17

13

PLATE, CHAIN ADJUSTER GUIDE R

61421-33D01

$33.00

14

PLATE, CHAIN ADJUSTER GUIDE L

61422-33D01

$33.00

15

WASHER, CHAIN ADJUSTER RH

64712-03F01

$4.40

16

WASHER, CHAIN ADJUSTER LH

64713-03F01

$5.17

17

BOLT (8X50)

09106-08119

$4.04

18

WASHER

09164-08015

$3.21

19

CASE,CHAIN

61310-16G00

$98.40

20

BOLT (6X12)

09139-06225

$2.92

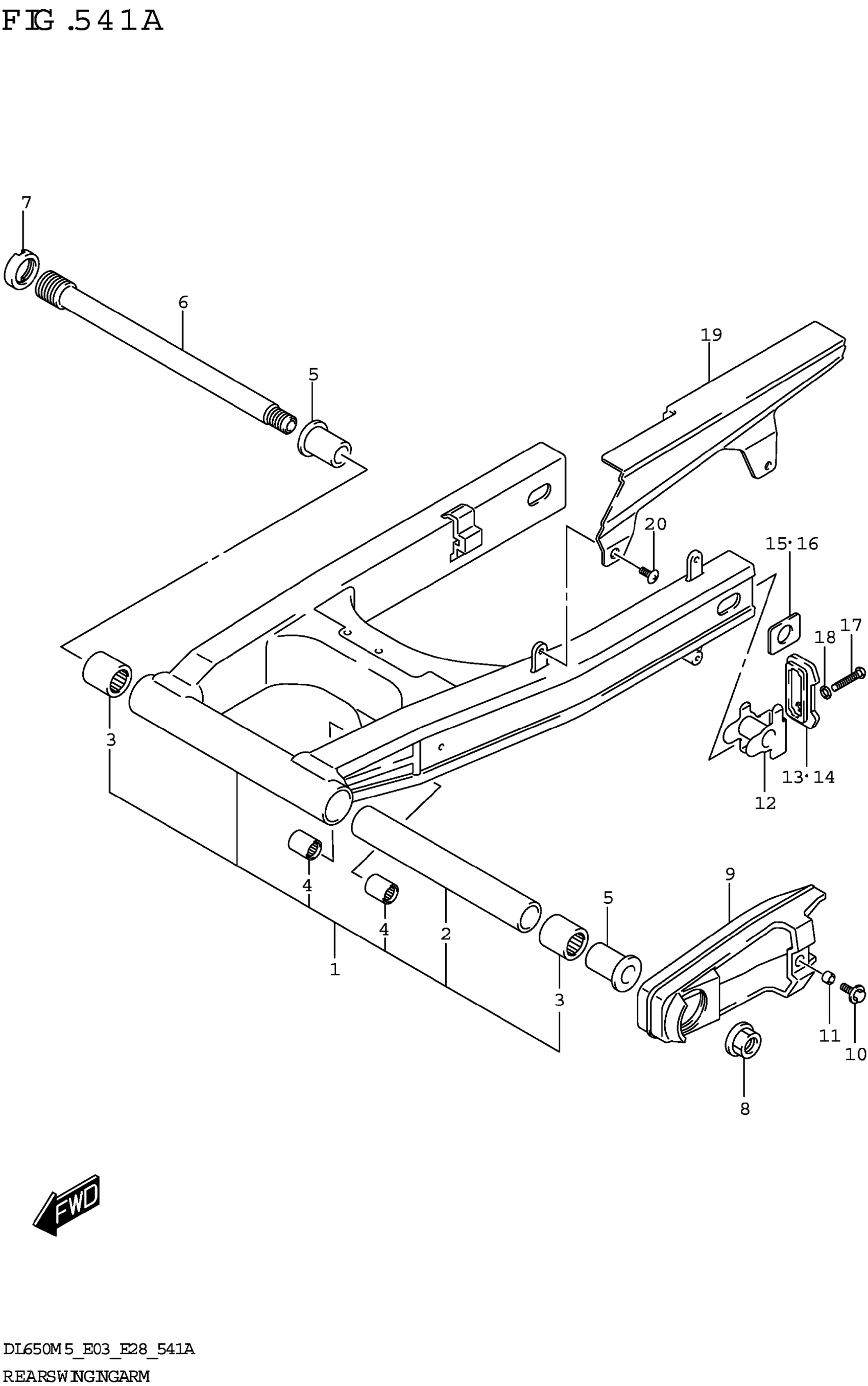

Suzuki DL650AM5 (2025) REAR SWINGINGARM Diagram
