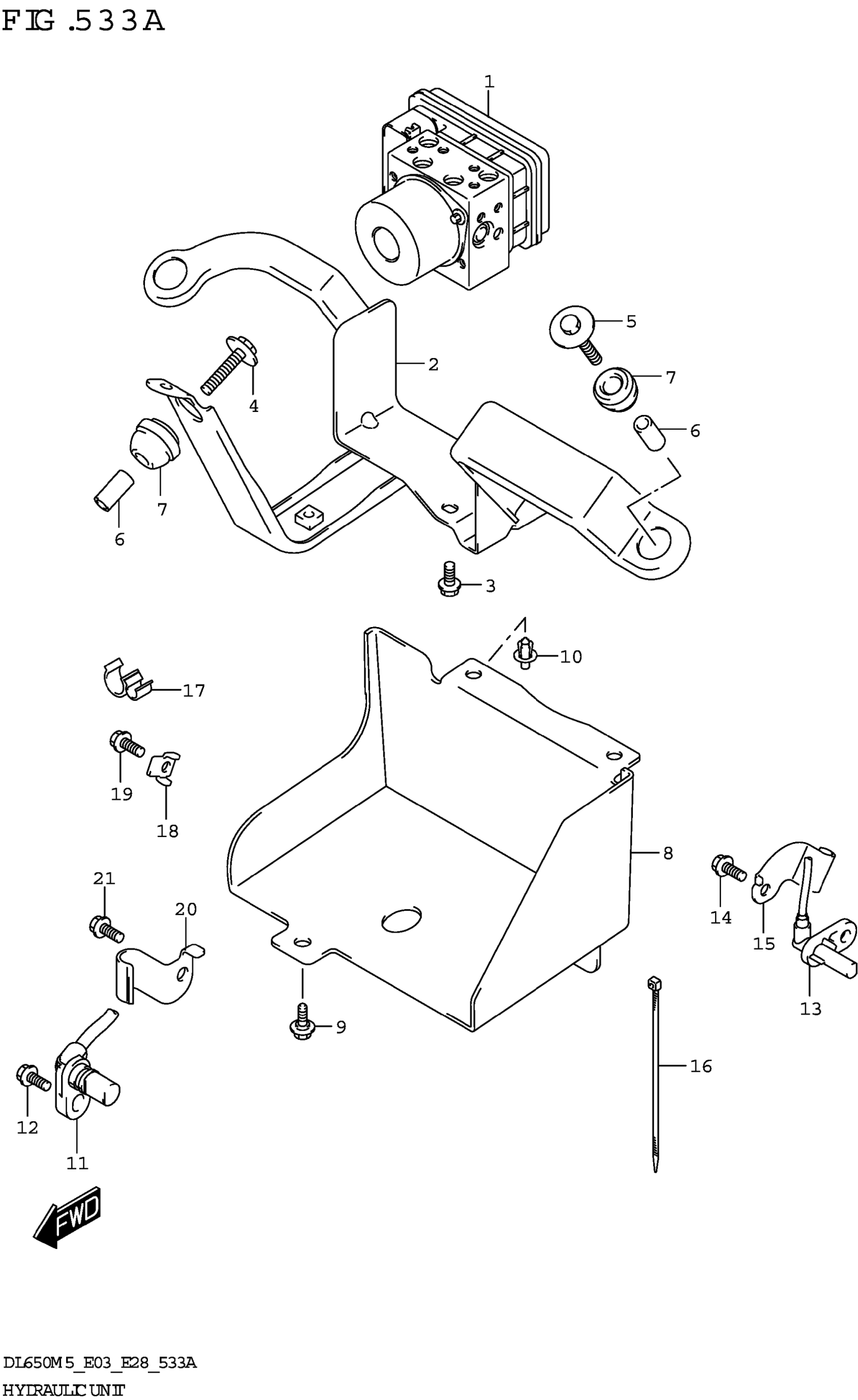

Suzuki DL650AM5 (2025) HYDRAULIC UNIT Diagram

#

Description
Price

1

UNIT ASSY, HYDRAULIC ABS

55610-28K01

$986.42

2

HOLDER, HYDR UNIT ABS

55660-11J10

Unavailable

3

BOLT

01550-0612A

$1.97

4

BOLT (6X30)

09116-06171

$3.08

5

BOLT (6X37)

09116-06176

Unavailable

6

SPACER (6.5X10X20)

09180-06296

$2.45

7

CUSHION

09320-10061

Unavailable

8

COVER, HYDR ABS UNIT

55667-27G20

$30.67

9

BOLT (6X16)

09111-06066

$2.62

10

CLIP (7.6X25.7)

09409-08308

$2.26

11

SENSOR, FR WHEEL SPEED

55710-28K00

$211.40

12

BOLT

01547-0616B

$2.45

13

SENSOR, RR WHEEL SPEED

65710-28K00

$233.67

14

BOLT

01547-0616A

$2.03

15

CLAMP, RR WHEEL SPEED SENSOR

65731-28K00

$6.50

16

CLAMP (L:145)

09407-14407

$3.57

17

CLAMP

09408-00266

$2.51

18

GUIDE, SENSOR LEAD

34938-14F00

$6.30

19

BOLT

01547-0612A

$2.03

20

CLAMP, FR WHL SPD SENSOR

55731-28K00

$11.78

21

BOLT

01547-0612A

$2.03
