Description

Price

1

HANDLEBAR (SILVER)

56111-28K00-YUS

$106.72

2

BALANCER SET, HANDLEBAR

56200-32861

$48.78

3

.SCREW

02122-0680B

$3.72

4

.SPACER, KNUCKLE COVER

57346-14G00

$17.38

5

.WASHER (6.5X16X4)

09160-06131

$2.50

6

.EXPANDER,HANDLE BALANCER

56272-10G01

$4.72

7

.NUT,HANDLE BALANCER

56273-10G10

$8.65

8

MIRROR ASSY, RR VIEW RH

56500-04F30

$124.58

9

MIRROR ASSY, RR VIEW LH

56600-04F30

$123.98

10

CABLE ASSY, CLUTCH

58200-11J00

$50.35

11

GUIDE, CLUTCH CABLE

58631-11J10

Unavailable

12

STOPPER,CLUTCH CABLE

58634-44H00

$15.42

13

BOLT

01547-0612A

$2.03

14

CABLE ASSY, THROTTLE NO.1

58300-11J01

$39.70

15

CABLE ASSY, THROTTLE NO.2

58300-11J11

$38.05

16

SCREW (5X10)

09125-05042

$1.96

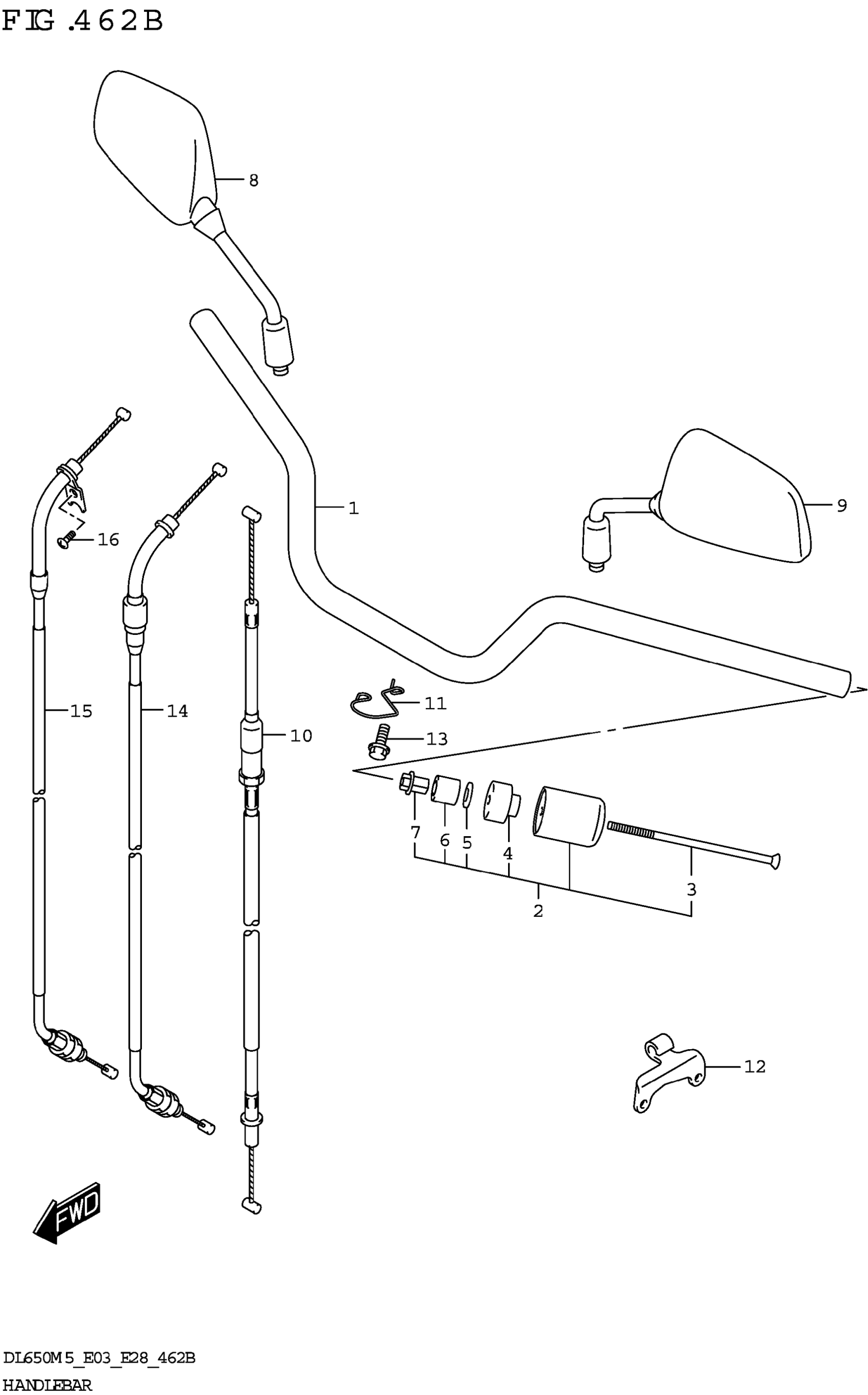

Suzuki DL650AM5 (2025) HANDLEBAR ((DL650XA)) Diagram
