Partiron

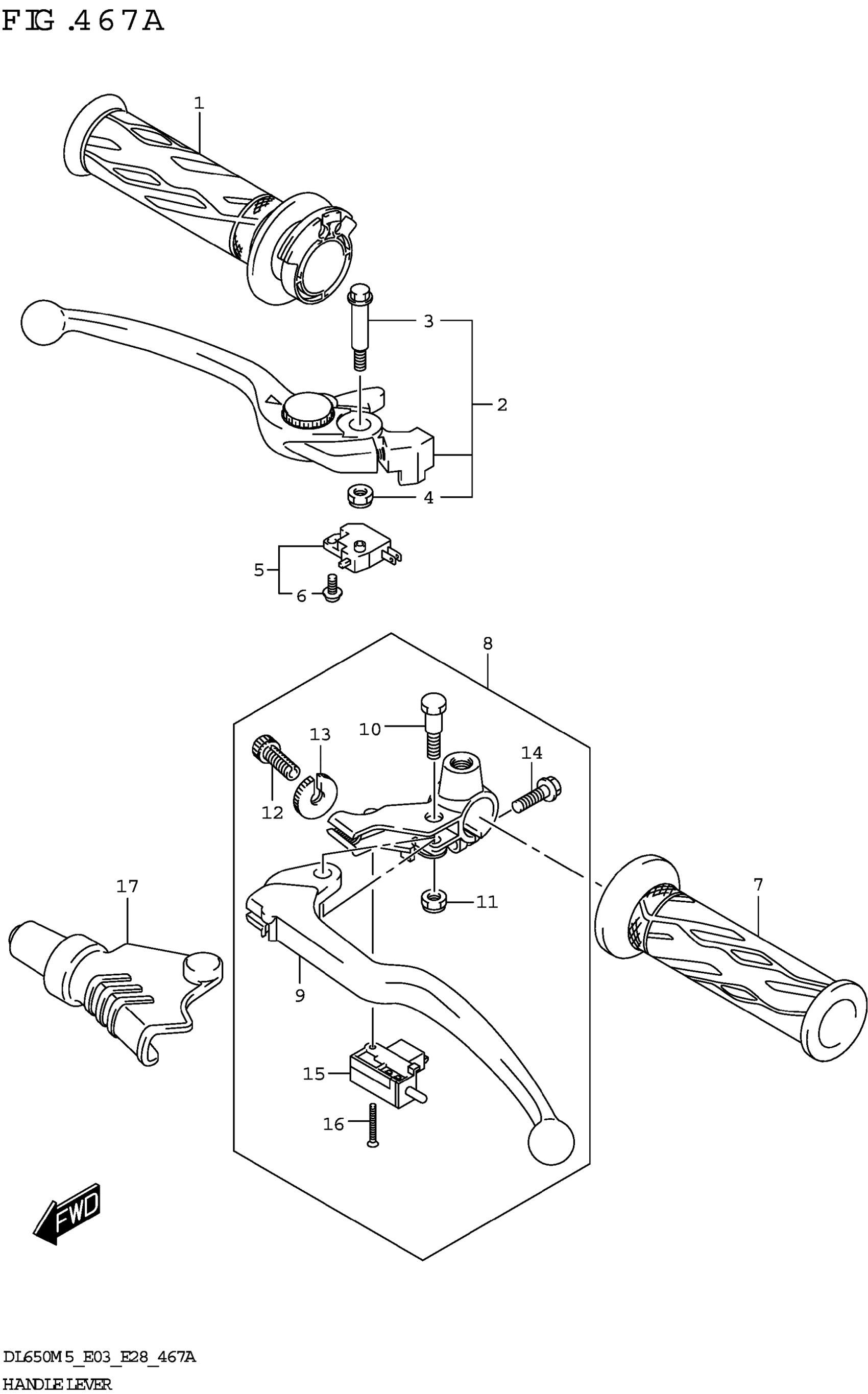

Suzuki DL650AM5 (2025) HANDLE LEVER ((DL650A)) Diagram

#

Description
Price

1

GRIP,THROTTLE

57110-21H02

$18.61

2

LEVER ASSY, FR BRAKE

57300-44G12

$50.00

3

.BOLT,LEVER PIVOT

57431-17H02

$6.72

4

.NUT

08319-2106A

$1.89

5

SWITCH ASSY,FR BRAKE

57460-14J02

$35.21

6

.SCREW,WITH WASHER (4X12)

57465-17C00

$2.37

7

GRIP,L

57211-21H01

$10.18

8

LEVER ASSY, CLUTCH

57500-25D04

$33.87

9

LEVER ASSY, CLUTCH This part replaces 57621-33E01.

57621-40F00

$16.69

10

..BOLT,LEVER PIVOT

57431-21D11

$8.94

11

.NUT

08319-2106A

$1.89

12

.ADJUSTER, WIRE

57441-45C01

$8.29

13

.NUT, LOCK

57442-45C01

$7.92

14

..BOLT

01547-0620B

$2.43

15

.SWITCH,CLUTCH

57560-05A00

$11.12

16

.SCREW,CLUTCH SWITCH

57562-41G01

$10.82

17

COVER,CLUTCH LEVER

57661-33E01

$7.76
