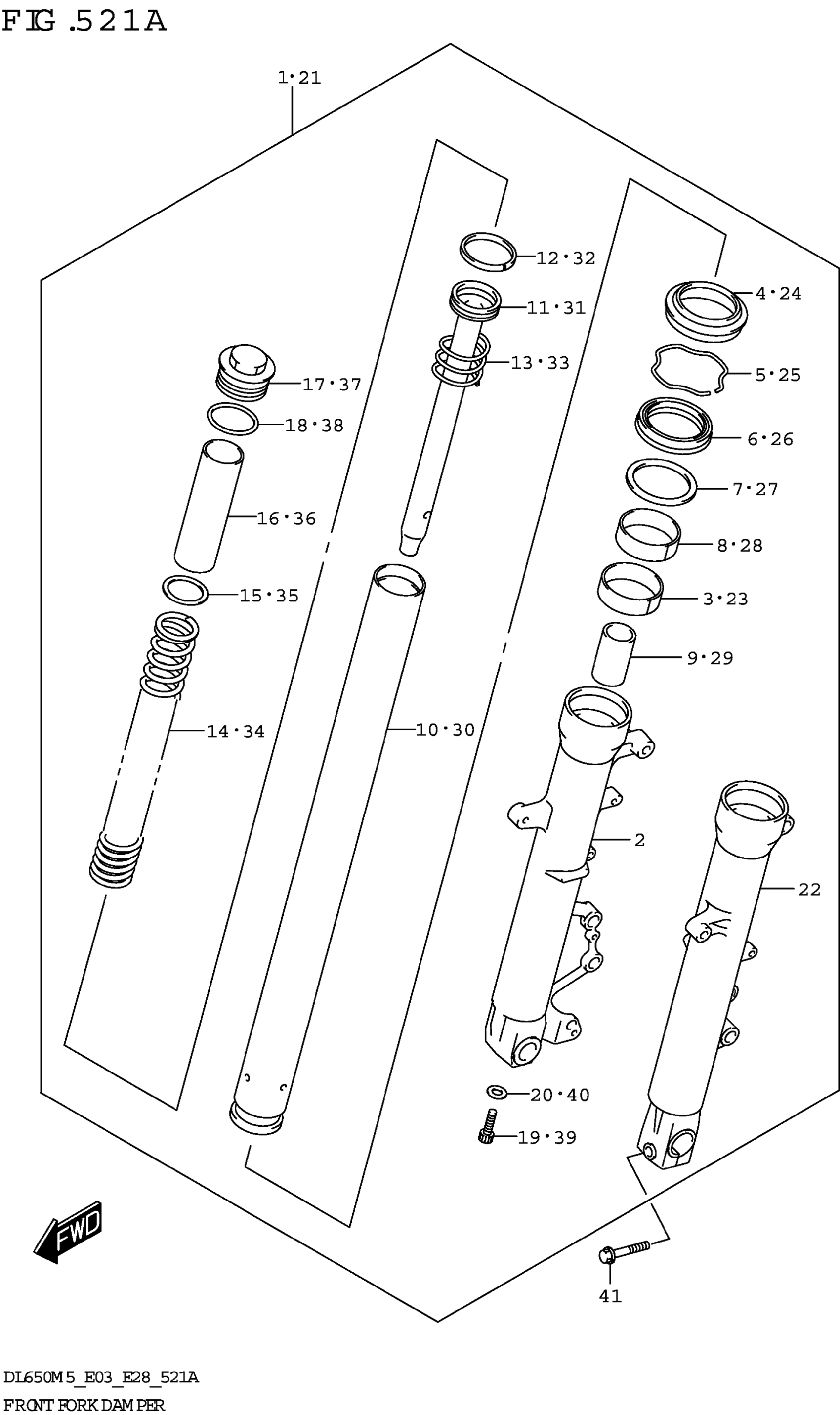

Find the part on the Front Fork Damper diagram for your 2025 Suzuki DL650AM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Suzuki DL650AM5 Front Fork Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, FR FORK RH | RH

51103-28KA0-291

1
Out of stock

2

.TUBE, OUTER RH | RH

51131-28K00-291

1
Out of stock

3

.BUSH, SLIDE

51121-11J10

1
Out of stock

4

.SEAL, DUST

51173-27G00

1
Out of stock

5

.RING, STOPPER

51556-28KA0

1
Out of stock

6

.OIL SEAL

51153-28KA0

1
Out of stock

7

.SPACER, SEAL

51168-28KA0

1
Out of stock

8

.BUSH, GUIDE

51152-47H00

1
Out of stock

9

.PIECE, OIL LOCK

51195-28KA0

1
Out of stock

10

.PIPE, FORK

51110-28KA0

1
Out of stock

11

.PIPE, SEAT

51146-28KA0

1
Out of stock

12

.RING, PISTON

51196-28KA0

1
Out of stock

13

.SPRING, REBOUND

51177-28KA0

1
Out of stock

14

.SPRING, FR

51171-28K10

1
Out of stock

15

.SEAT, SPRING LWR | LOWER

51186-28KA0

1
Out of stock

16

.COLLAR, SPRING

51176-28KA0

1
Out of stock

17

.BOLT, FORK

51189-28K00

1
Out of stock

18

.O RING

51117-28KA0

1
Out of stock

19

.BOLT

51147-28KA0

1
Out of stock

20

.GASKET

51148-28KA0

1
Out of stock

21

DAMPER ASSY, FR FORK LH | LH

51104-28KA0-291

1
Out of stock

22

.TUBE, OUTER LH | LH

51141-28K00-291

1
Out of stock

23

.BUSH, SLIDE

51121-11J10

1
Out of stock

24

.SEAL, DUST

51173-27G00

1
Out of stock

25

.RING, STOPPER

51556-28KA0

1
Out of stock

26

.OIL SEAL

51153-28KA0

1
Out of stock

27

.SPACER, SEAL

51168-28KA0

1
Out of stock

28

.BUSH, GUIDE

51152-47H00

1
Out of stock

29

.PIECE, OIL LOCK

51195-28KA0

1
Out of stock

30

.PIPE, FORK

51110-28KA0

1
Out of stock

31

.PIPE, SEAT

51146-28KA0

1
Out of stock

32

.RING, PISTON

51196-28KA0

1
Out of stock

33

.SPRING, REBOUND

51177-28KA0

1
Out of stock

34

.SPRING, FR

51171-28K10

1
Out of stock

35

.SEAT, SPRING LWR | LOWER

51186-28KA0

1
Out of stock

36

.COLLAR, SPRING

51176-28KA0

1
Out of stock

37

.BOLT, FORK

51189-28K00

1
Out of stock

38

.O RING

51117-28KA0

1
Out of stock

39

.BOLT

51147-28KA0

1
Out of stock

40

.GASKET

51148-28KA0

1
Out of stock

41

BOLT,HOLDER AXLE (8X40) | LH

51328-27E30

1
Out of stock
