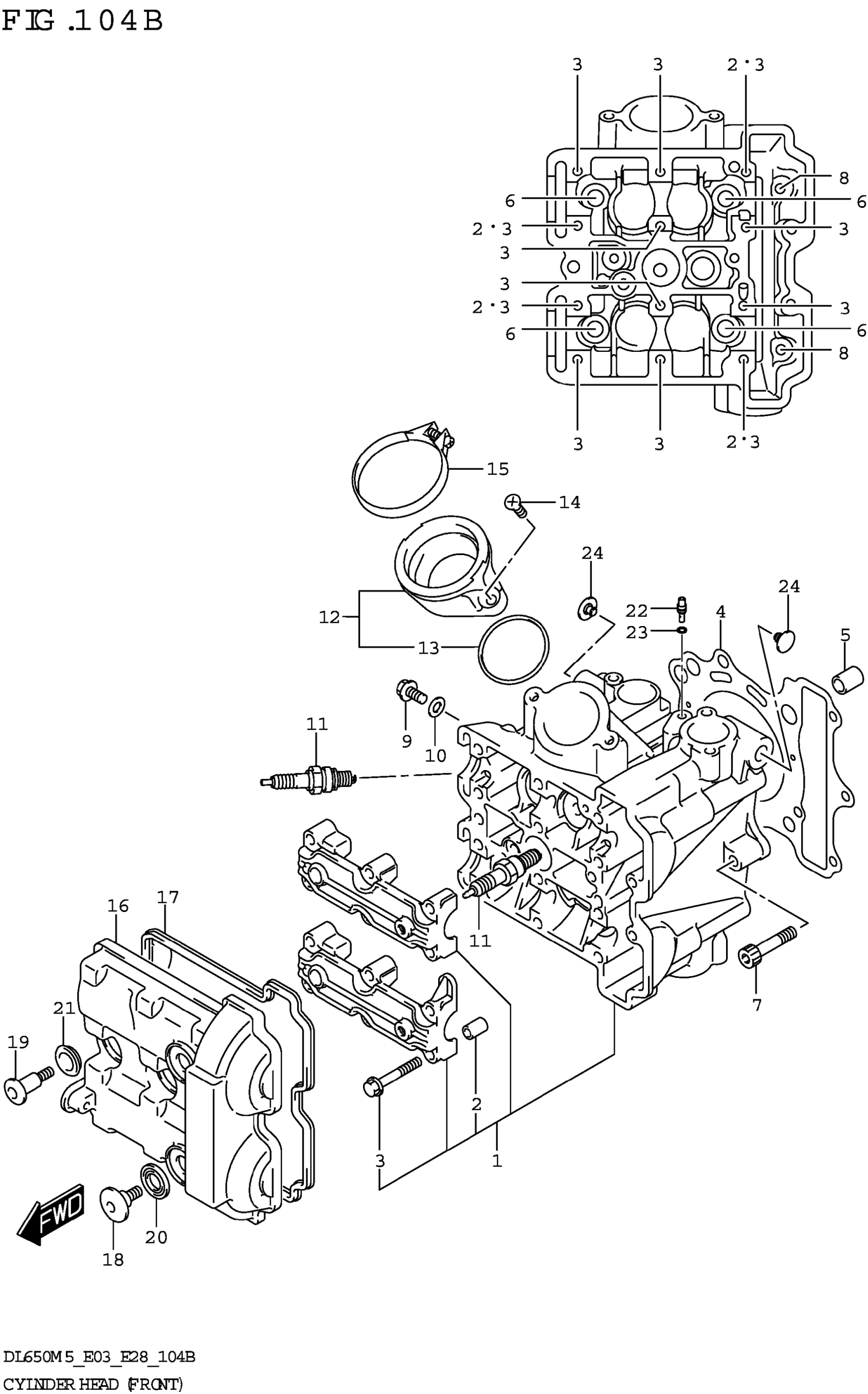

Suzuki DL650AM5 (2025) CYLINDER HEAD (FRONT) Diagram

#

Description
Price

1

HEAD ASSY,CYLINDER FRONT

11101-44H01

Unavailable

2

.PIN (8X11)

09206-08001

$1.78

3

.BOLT (6X40)

09103-06266

$2.12

4

.GASKET,CYLINDER HEAD

11141-20F00

$43.52

5

PIN (10.4X13X18)

04211-13189

$2.19

6

BOLT,CYL HEAD (L:160)

11117-44H00

$19.73

7

BOLT

07120-0640A

$3.05

8

BOLT (6X70)

09103-06103

$2.53

9

BOLT

01550-0612A

$1.97

10

GASKET (5.8X13X1.2)

09168-06023

$2.35

11

PLUG,SPARK (MR8E-9)

09482-00646

$18.38

12

PIPE ASSY,INTAKE FRONT

13101-17G11

$47.03

13

.O-RING (D:2.4,ID:47X42)

09280-46007

$7.01

14

SCREW

02122-0616B

$1.96

15

CLAMP,INTAKE PIPE

13827-40H01

$15.37

16

COVER,CYLINDER HEAD FR

11171-19F20

$153.20

17

.GASKET,CYLINDER HEAD COVER

11173-19F01

$34.08

18

BOLT (7X17.5)

09106-07021

$4.50

19

BOLT (7X31)

09106-07010

$4.64

20

WASHER,CYL HEAD COVER (10.6X2 | .5X1.6)

11191-27E00

$4.27

21

CUSHION,HEAD COVER BOLT

11192-13E00

$4.34

22

JET (#8)

09493-80005

$16.25

23

O-RING (D:1.2,ID:4)

09280-04004

$1.91

24

CAP,ENGINE MOUNTING RR RH

11151-27G01

$3.68
