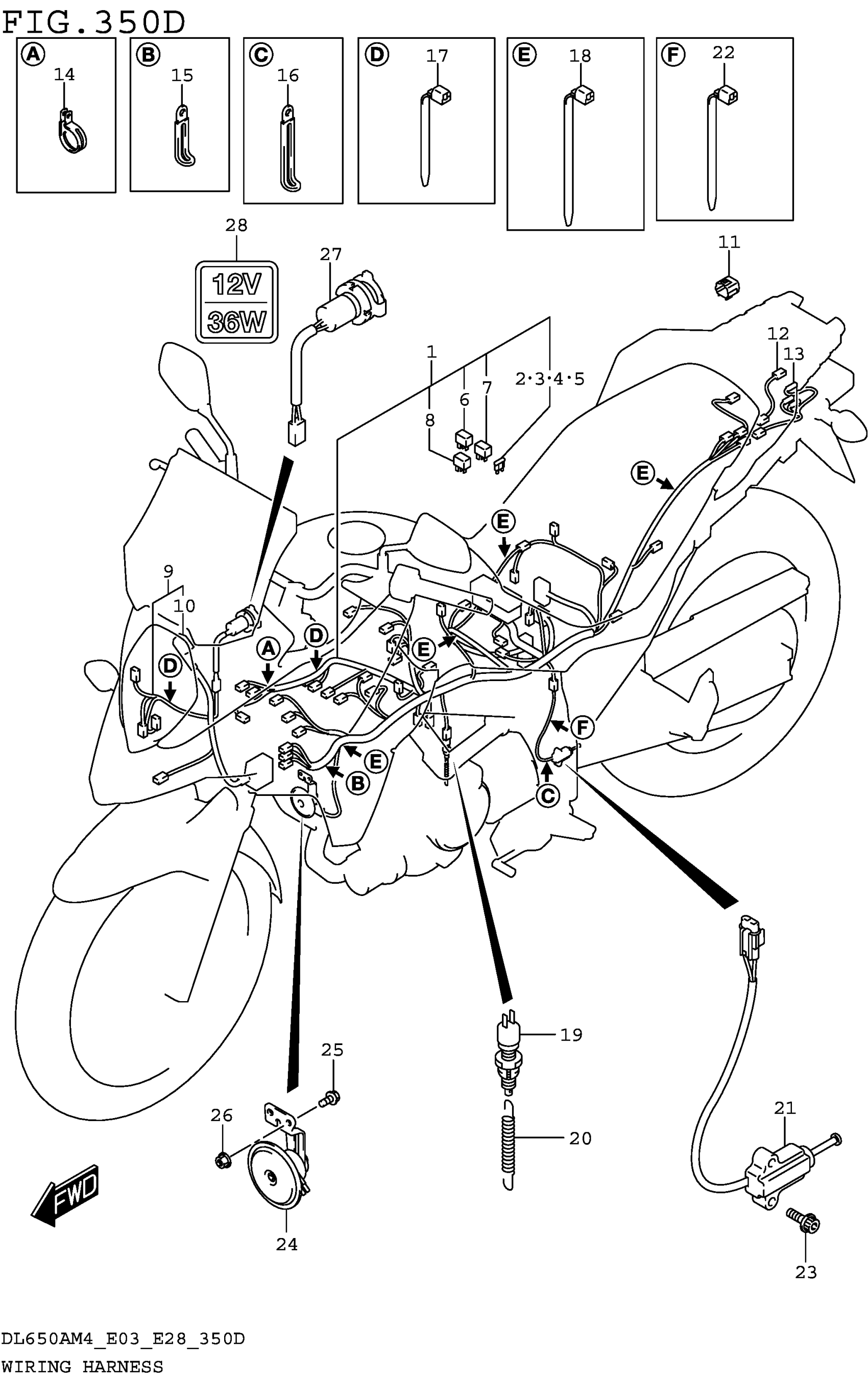

Suzuki DL650AM4 (2024) WIRING HARNESS (DL650XAM4 E03) Diagram

#

Description
Price

1

HARNESS, WIRING NO.1

36610-28K11

$673.68

2

.FUSE (3A)

09481-03501

$2.25

3

.FUSE (10A)

09481-10504

$2.06

4

.FUSE (15A)

09481-15504

$2.07

5

.FUSE (25A)

09481-25504

$2.75

6

.RELAY ASSY | FUEL PUMP

38860-76F01

$34.37

7

.RELAY ASSY | FAN MOTOR

38860-76F01

$34.37

8

.RELAY ASSY | SIDE STAND

38860-76F01

$34.37

9

HARNESS, WIRING NO.2

36620-28K00

Unavailable

10

.COVER,CONNECTOR

36618-41G00

Unavailable

11

CAP,TS

36654-06J01

$13.85

12

WIRE, REAR COMB LEAD

36853-28K00

$27.88

13

WIRE, REAR TURNSIGNAL LEAD

36856-28K00

$29.35

14

CLAMP

09403-26402

$3.92

15

CLAMP (L:80)

09404-06030

Unavailable

16

CLAMP (L:45)

09404-06429

$1.83

17

CLAMP (L:125)

09407-14403

$2.26

18

CLAMP (L:165)

09407-18402

$2.19

19

SWITCH ASSY, STOP LAMP

37740-31D00

$28.23

20

SPRING

09443-06012

$3.16

21

SWITCH ASSY,SIDE STAND This part replaces 37840-06G01.

37840-06G02

$60.37

22

CLAMP (L:100)

09407-10404

$2.90

23

BOLT

01550-0616A

$1.97

24

HORN ASSY

38500-11J00

$83.55

25

BOLT (6X16)

09118-06017

$2.12

26

NUT (6X12)

08316-1006A

$2.19

27

TERMINAL,POWER SOURCE

38850-31J00

$73.47

28

LABEL,MAX AMP

38852-28K01

$2.60
