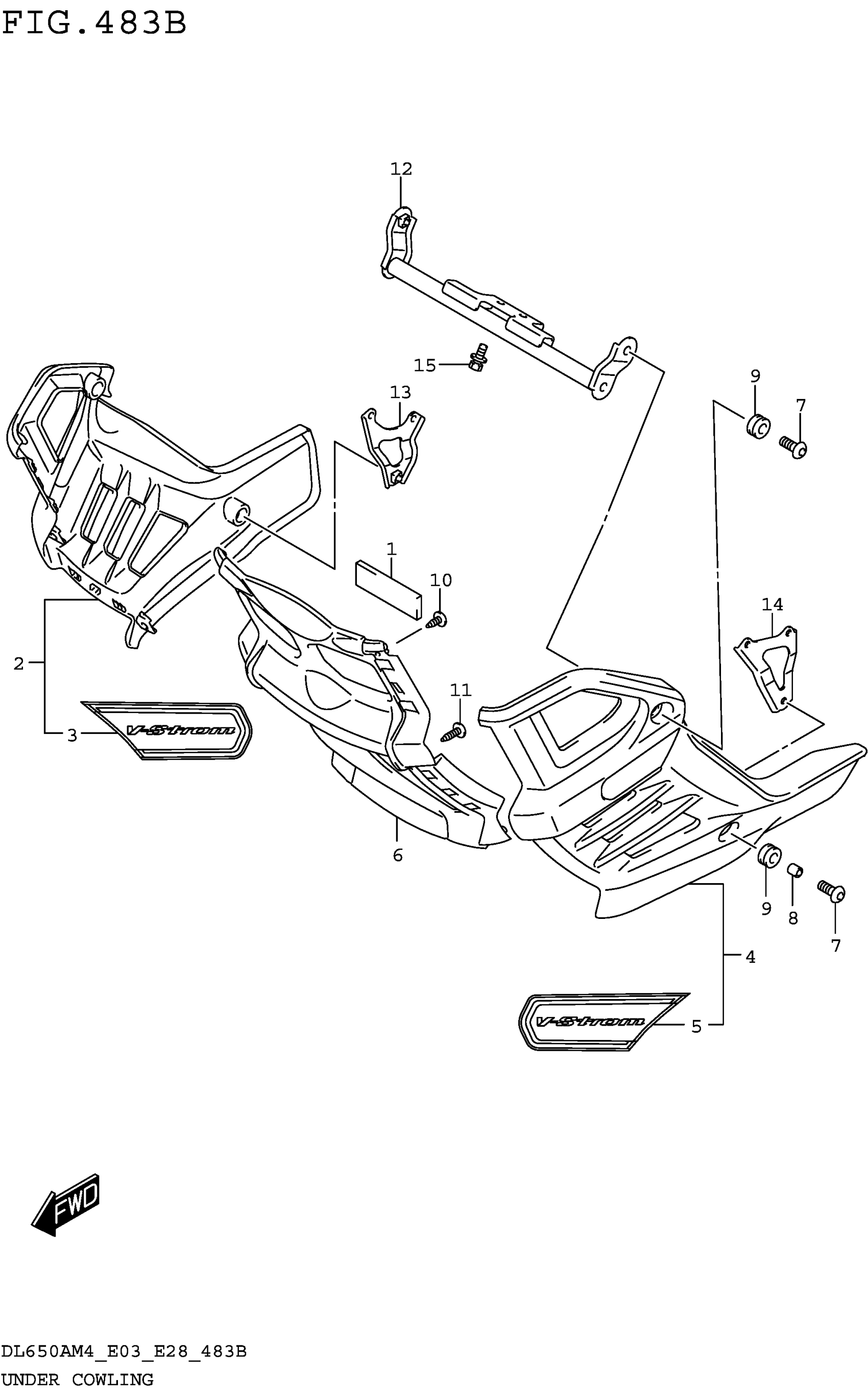

Suzuki DL650AM4 (2024) UNDER COWLING (DL650XAM4 E28) Diagram

#

Description
Price

1

CUSHION, FRAME COVER LWR NO.1

47612-44H00

$6.80

2

UNDER COWL RH

94470-11J00-291

$119.63

3

.EMBLEM, UNDER COWLING RH

68181-11J00

Unavailable

4

UNDER COWL LH

94480-11J00-291

$119.63

5

.EMBLEM, UNDER COWLING LH

68191-11J00

Unavailable

6

COWLING, UNDER CTR

94491-11J00-291

$58.62

7

SCREW (6X16)

09139-06139

$3.23

8

SPACER (6.5X9X9)

09180-06263

$2.03

9

CUSHION (9X18X9.5)

09320-09016

$1.97

10

SCREW

03541-0510B

$2.23

11

SCREW

03541-0516B

$1.78

12

BRACKET, UNDER COWLING FR

94520-11J00

$37.67

13

BRACKET, UNDER COWLING RH

94530-11J00

$8.30

14

BRACKET, UNDER COWLING LH

94540-11J00

$8.30

15

BOLT (6X16)

09116-06006

$1.86
