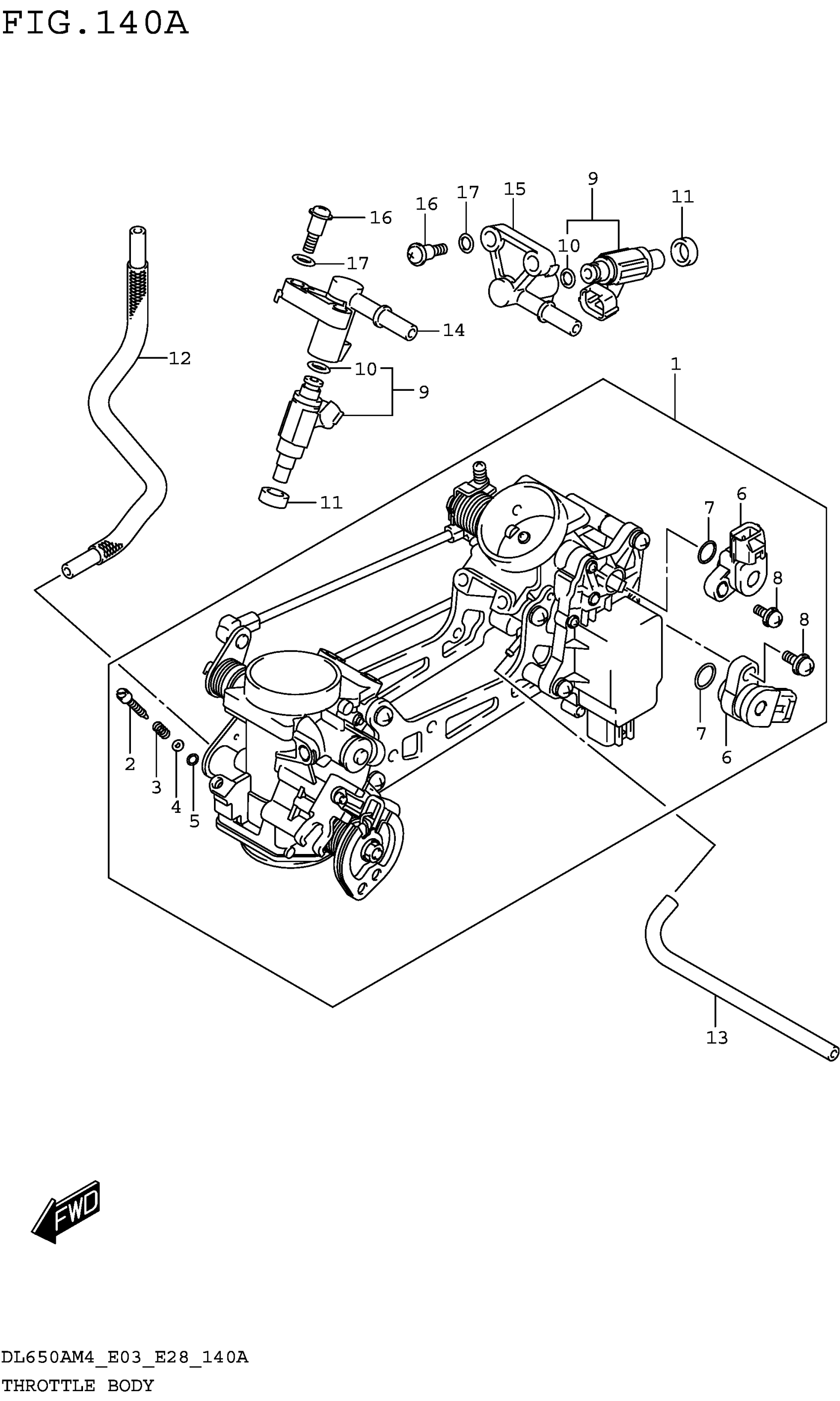

Suzuki DL650AM4 (2024) THROTTLE BODY (DL650AM4 E03) Diagram

#

Description
Price

1

BODY ASSY, THROTTLE

13405-28K00

$1,159.23

2

SCREW

13269-33E00

$11.10

3

SPRING,THROTTLE SCREW

13268-48700

$4.34

4

WASHER

13606-47A00

$3.28

5

O-RING

13295-29901

$4.34

6

.SENSOR

13580-27G21

$145.53

7

.O-RING

13575-29G01

$3.15

8

.SCREW

13605-02F00

$3.71

9

INJECTOR ASSY

15710-11J00

$271.53

10

.O-RING

15717-58B00

$9.95

11

SEAL

15722-29G00

$10.93

12

HOSE

13683-28K01

$26.05

13

HOSE

13683-44H11

$18.20

14

DELIVERY PIPE

15731-11J00

Unavailable

15

DELIVERY PIPE

15732-11J00

Unavailable

16

SCREW

13601-11J00

$4.79

17

PACKING

13602-29G01

$2.43

18

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | FIG.140B(1-B-13) THROTTLE BODY (DL650AM4 E28) FIG.140C(1-B-14) THROTTLE BODY (DL650AM4 E33) FIG.140D(1-C-2 ) THROTTLE BODY (DL650XAM4 E03) FIG.140E(1-C-3 ) THROTTLE BODY (DL650XAM4 E28) FIG.140F(1-C-4 ) THROTTLE BODY (DL650XAM4 E33)

SPECIAL NOTE

Unavailable
