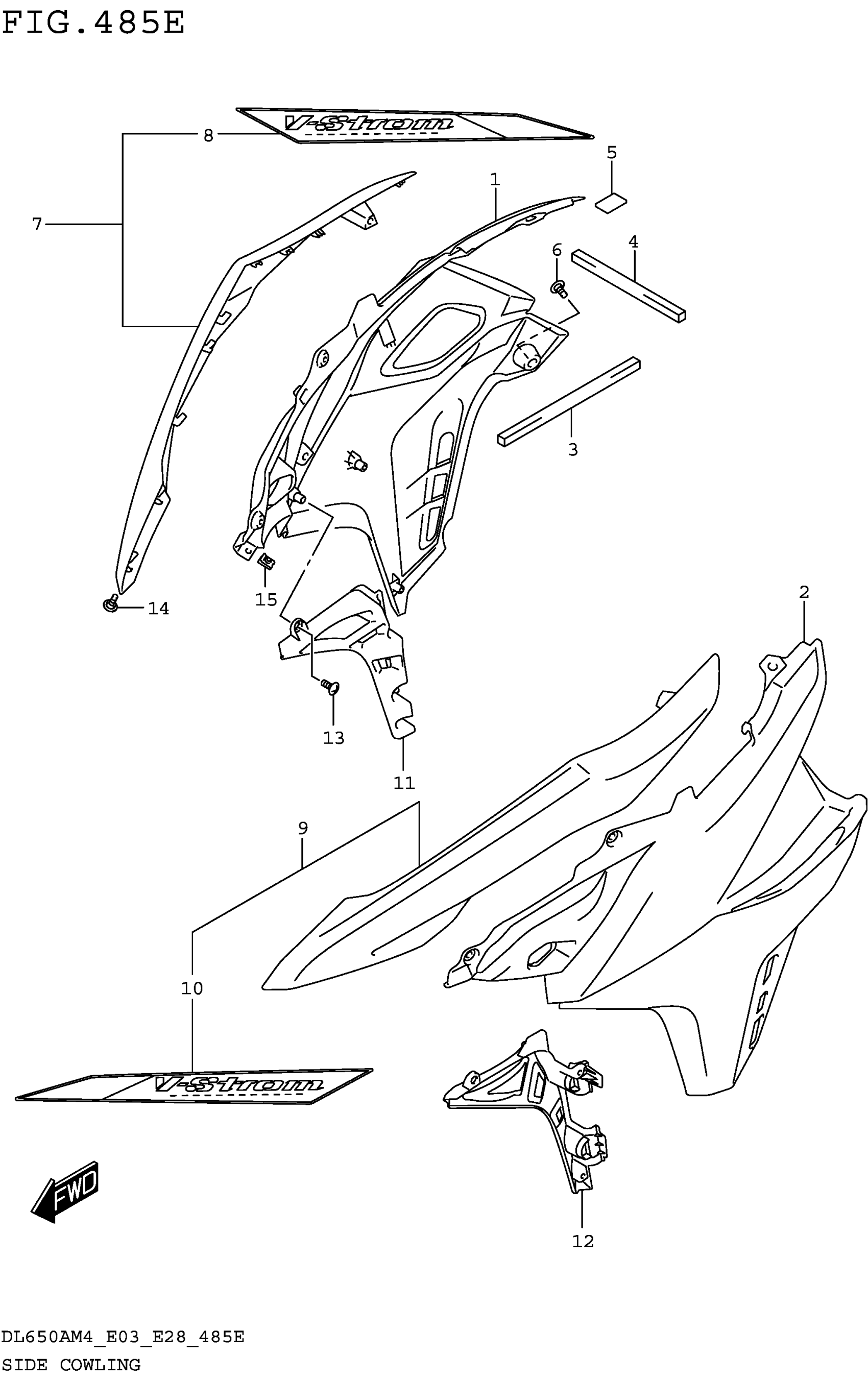

Suzuki DL650AM4 (2024) SIDE COWLING (DL650XAM4 E28) Diagram

#

Description
Price

1

COVER, SIDE COWL RH

94413-28K00

$106.28

2

COVER, SIDE COWL LH

94414-28K00

$111.40

3

CUSHION (5X120X6)

44176-31J00

$2.75

4

CUSHION

44178-31J00

$2.87

5

CUSHION | CUT AS REQUIRED This part replaces 47829-10F00.

44612-13600

$4.65

6

SCREW (6X12)

47913-31J00

$2.42

7-1

COVER, SIDE COWL RH (BLUE) | FOR JWN

94420-28K90-YKY

$84.38

7-2

COVER, SIDE COWL RH (YELLOW) | FOR YU1

94420-28K90-YU1

$84.38

7-3

COVER, SIDE COWL RH (BLACK) | FOR YVB

94420-28K90-YVB

$84.38

8-1

.TAPE, COVER SIDE RH | FOR JWN

68275-28K90-CGN

$21.53

8-2

.TAPE, COVER SIDE RH | (BLUE/YELLOW) FOR YU1

68275-28K90-CQP

$21.53

8-3

.TAPE, COVER SIDE RH | FOR YVB

68275-28K90-CQQ

$21.53

9-1

COVER, SIDE COWL LH (BLUE) | FOR JWN

94430-28K90-YKY

$85.98

9-2

COVER, SIDE COWL LH (YELLOW) | FOR YU1

94430-28K90-YU1

$85.98

9-3

COVER, SIDE COWL LH (BLACK) | FOR YVB

94430-28K90-YVB

$85.98

10-1

.TAPE, COVER SIDE LH | FOR JWN

68285-28K90-CGN

$21.53

10-2

.TAPE, COVER SIDE LH | (BLUE/YELLOW) FOR YU1

68285-28K90-CQP

$21.53

10-3

.TAPE, COVER SIDE LH | FOR YVB

68285-28K90-CQQ

$21.53

11

COVER, SIDE COWL INNER RH

94461-28K00

$14.45

12

COVER, SIDE COWL INNER LH

94462-28K00

$14.18

13

SCREW

03541-0512A

$1.49

14

SCREW (5X13)

09139-05091

$2.03

15

NUT (M5)

09148-05052

$3.37
