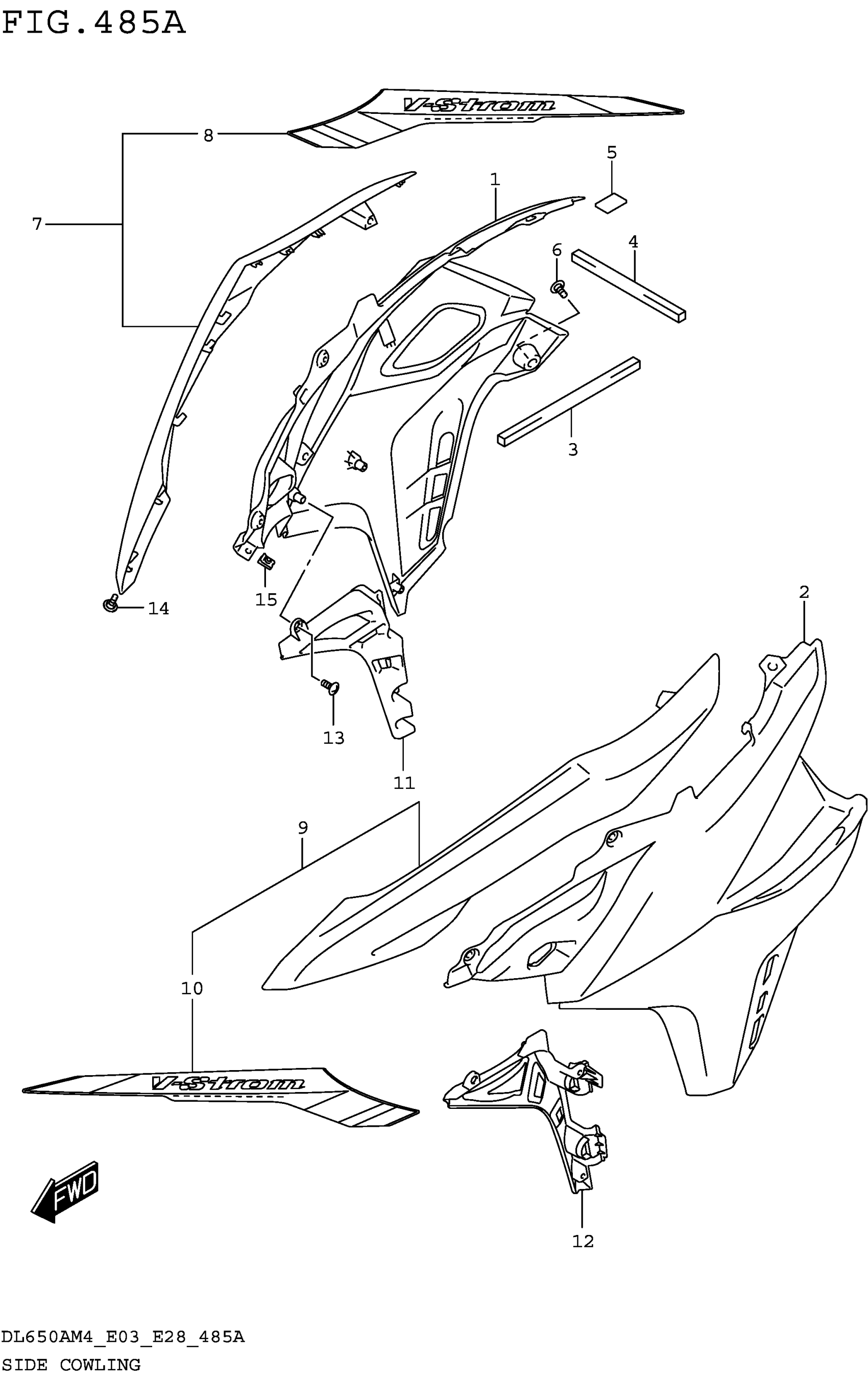

Suzuki DL650AM4 (2024) SIDE COWLING (DL650AM4 E03) Diagram

#

Description
Price

1

COVER, SIDE COWL RH

94413-28K00

$106.28

2

COVER, SIDE COWL LH

94414-28K00

$111.40

3

CUSHION (5X120X6)

44176-31J00

$2.75

4

CUSHION

44178-31J00

$2.87

5

CUSHION | CUT AS REQUIRED This part replaces 47829-10F00.

44612-13600

$4.65

6

SCREW (6X12)

47913-31J00

$2.42

7-1

COVER, SIDE COWL RH (BLUE)

94420-28KA0-YKY

$91.05

7-2

COVER, SIDE COWL RH (GRAY)

94420-28KA0-YUD

$91.05

7-3

COVER, SIDE COWL RH (BLACK)

94420-28KA0-YVB

$91.05

8-1

.TAPE, COVER SIDE RH | FOR YKY

68275-28KA0-BUA

$29.48

8-2

.TAPE, COVER SIDE RH | FOR YVB

68275-28KA0-CHP

$29.48

8-3

.TAPE, COVER SIDE RH | FOR YUD

68275-28KA0-CQR

$29.48

9-1

COVER, SIDE COWL LH (BLUE)

94430-28KA0-YKY

$92.77

9-2

COVER, SIDE COWL LH (GRAY)

94430-28KA0-YUD

$92.77

9-3

COVER, SIDE COWL LH (BLACK)

94430-28KA0-YVB

$92.77

10-1

.TAPE, COVER SIDE LH | FOR YKY

68285-28KA0-BUA

$29.48

10-2

.TAPE, COVER SIDE LH | FOR YVB

68285-28KA0-CHP

$29.48

10-3

.TAPE, COVER SIDE LH | FOR YUD

68285-28KA0-CQR

$29.48

11

COVER, SIDE COWL INNER RH

94461-28K00

$14.45

12

COVER, SIDE COWL INNER LH

94462-28K00

$14.18

13

SCREW

03541-0512A

$1.49

14

SCREW (5X13)

09139-05091

$2.03

15

NUT (M5)

09148-05052

$3.37

16

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | FIG.485B(1-J-9 ) SIDE COWLING (DL650AM4 E28) FIG.485C(1-J-10) SIDE COWLING (DL650AM4 E33) FIG.485D(1-J-11) SIDE COWLING (DL650XAM4 E03) FIG.485E(1-J-12) SIDE COWLING (DL650XAM4 E28) FIG.485F(1-J-13) SIDE COWLING (DL650XAM4 E33)

SPECIAL NOTE

Unavailable
