Description

Price

1

HUB, RR

64111-11J00

$519.12

2-1

RIM, RR WHEEL (17M/CXMT4.00) | FOR YU1,YVB

65311-28K10

$498.65

2-2

RIM, RR WHEEL (17M/CXMT4.00) | FOR JWN

65311-28K20

$678.17

3

SPOKE, REAR WHEEL INNER

65321-11J01

$6.85

4

SPOKE, REAR WHEEL OUTER

65322-11J01

$6.85

5

NIPPLE, WHEEL

55326-11J00

$5.15

6

ABSORBER, RR HUB SHOCK

64651-35F10

$11.82

7

RING, SPEED SENSOR (50T)

54162-28K00

$57.53

8

BOLT

07130-0512A

$2.19

9

SPACER (20.8X27.2X124)

09180-20112

$37.45

10

BEARING

08123-6204B

$17.41

11

SEAL,OIL (27X47X7)

09285-28004

$12.49

12

DISC, RR BRAKE

69211-06G10

$324.48

13

BOLT (8X21)

09106-08160

$3.57

14

SPACER, RR AXLE RH

64741-10F00

$20.76

15

DRUM, RR SPROCKET

64610-35F40

$311.15

16

AXLE, RR

64711-03F00

$135.48

17

RETAINER, RR SPROCKET DRUM

64733-06G00

$32.43

18

SPACER, RR AXLE LH

64751-27G00

$30.70

19

NUT

09159-18007

$19.68

20

BEARING (32X65X17)

09262-32024

$39.40

21

SEAL,OIL (39X65X7)

09285-39001

$10.62

22

SPROCKET, RR (47T-525)

64511-27G00

$83.38

23

NUT

08319-3110A

$2.73

24

WASHER (19X32X3.2)

09160-19025

$4.78

25

TIRE, REAR

65110-28K01

Unavailable

26

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

27

WEIGHT,WHEEL BALANCE (5GRAM)

55411-11J00

$5.38

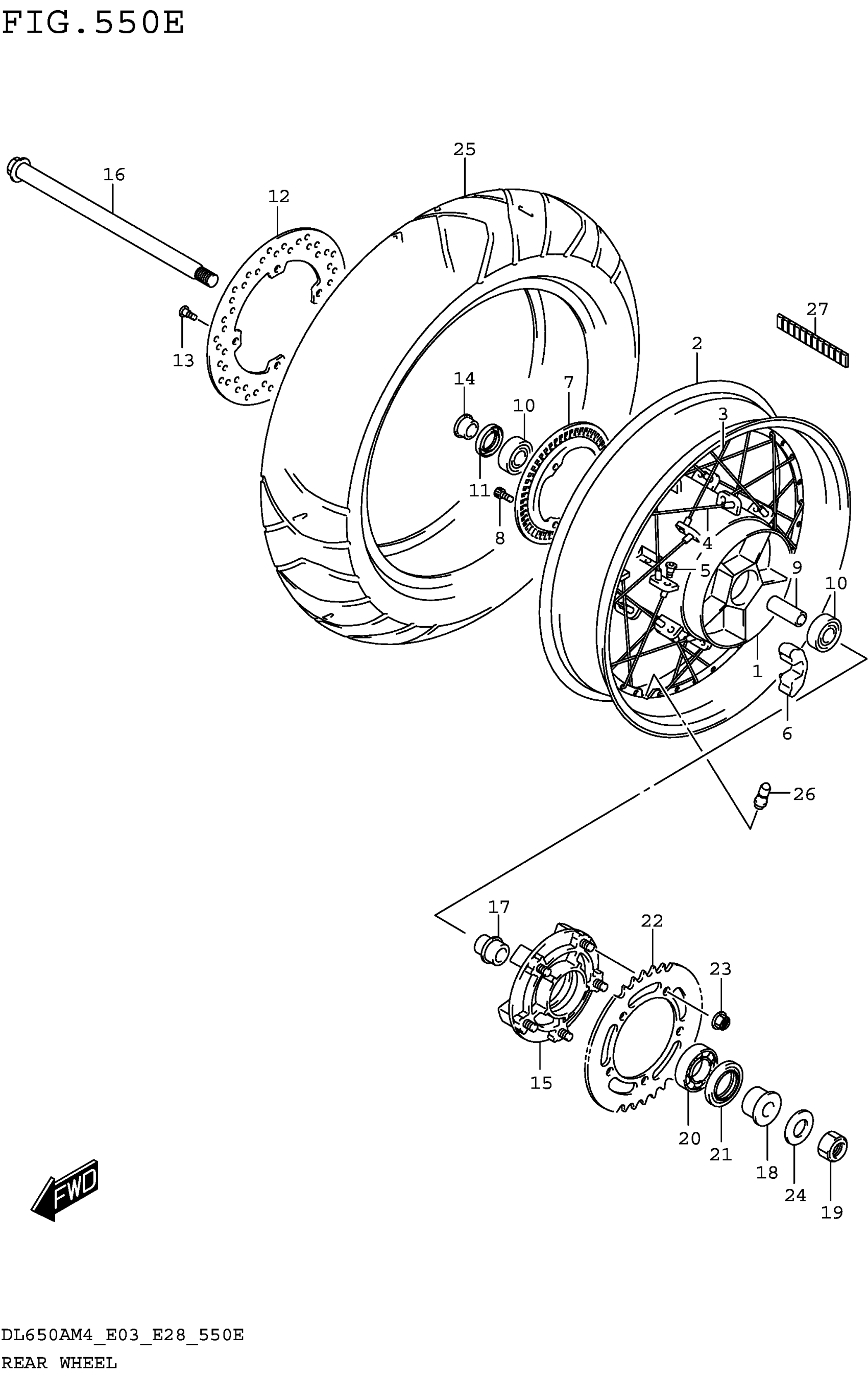

Suzuki DL650AM4 (2024) REAR WHEEL (DL650XAM4 E28) Diagram
