Description

Price

1

WHEEL, REAR (17M/CXMT4.00) | (BLACK)

64111-28K00-019

$601.25

2

DISC, RR BRAKE

69211-06G10

$324.48

3

BOLT (8X21)

09106-08160

$3.57

4

SPACER, RR AXLE RH

64741-10F00

$20.76

5

DRUM, RR SPROCKET

64610-35F40

$311.15

6

ABSORBER, RR HUB SHOCK

64651-35F10

$11.82

7

RING, SPEED SENSOR (50T)

54162-28K00

$57.53

8

BOLT

07130-0512A

$2.19

9

AXLE, RR

64711-03F00

$135.48

10

RETAINER, RR SPROCKET DRUM

64733-06G00

$32.43

11

SPACER, RR AXLE LH

64751-27G00

$30.70

12

NUT

09159-18007

$19.68

13

SPACER (20.8X27.2X124)

09180-20112

$37.45

14

BEARING (32X65X17)

09262-32024

$39.40

15

SEAL,OIL (39X65X7)

09285-39001

$10.62

16

BEARING

08123-6204B

$17.41

17

SEAL,OIL (27X47X7)

09285-28004

$12.49

18

SPROCKET, RR (47T-525)

64511-27G00

$83.38

19

NUT

08319-3110A

$2.73

20

WASHER (19X32X3.2)

09160-19025

$4.78

21

TIRE, REAR | BATTLAX ADVENTURE A40R F, BRIDGESTONE

65110-28K01

Unavailable

22

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

23-1

BALANCER,WHEEL (10G)

55411-22H00

$8.60

23-2

BALANCER,WHEEL (20G)

55412-22H00

$10.07

23-3

BALANCER,WHEEL (30G)

55413-22H00

$11.47

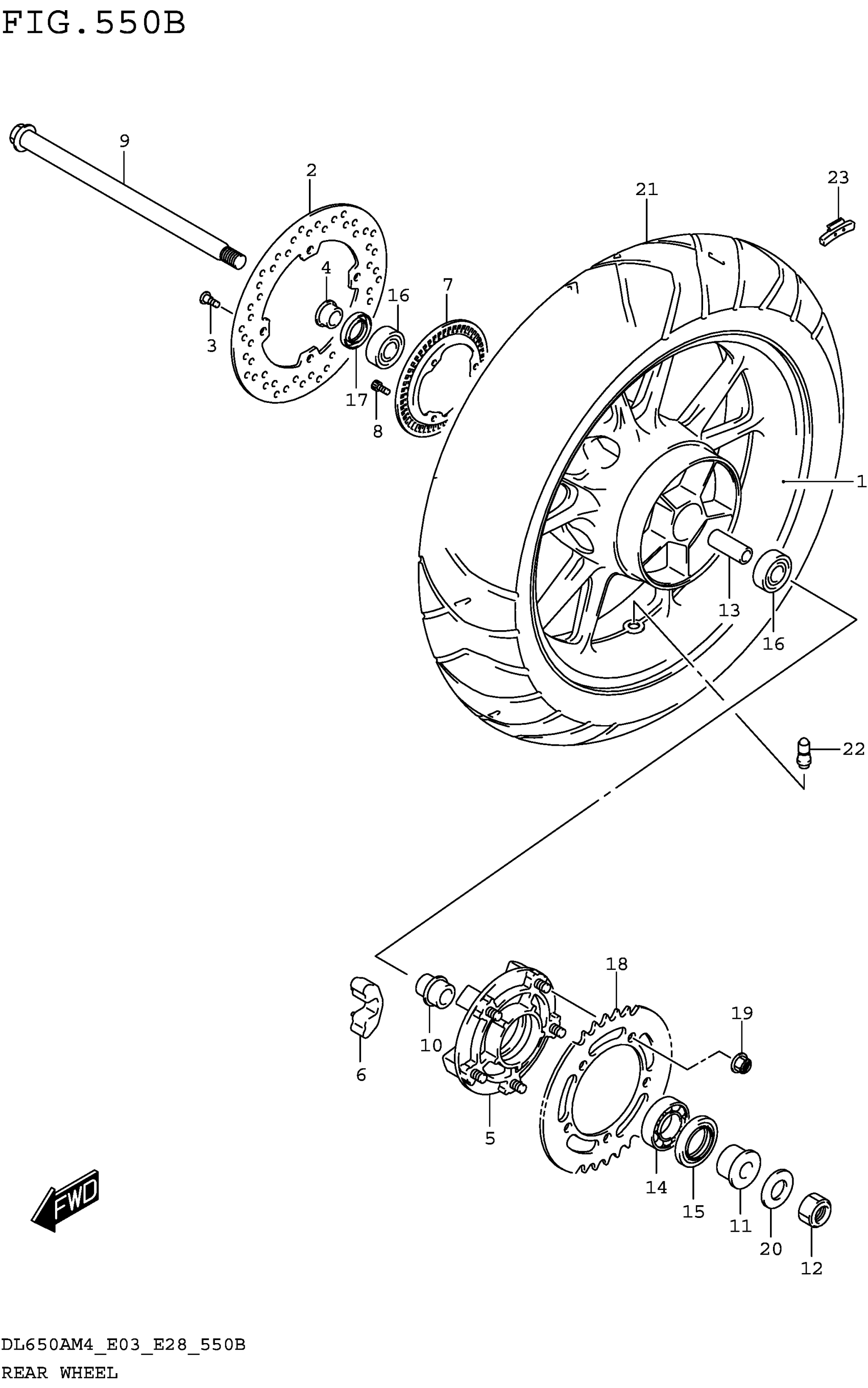

Suzuki DL650AM4 (2024) REAR WHEEL (DL650AM4 E28) Diagram
