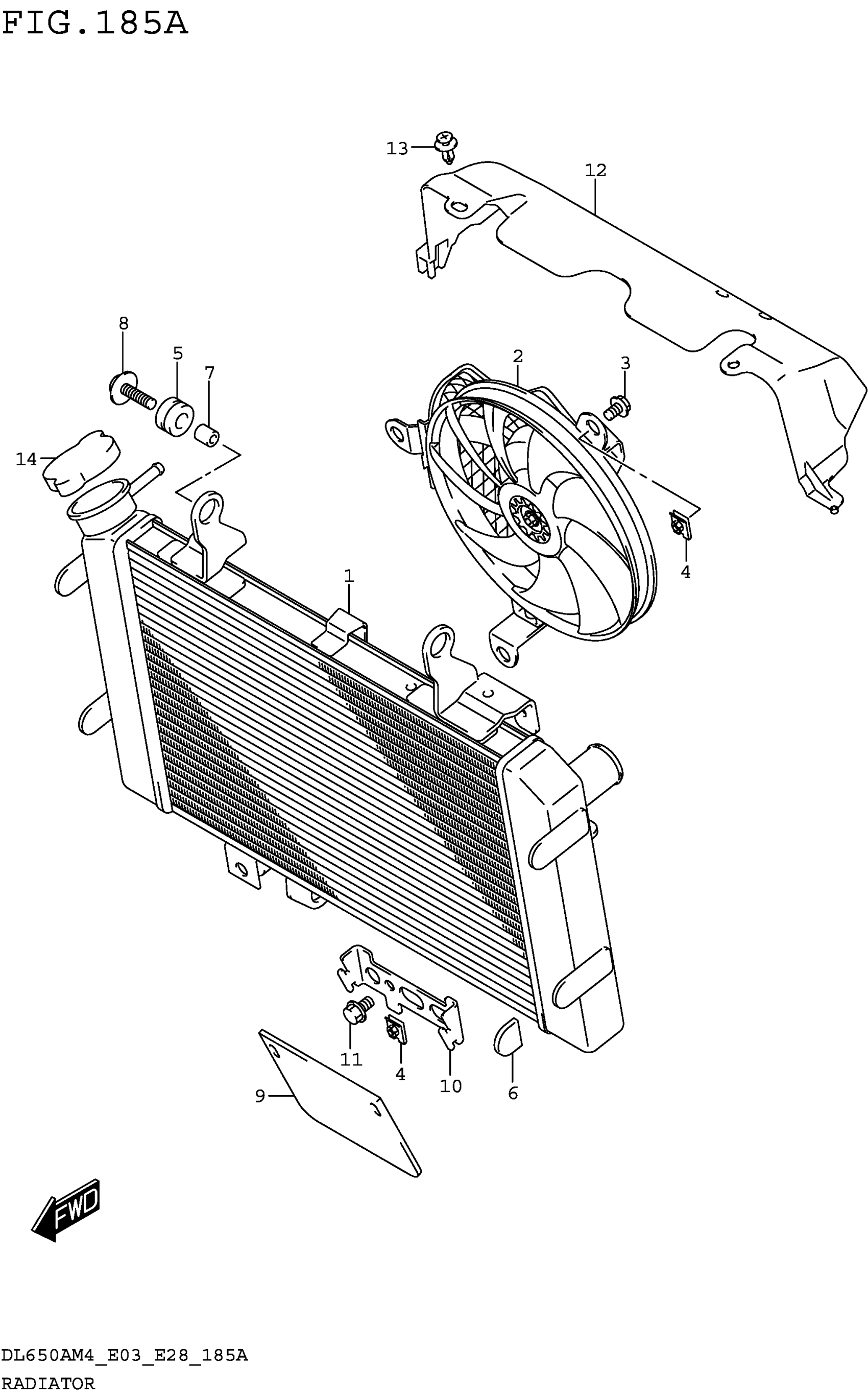

Suzuki DL650AM4 (2024) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY, WATER

17710-11J00

$998.62

2

FAN ASSY, RADIATOR

17800-11J00

$684.20

3

BOLT, FAN ASSY

17711-08J00

$4.73

4

NUT, FAN ASSY

17712-40F00

$4.68

5

CUSHION

09320-10501

$6.23

6

CUSHION

09329-18001

$1.91

7

SPACER (6.5X10X10)

09180-06310

$1.91

8

BOLT (6X25)

09118-06097

$2.50

9

RUBBER,RADIATOR UNDER

17781-17G00

$9.90

10

BRACKET,RDTR UNDER RUBBER

17741-17G00

$5.77

11

BOLT

01550-0612A

$1.97

12

SHIELD, RADIATOR HEAT

17771-11J00

$38.50

13

CLIP (5.9X20.5,BLACK)

09409-06322-5PK

$3.10

14

CAP,RADIATOR (1.1)

17730-08J00

$42.50
