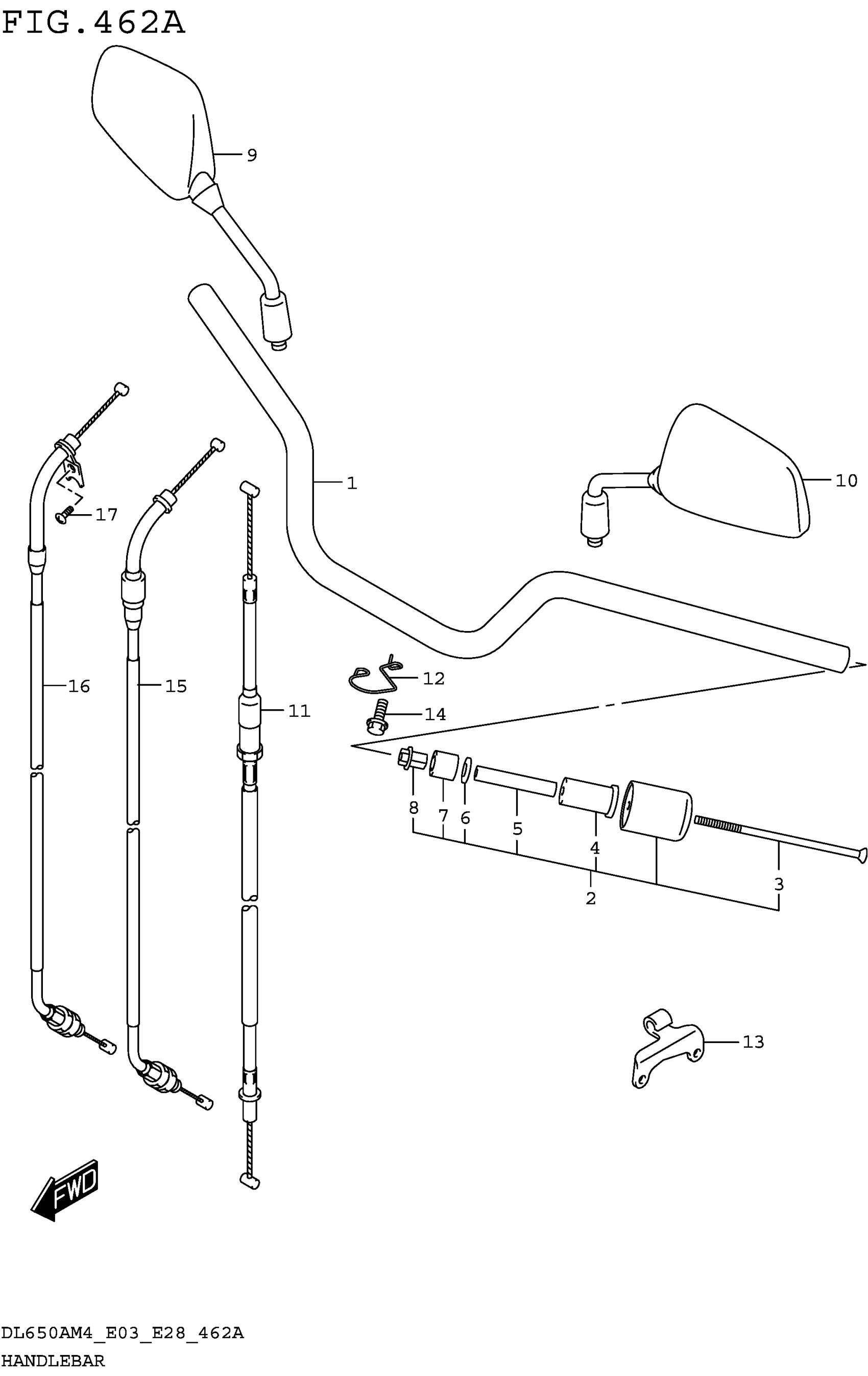

Suzuki DL650AM4 (2024) HANDLEBAR (DL650AM4 E03) Diagram

#

Description
Price

1

HANDLEBAR (SILVER)

56111-28K00-YUS

$106.72

2

BALANCER SET, HANDLEBAR

56200-16843

$36.13

3

.SCREW (6X110)

09127-06018

$3.38

4

.EXPANDER,HANDLE BALANCER

56272-06G00

$8.13

5

.SPACER,EXPANDER

56276-17D00

$5.07

6

.WASHER (6.5X16X4)

09160-06131

$2.50

7

.EXPANDER,HANDLE BALANCER

56272-10G01

$4.72

8

.NUT,HANDLE BALANCER

56273-10G10

$8.65

9

MIRROR ASSY, RR VIEW RH

56500-04F30

$124.58

10

MIRROR ASSY, RR VIEW LH

56600-04F30

$123.98

11

CABLE ASSY, CLUTCH

58200-11J00

$50.35

12

GUIDE, CLUTCH CABLE

58631-11J10

Unavailable

13

STOPPER,CLUTCH CABLE

58634-44H00

$15.42

14

BOLT

01547-0612A

$2.03

15

CABLE ASSY, THROTTLE NO.1

58300-11J01

$39.70

16

CABLE ASSY, THROTTLE NO.2

58300-11J11

$38.05

17

SCREW (5X10)

09125-05042

$1.96

18

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | FIG.462B(1-H-10) HANDLEBAR (DL650AM4 E28) FIG.462C(1-H-11) HANDLEBAR (DL650AM4 E33) FIG.462D(1-H-12) HANDLEBAR (DL650XAM4 E03) FIG.462E(1-H-13) HANDLEBAR (DL650XAM4 E28) FIG.462F(1-H-14) HANDLEBAR (DL650XAM4 E33)

SPECIAL NOTE

Unavailable
