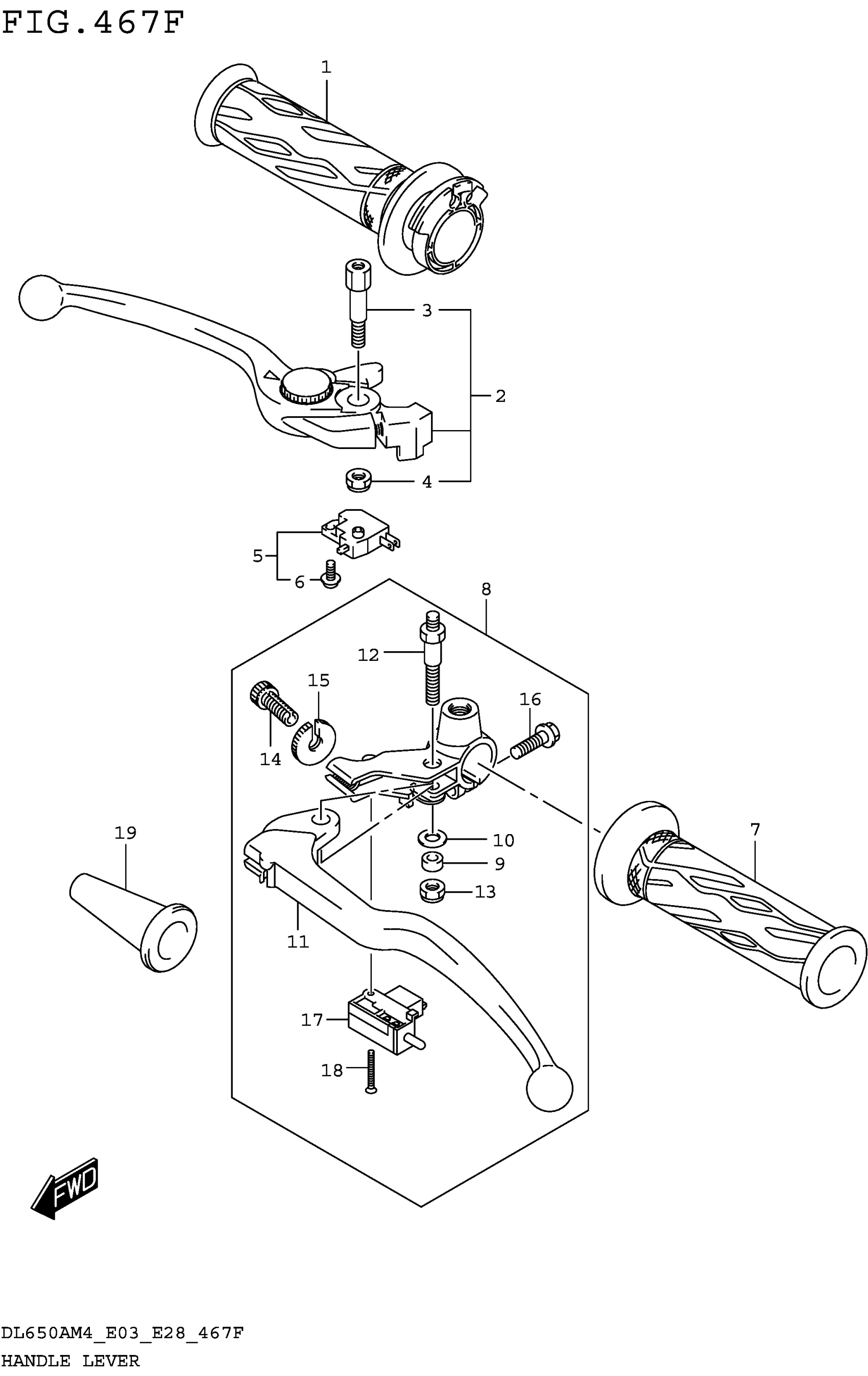

Suzuki DL650AM4 (2024) HANDLE LEVER (DL650XAM4 E33) Diagram

#

Description
Price

1

GRIP,THROTTLE

57110-21H02

$20.33

2

LEVER ASSY, BRAKE

57300-06G20

$84.25

3

.BOLT, BRAKE LEVER PIVOT

57431-06GA0

$22.78

4

.NUT

08319-2106A

$1.91

5

SWITCH ASSY,FR BRAKE

57460-14J02

$38.46

6

.SCREW,WITH WASHER (4X12)

57465-17C00

$2.19

7

GRIP,L

57211-21H01

$11.13

8

LEVER ASSY, CLUTCH

57500-25D22

$58.52

9

.SPACER

09180-06346

$2.16

10

WASHER

08322-0106B

$2.26

11

LEVER ASSY, CLUTCH This part replaces 57621-33E01.

57621-40F00

$18.77

12

.BOLT, CLUTCH LEVER PIVOT

57531-10D20

$34.27

13

.NUT

08319-2106A

$1.91

14

.ADJUSTER, WIRE

57441-45C01

$9.05

15

.NUT, LOCK

57442-45C01

$8.41

16

..BOLT

01547-0620B

$2.45

17

.SWITCH,CLUTCH

57560-05A00

$12.15

18

.SCREW,CLUTCH SWITCH

57562-41G01

$9.58

19

BOOT, CLUTCH CABLE

58273-31001

$2.22
