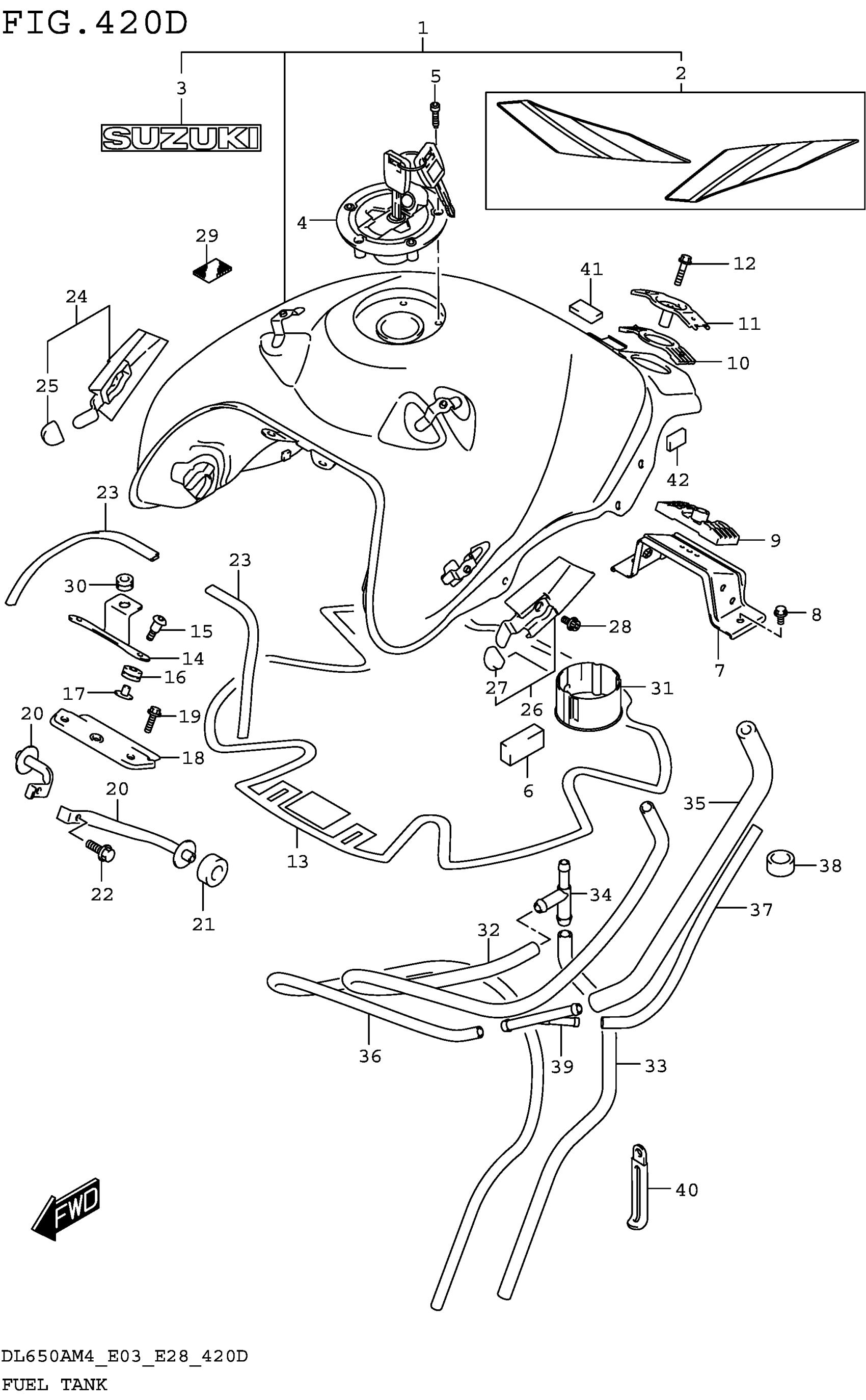

Suzuki DL650AM4 (2024) FUEL TANK (DL650XAM4 E03) Diagram

#

Description
Price

1-1

TANK ASSY, FUEL (WHITE) | FOR JWN

44100-28KJ0-YUH

$949.30

1-2

TANK ASSY, FUEL (YELLOW) | FOR YU1

44100-28KJ0-YU1

$949.30

1-3

TANK ASSY, FUEL (BLACK) | FOR YVB

44100-28KJ0-YVB

$949.30

2-1

.TAPE SET, FUEL TANK | FOR JWN

68110-28K40-CGN

$40.98

2-2

.TAPE SET, FUEL TANK | (BLUE/YELLOW) FOR YU1

68110-28K40-CQP

$40.98

2-3

.TAPE SET, FUEL TANK | FOR YVB

68110-28K40-CQQ

$40.98

3-1

.EMBLEM (GRAY) | FOR YVB

68111-47C10-YLF

$15.37

3-2

.EMBLEM (BLACK) | FOR JWN,YU1

68111-47C10-019

$22.97

4

CAP SET,FUEL TANK FILLER

44200-17840

$166.45

5

BOLT,FUEL TANK FILLER CAP

44244-11J00

$4.00

6

CUSHION, FUEL TANK SIDE

44541-28K00

$11.78

7

BRACKET, FUEL TANK RR

44550-06G10

Unavailable

8

BOLT (8X16)

01550-0816A

$2.32

9

CUSHION,FUEL TANK RR LWR

44545-06G00

$18.25

10

CUSHION,FUEL TANK RR UPR

44542-06G00

$16.78

11

BRACKET,FUEL TANK RR UP

44530-06G00

Unavailable

12

BOLT (8X35)

01550-0835A

$3.04

13

SHIELD, FUEL TANK CENTER

44194-11J00

$80.88

14

BRACKET, FR COVER

44154-11J00

$10.98

15

SCREW (6X25)

09139-06192

$3.23

16

CUSHION,FUEL TANK FRONT

44511-16G01

$4.11

17

SPACER,FUEL TANK FR

44512-16G00

$7.44

18

BRACKET, FUEL TANK FR

44520-11J00

Unavailable

19

BOLT

01550-0620B

$2.39

20

BRACKET, FR SIDE

44560-11J00

Unavailable

21

CUSHION,FRONT SIDE BRKT

44543-31J01

$5.00

22

BOLT

01550-0612A

$1.97

23

MOLDING, FUEL TANK

68241-11J01

$17.95

24

BRACKET, FUEL TANK COVER RH

44130-28K00

$12.18

25

CUSHION

09329-18001

$1.91

26

BRACKET, FUEL TANK COVER LH

44140-28K00

$12.18

27

CUSHION

09329-18001

$1.91

28

.BOLT

07120-0610A

$2.30

29

FASTENER,COWLING (20X15X0.8)

44572-37H00

$9.83

30

CUSHION (6X18X6)

09320-06504

$4.96

31

VESSEL, FUEL TANK INNER

44121-28K01

$11.90

32

HOSE, FUEL TANK DRAIN NO.1

44423-28K01

$17.87

33

HOSE, FUEL TANK DRAIN NO.2

44423-11J31

$4.67

34

3 WAY

09367-08005

$4.83

35

HOSE, FUEL TANK BRTHR NO.1

44424-28K00

$11.33

36

HOSE (5X8.2X690)

09352-50005-690

Unavailable

37

HOSE (5X8.2X160)

09352-50005-160

$3.33

38

HOSE (13.5X16.5X10)

09352-13162-010

Unavailable

39

3 WAY

09367-06007

$3.46

40

CLAMP (L:80)

09404-06030

Unavailable

41

CUSHION

45516-01H00

$5.32

42

CUSHION, FRAME COVER FR RR

47122-28K00

$5.73
