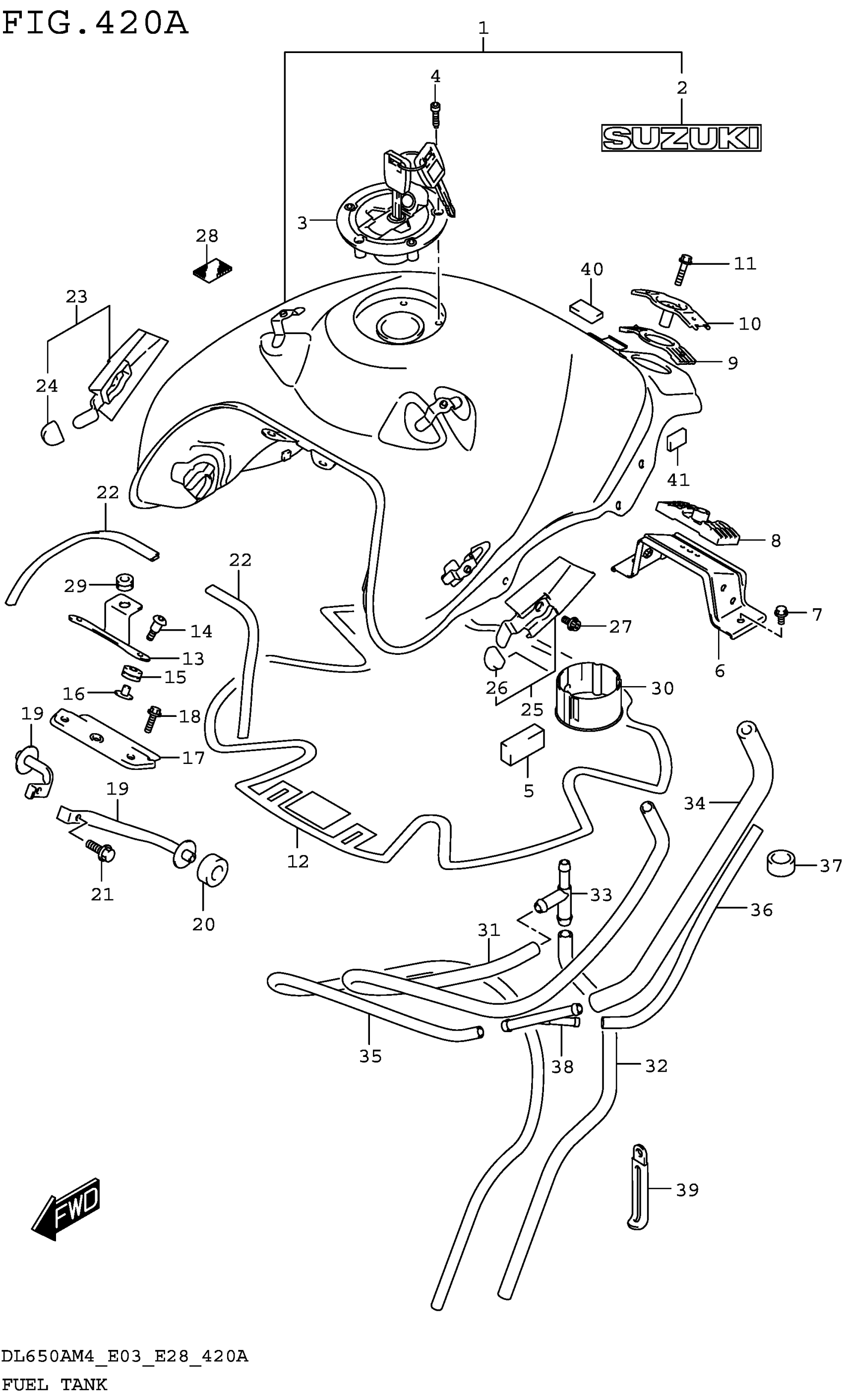

Suzuki DL650AM4 (2024) FUEL TANK (DL650AM4 E03) Diagram

#

Description
Price

1-1

TANK ASSY, FUEL (BLUE)

44100-28K30-YKY

$920.47

1-2

TANK ASSY, FUEL (GRAY)

44100-28K30-YUD

$920.47

1-3

TANK ASSY, FUEL (BLACK)

44100-28K30-YVB

$920.47

2-1

.EMBLEM,SUZUKI (SILVER) | FOR YKY

68111-47C10-YD8

$22.97

2-2

.EMBLEM (GRAY) | FOR YVB

68111-47C10-YLF

$15.37

2-3

.EMBLEM (BLACK) | FOR YUD

68111-47C10-019

$22.97

3

CAP SET,FUEL TANK FILLER

44200-17840

$166.45

4

BOLT,FUEL TANK FILLER CAP

44244-11J00

$4.00

5

CUSHION, FUEL TANK SIDE

44541-28K00

$11.78

6

BRACKET, FUEL TANK RR

44550-06G10

Unavailable

7

BOLT (8X16)

01550-0816A

$2.32

8

CUSHION,FUEL TANK RR LWR

44545-06G00

$18.25

9

CUSHION,FUEL TANK RR UPR

44542-06G00

$16.78

10

BRACKET,FUEL TANK RR UP

44530-06G00

Unavailable

11

BOLT (8X35)

01550-0835A

$3.04

12

SHIELD, FUEL TANK CENTER

44194-11J00

$80.88

13

BRACKET, FR COVER

44154-11J00

$10.98

14

SCREW (6X25)

09139-06192

$3.23

15

CUSHION,FUEL TANK FRONT

44511-16G01

$4.11

16

SPACER,FUEL TANK FR

44512-16G00

$7.44

17

BRACKET, FUEL TANK FR

44520-11J00

Unavailable

18

BOLT

01550-0620B

$2.39

19

BRACKET, FR SIDE

44560-11J00

Unavailable

20

CUSHION,FRONT SIDE BRKT

44543-31J01

$5.00

21

BOLT

01550-0612A

$1.97

22

MOLDING, FUEL TANK

68241-11J01

$17.95

23

BRACKET, FUEL TANK COVER RH

44130-28K00

$12.18

24

CUSHION

09329-18001

$1.91

25

BRACKET, FUEL TANK COVER LH

44140-28K00

$12.18

26

CUSHION

09329-18001

$1.91

27

.BOLT

07120-0610A

$2.30

28

FASTENER,COWLING (20X15X0.8)

44572-37H00

$9.83

29

CUSHION (6X18X6)

09320-06504

$4.96

30

VESSEL, FUEL TANK INNER

44121-28K01

$11.90

31

HOSE, FUEL TANK DRAIN NO.1

44423-28K01

$17.87

32

HOSE, FUEL TANK DRAIN NO.2

44423-11J31

$4.67

33

3 WAY

09367-08005

$4.83

34

HOSE, FUEL TANK BRTHR NO.1

44424-28K00

$11.33

35

HOSE (5X8.2X690)

09352-50005-690

Unavailable

36

HOSE (5X8.2X160)

09352-50005-160

$3.33

37

HOSE (13.5X16.5X10)

09352-13162-010

Unavailable

38

3 WAY

09367-06007

$3.46

39

CLAMP (L:80)

09404-06030

Unavailable

40

CUSHION

45516-01H00

$5.32

41

CUSHION, FRAME COVER FR RR

47122-28K00

$5.73

42

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | FIG.420B(1-G-2 ) FUEL TANK (DL650AM4 E28) FIG.420C(1-G-4 ) FUEL TANK (DL650AM4 E33) FIG.420D(1-G-6 ) FUEL TANK (DL650XAM4 E03) FIG.420E(1-G-8 ) FUEL TANK (DL650XAM4 E28) FIG.420F(1-G-10) FUEL TANK (DL650XAM4 E33)

SPECIAL NOTE

Unavailable
