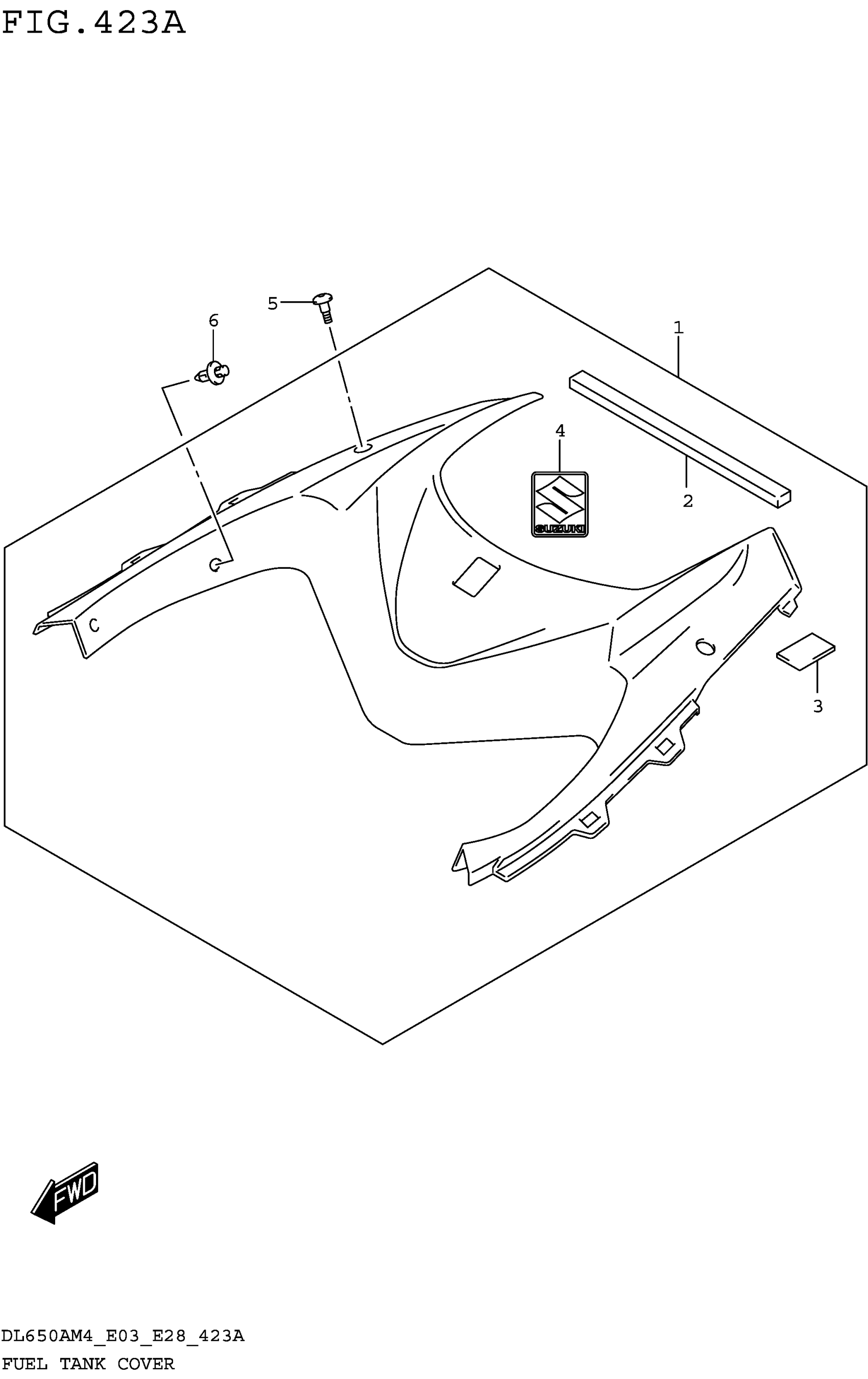

Suzuki DL650AM4 (2024) FUEL TANK COVER (DL650AM4 E03) Diagram

#

Description

Price

1

COVER, FUEL TANK FRONT

44190-28K00

$37.52

2

.RUBBER, FUEL TANK FR

44261-22A00

$3.87

3

FASTENER (33X25X2.6)

44572-13G00

$11.07

4

EMBLEM,S

68281-47HA0

$7.77

5

SCREW

09139-06212

$2.97

6

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

7

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | FIG.423B(1-G-13) FUEL TANK COVER (DL650AM4 E28) FIG.423C(1-G-14) FUEL TANK COVER (DL650AM4 E33) FIG.423D(1-H-2 ) FUEL TANK COVER (DL650XAM4 E03) FIG.423E(1-H-3 ) FUEL TANK COVER (DL650XAM4 E28) FIG.423F(1-H-4 ) FUEL TANK COVER (DL650XAM4 E33)

SPECIAL NOTE

Unavailable
