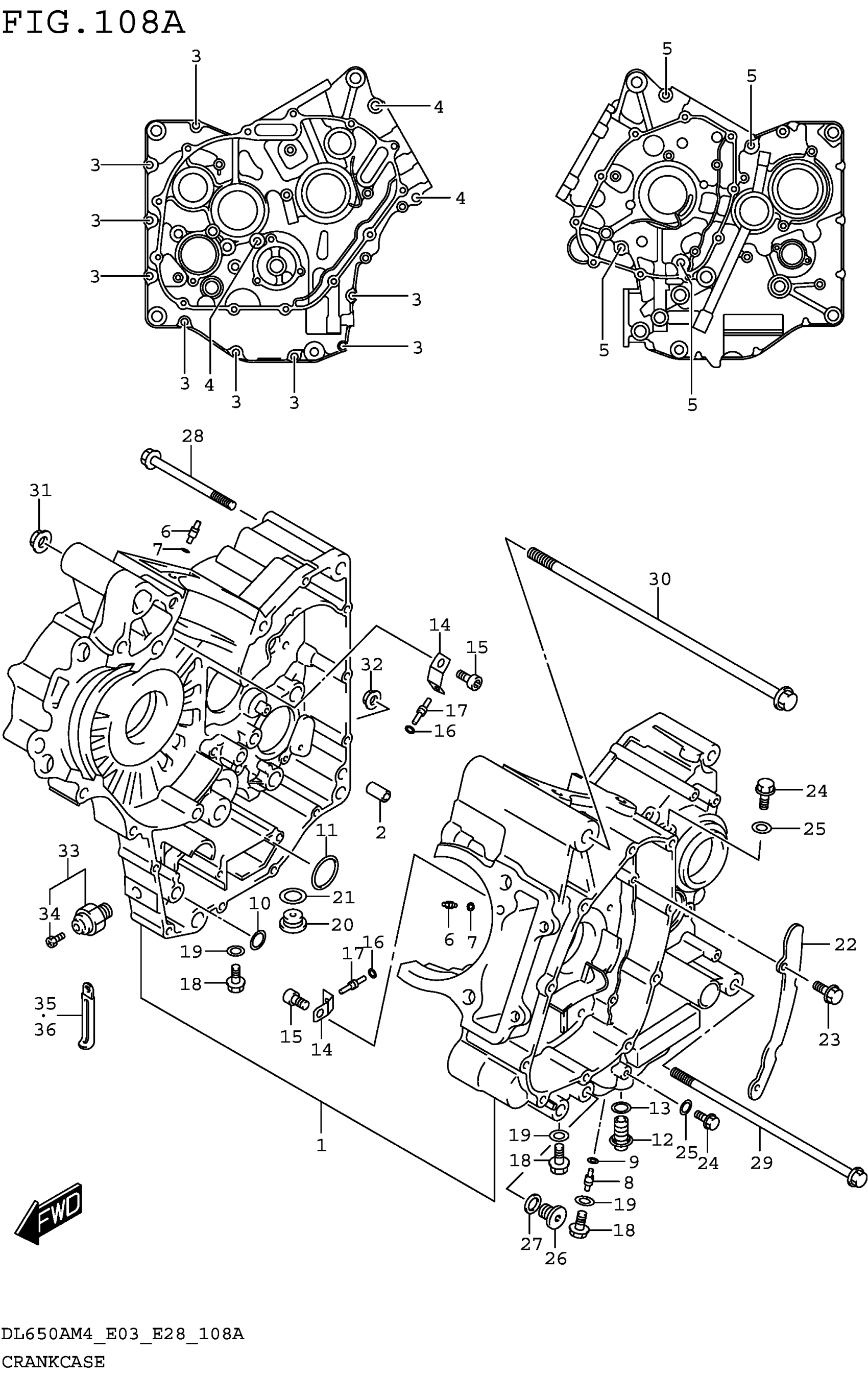

Suzuki DL650AM4 (2024) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11301-27890

$1,605.62

2

.PIN (8.4X11X20)

09206-11007

$2.37

3

BOLT

01547-0650A

$2.46

4

.BOLT

07120-0855A

$4.32

5

.BOLT

07120-0880A

$4.77

6

JET (14)

09493-28010

$16.57

7

O-RING (D:1.2,ID:4)

09280-04004

$1.91

8

JET (18)

09493-36004

$16.87

9

O-RING (D:1.2,ID:4)

09280-04004

$1.91

10

O RING (D:1.9,ID:12.6) This part replaces 09280-13007.

09280-12009

$3.18

11

O-RING (D:2.4,ID:15.8)

09280-15007

$1.70

12

PLUG (12X20) | OIL DRAIN

09247-12011

$4.64

13

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

14

PLATE,PISTON COOLING JET

16438-19F00

Unavailable

15

BOLT (6X12)

09106-06075

$2.48

16

O-RING (D:1.2,ID:4)

09280-04004

$1.91

17

JET (13)

09493-26007

Unavailable

18

BOLT (8X12)

01550-0812A

$2.32

19

GASKET (8.2X14X1)

09168-08016

$1.65

20

PLUG (16X8)

09248-16012

$4.64

21

GASKET (16X22X2)

09168-16002

$1.91

22

PLATE,OIL SEPARATOR

11323-19F00

Unavailable

23

BOLT

01547-0612A

$2.03

24

BOLT

01547-0610A

$2.45

25

GASKET (5.8X13X1.2)

09168-06023

$2.35

26

PLUG (12X10)

09247-12006

$2.82

27

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

28

BOLT (10X225)

09103-10205

$19.52

29

BOLT (10X275)

09103-10347

$21.83

30

BOLT (12X310)

09103-12054

$25.67

31

NUT

09159-12056

$7.37

32

NUT

08319-3110A

$2.73

33

SWITCH ASSY,OIL PRESSURE

37820-33D11

$25.13

34

.BOLT,OIL PRESSURE SWITCH

37822-33D00

$4.35

35

CLAMP (L:45)

09404-06429

$1.83

36

CLAMP (L:80)

09404-06030

Unavailable
