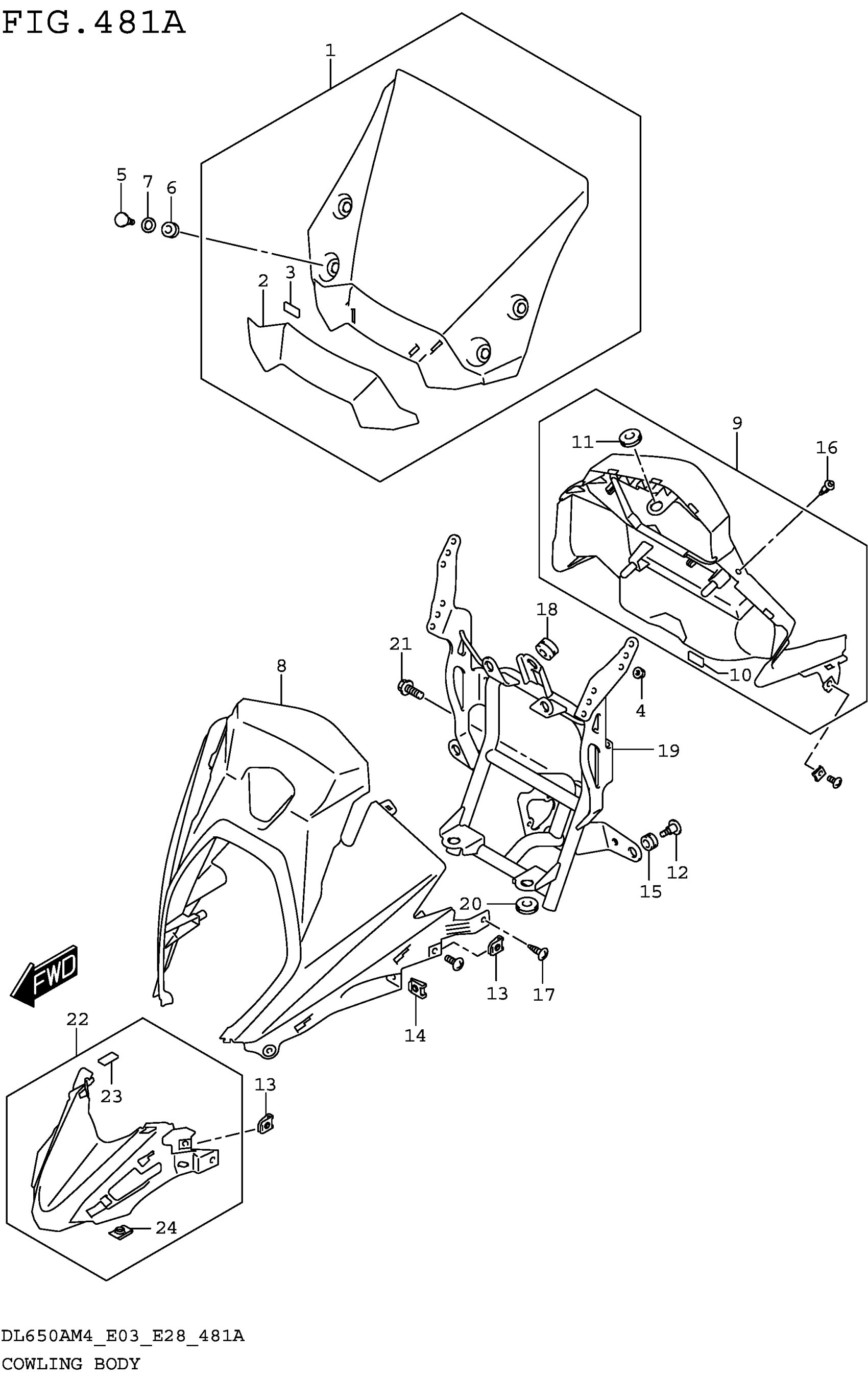

Suzuki DL650AM4 (2024) COWLING BODY (DL650AM4 E03) Diagram

#

Description
Price

1

WINDSCREEN

48410-28K00

$67.42

2

.COVER, WINDSCREEN

48412-28K00

$30.02

3

PAD (8X20X2)

73415-70A00

$1.56

4

CAP, WINDSCREEN SCREW

48414-31J00

$2.88

5

SCREW (6X20)

09139-06211

$3.44

6

CUSHION (9X18X9.5)

09320-09016

$1.97

7

WASHER

08322-0110B

$2.34

8

COWLING, BODY

94411-28K00

$148.20

9

PANEL, METER

94630-28K00

$33.50

10

PAD (8X20X2)

73415-70A00

$1.56

11

CUSHION (8X26X7)

09320-08028

$3.04

12

SCREW (6X20)

09139-06126

$4.04

13

NUT (M5)

09148-05038

$1.97

14

NUT

09148-06020

$4.38

15

CUSHION (9X18X9.5)

09320-09016

$1.97

16

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

17

SCREW

03541-0512A

$1.49

18

CUSHION,SPEEDOMETER

34189-08J01

$3.59

19

BRACE, COWLING

94510-28K00

$161.57

20

CUSHION (8X26X7)

09320-08028

$3.04

21

BOLT (8X20)

01550-0820A

$2.23

22-1

COWLING, BODY LOWER (ORANGE) | FOR YUD

94402-28K00-QRE

$70.52

22-2

COWLING, BODY LOWER (BLACK) | FOR YKY

94402-28K00-YKV

$84.72

22-3

COWLING, BODY LOWER (BLUE) | FOR YVB

94402-28K00-YKY

$90.32

23

PAD (8X20X2)

73415-70A00

$1.56

24

NUT (M5)

09148-05052

$3.37

25

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | FIG.481B(1-I-13) COWLING BODY (DL650AM4 E28) FIG.481C(1-I-14) COWLING BODY (DL650AM4 E33) FIG.481D(1-J-2 ) COWLING BODY (DL650XAM4 E03) FIG.481E(1-J-3 ) COWLING BODY (DL650XAM4 E28) FIG.481F(1-J-4 ) COWLING BODY (DL650XAM4 E33)

SPECIAL NOTE

Unavailable
