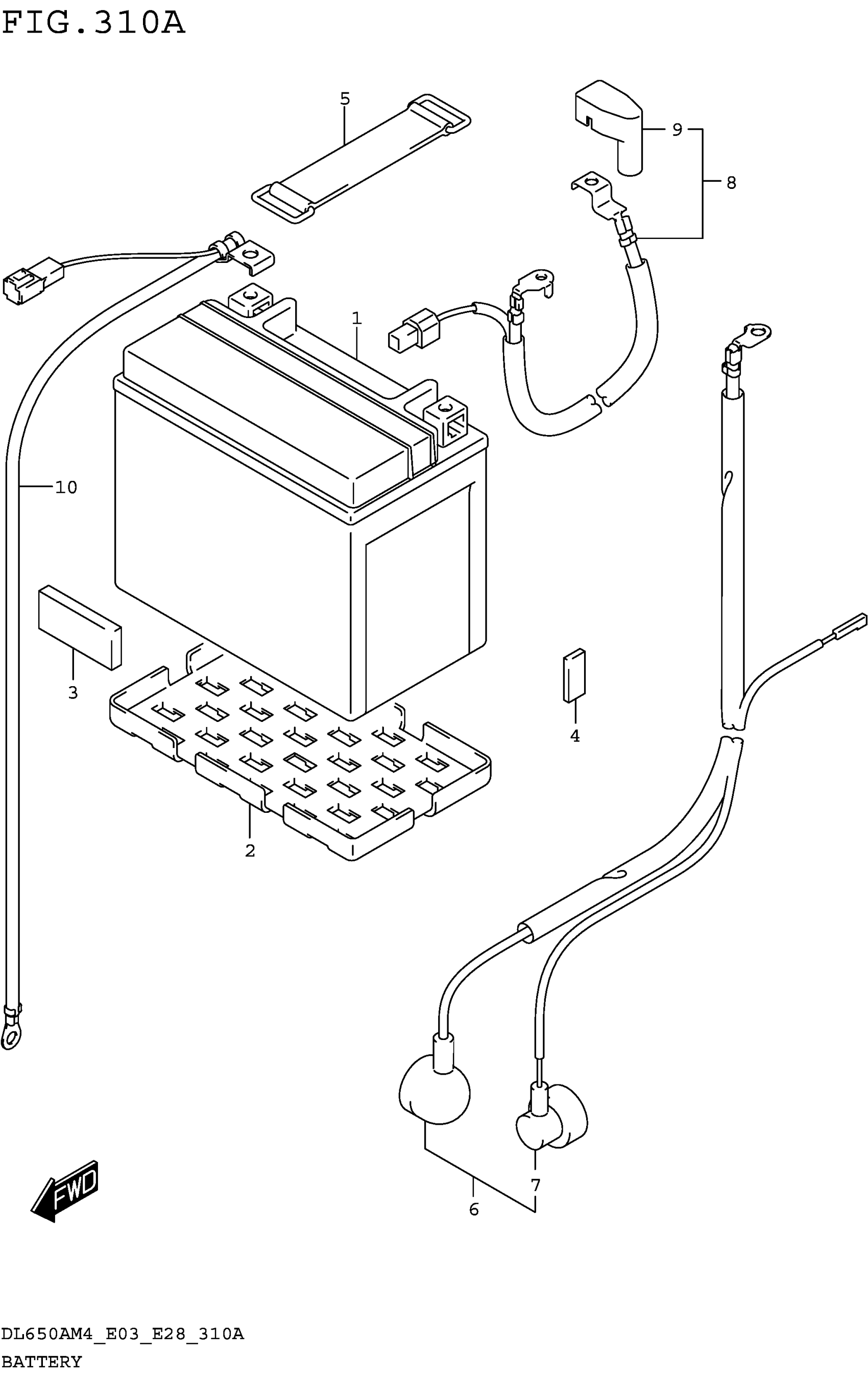

Suzuki DL650AM4 (2024) BATTERY Diagram

#

Description

Price

1

BATTERY (FTX12-BS,12V,10AH) | (FTX12-BS,12V10AH) This part replaces 33630-48E01.

33610-48E20

$98.67

2

PROTECTOR,BATTERY

33652-16G00

$11.95

3

CUSHION, REAR FENDER REAR | (70X100X6.0) CUT AS REQUIRED This part replaces 33652-08420.

33651-37000

$4.48

4

CUSHION, FUEL TANK NO.2 | (20X40X3.0) CUT AS REQUIRED

44543-10G00

$5.56

5

BAND

09462-00007

$4.11

6

WIRE, STARTER MOTOR LEAD

33810-28K00

$54.30

7

.CAP,OIL PRESSURE SWITCH

36618-31J00

Unavailable

8

WIRE, BATTERY PLUS LEAD (+)

33820-28K00

$55.22

9

.CAP, BATTERY PLUS LEAD (+)

33624-27G00

$9.90

10

WIRE, BATTERY MINUS (-)

33860-28K10

$34.30
