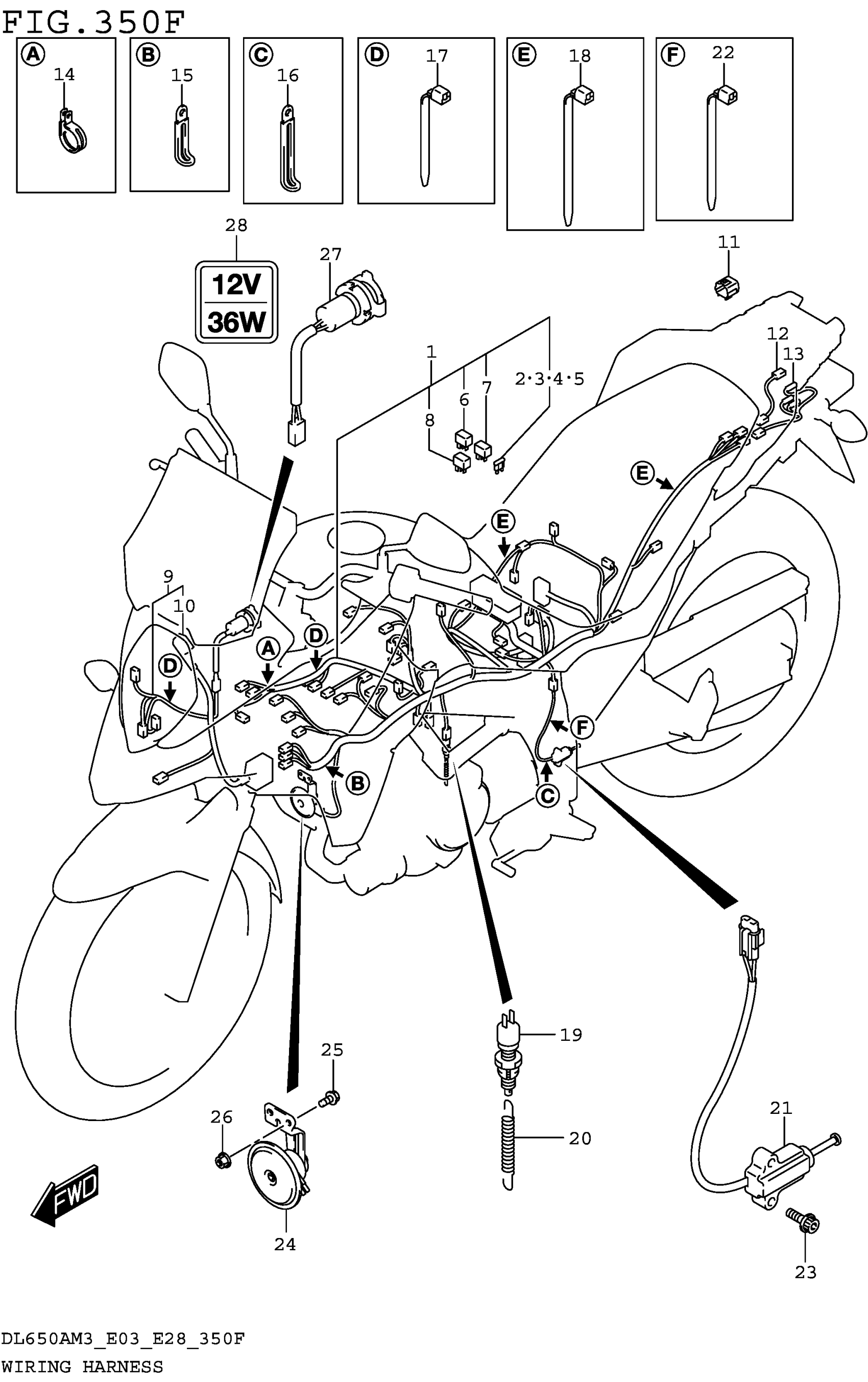

Suzuki DL650AM3 (2023) WIRING HARNESS (DL650XAM3E33) Diagram

#

Description
Price

1

HARNESS, WIRING NO.1

36610-28K21

Unavailable

2

.FUSE (3A)

09481-03501

$2.45

3

.FUSE (10A)

09481-10504

$2.04

4

.FUSE (15A)

09481-15504

$2.57

5

.FUSE (25A)

09481-25504

$2.98

6

.RELAY ASSY | FOR FUEL PUMP

38860-76F01

$31.02

7

.RELAY ASSY | FOR FAN MOTOR

38860-76F01

$31.02

8

.RELAY ASSY | FOR SIDE STAND

38860-76F01

$31.02

9

HARNESS, WIRING NO.2

36620-28K00

Unavailable

10

.COVER,CONNECTOR

36618-41G00

Unavailable

11

CAP,TS

36654-06J01

$15.63

12

WIRE, REAR COMB LEAD

36853-28K00

$31.48

13

WIRE, REAR TURNSIGNAL LEAD

36856-28K00

$33.13

14

CLAMP

09403-26402

$4.25

15

CLAMP (L:80)

09404-06030

Unavailable

16

CLAMP (L:45)

09404-06429

$1.82

17

CLAMP (L:125)

09407-14403

$2.24

18

CLAMP (L:165)

09407-18402

$2.21

19

SWITCH ASSY, STOP LAMP

37740-31D00

$26.58

20

SPRING

09443-06012

$2.90

21

SWITCH ASSY,SIDE STAND This part replaces 37840-06G01.

37840-06G02

$68.13

22

CLAMP (L:100)

09407-10404

$2.71

23

BOLT

01550-0616A

$1.97

24

HORN ASSY

38500-11J00

$94.30

25

BOLT (6X16)

09118-06017

$2.21

26

NUT (6X12)

08316-1006A

$2.19

27

TERMINAL,POWER SOURCE

38850-31J00

$82.92

28

LABEL,MAX AMP

38852-28K01

$2.95
