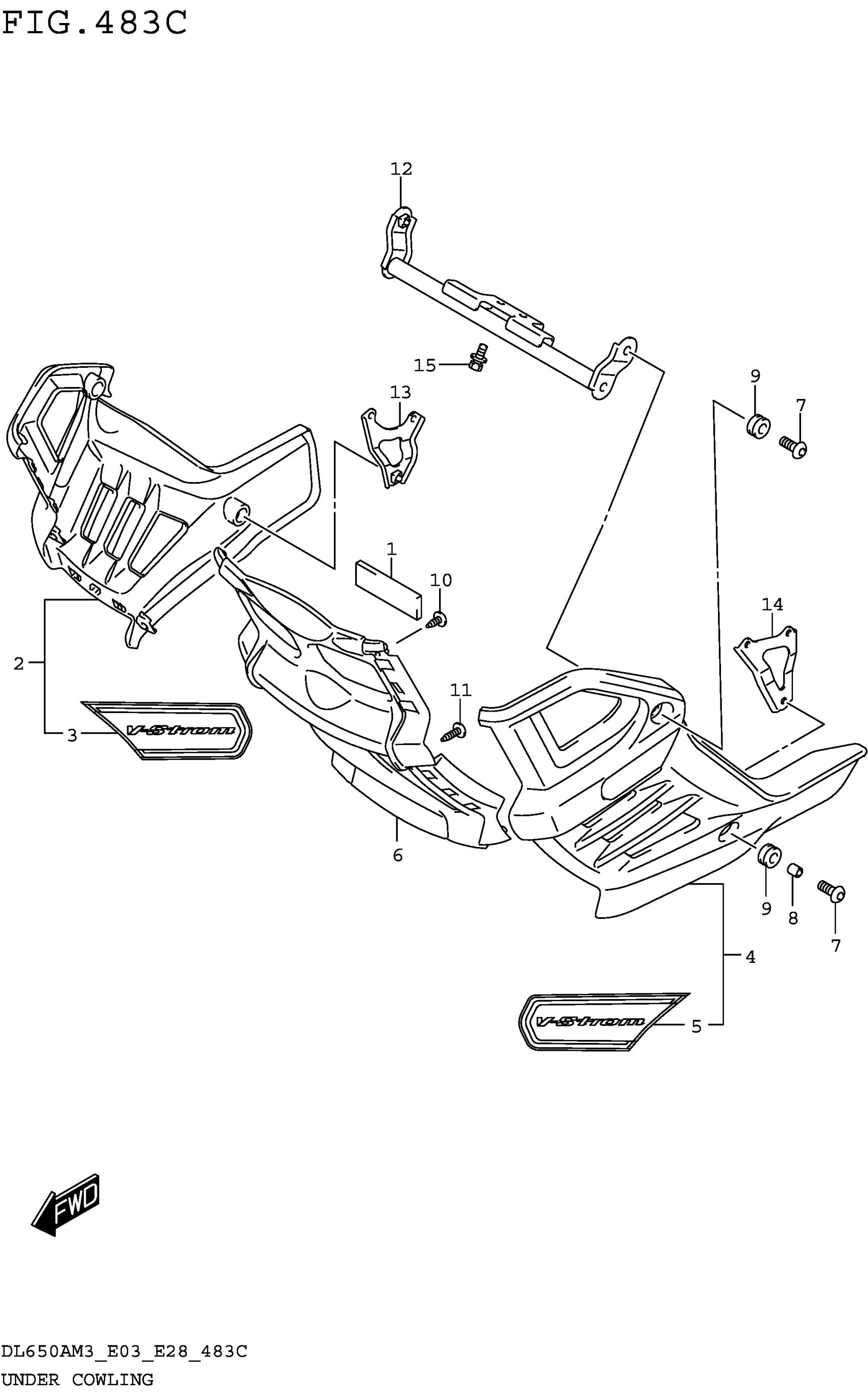

Suzuki DL650AM3 (2023) UNDER COWLING (DL650XAM3E33) Diagram

#

Description
Price

1

CUSHION, FRAME COVER LWR NO.1

47612-44H00

$7.67

2

UNDER COWL RH

94470-11J00-291

$134.38

3

.EMBLEM, UNDER COWLING RH

68181-11J00

Unavailable

4

UNDER COWL LH

94480-11J00-291

$134.38

5

.EMBLEM, UNDER COWLING LH

68191-11J00

Unavailable

6

COWLING, UNDER CTR

94491-11J00-291

$66.17

7

SCREW (6X16)

09139-06139

$3.01

8

SPACER (6.5X9X9)

09180-06263

$1.68

9

CUSHION (9X18X9.5)

09320-09016

$2.01

10

SCREW

03541-0510B

$2.43

11

SCREW

03541-0516B

$1.82

12

BRACKET, UNDER COWLING FR

94520-11J00

$42.50

13

BRACKET, UNDER COWLING RH

94530-11J00

Unavailable

14

BRACKET, UNDER COWLING LH

94540-11J00

Unavailable

15

BOLT (6X16)

09116-06006

$1.95
