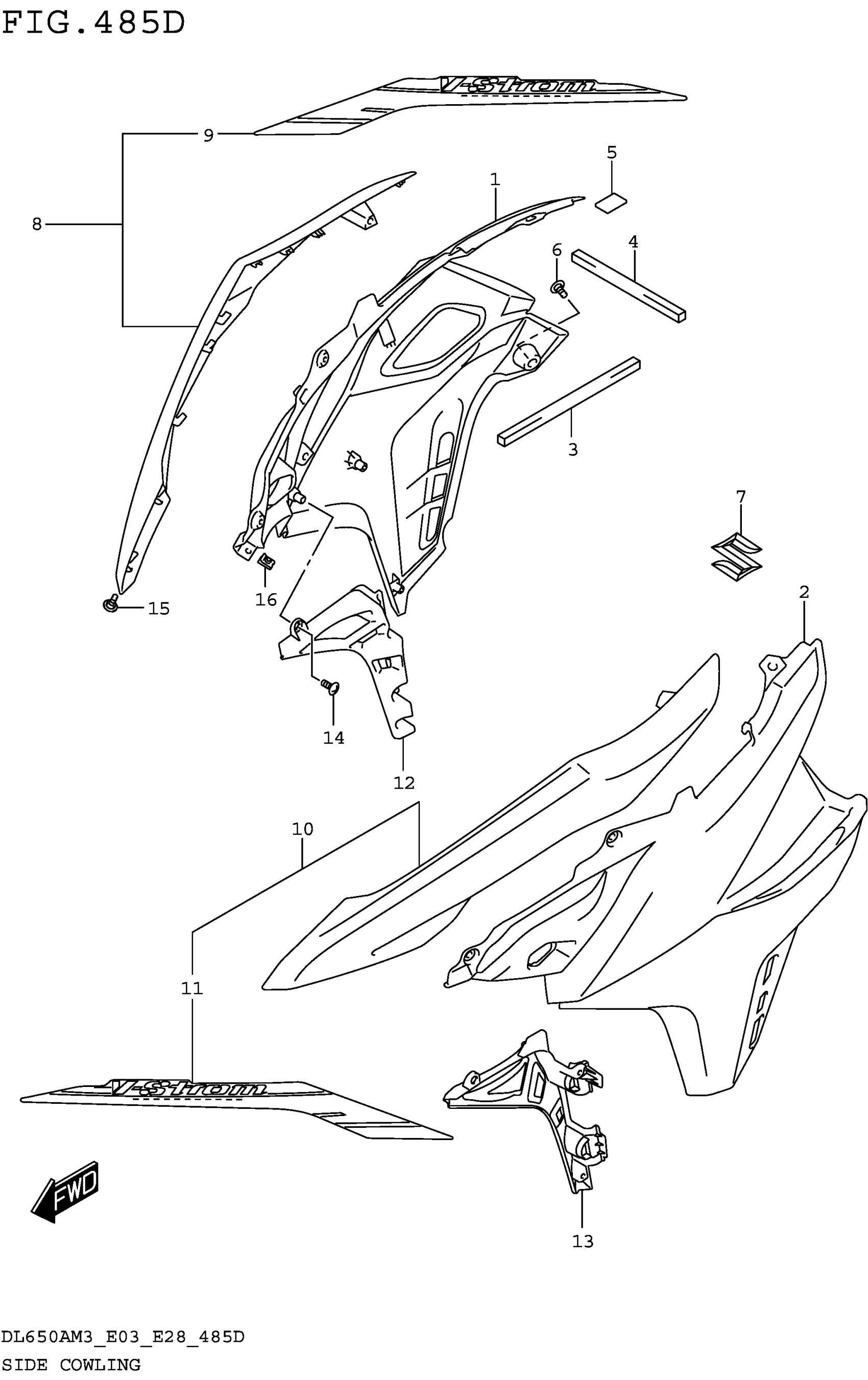

Suzuki DL650AM3 (2023) SIDE COWLING (DL650XAM3E03) Diagram

#

Description
Price

1

COVER, SIDE COWL RH

94413-28K00

$104.06

2

COVER, SIDE COWL LH

94414-28K00

$109.08

3

CUSHION (5X120X6)

44176-31J00

$3.10

4

CUSHION

44178-31J00

$3.25

5

CUSHION | CUT AS REQUIRED This part replaces 47829-10F00.

44612-13600

$5.27

6

SCREW (6X12)

47913-31J00

$2.36

7

EMBLEM, S

68111-47HA0

$38.68

8-1

COVER, SIDE COWL RH (YELLOW) | FOR YU1

94420-28K70-YU1

$123.90

8-2

COVER, SIDE COWL RH (WHITE) | FOR YUH

94420-28K70-YUH

$123.90

8-3

COVER, SIDE COWL RH (BLACK) | FOR YVB

94420-28K70-YVB

$117.82

8-4

COVER, SIDE COWL RH | FOR CFR

94420-28K70-QKA

$117.82

9-1

.TAPE, COVER SIDE RH | FOR YU1

68275-28K70-B5U

$38.50

9-2

.TAPE, COVER SIDE RH | FOR YUH

68275-28K70-B5W

Unavailable

9-3

.TAPE, COVER SIDE RH | FOR YVB

68275-28K70-CFV

$37.33

9-4

.TAPE, COVER SIDE RH | FOR CFR

68275-28K70-CFY

$37.33

10-1

COVER, SIDE COWL LH (YELLOW) | FOR YU1

94430-28K70-YU1

$126.23

10-2

COVER, SIDE COWL LH (WHITE) | FOR YUH

94430-28K70-YUH

$126.23

10-3

COVER, SIDE COWL LH (BLACK) | FOR YVB

94430-28K70-YVB

$120.05

10-4

COVER, SIDE COWL LH | FOR CFR

94430-28K70-QKA

$120.05

11-1

.TAPE, COVER SIDE LH | FOR YU1

68285-28K70-B5U

$38.50

11-2

.TAPE, COVER SIDE LH | FOR YUH

68285-28K70-B5W

$38.50

11-3

.TAPE, COVER SIDE LH | FOR YVB

68285-28K70-CFV

$37.33

11-4

.TAPE, COVER SIDE LH | FOR CFR

68285-28K70-CFY

$37.33

12

COVER, SIDE COWL INNER RH

94461-28K00

$16.30

13

COVER, SIDE COWL INNER LH

94462-28K00

$16.00

14

SCREW

03541-0512A

$1.41

15

SCREW (5X13)

09139-05091

$2.09

16

NUT (M5)

09148-05052

$3.13
