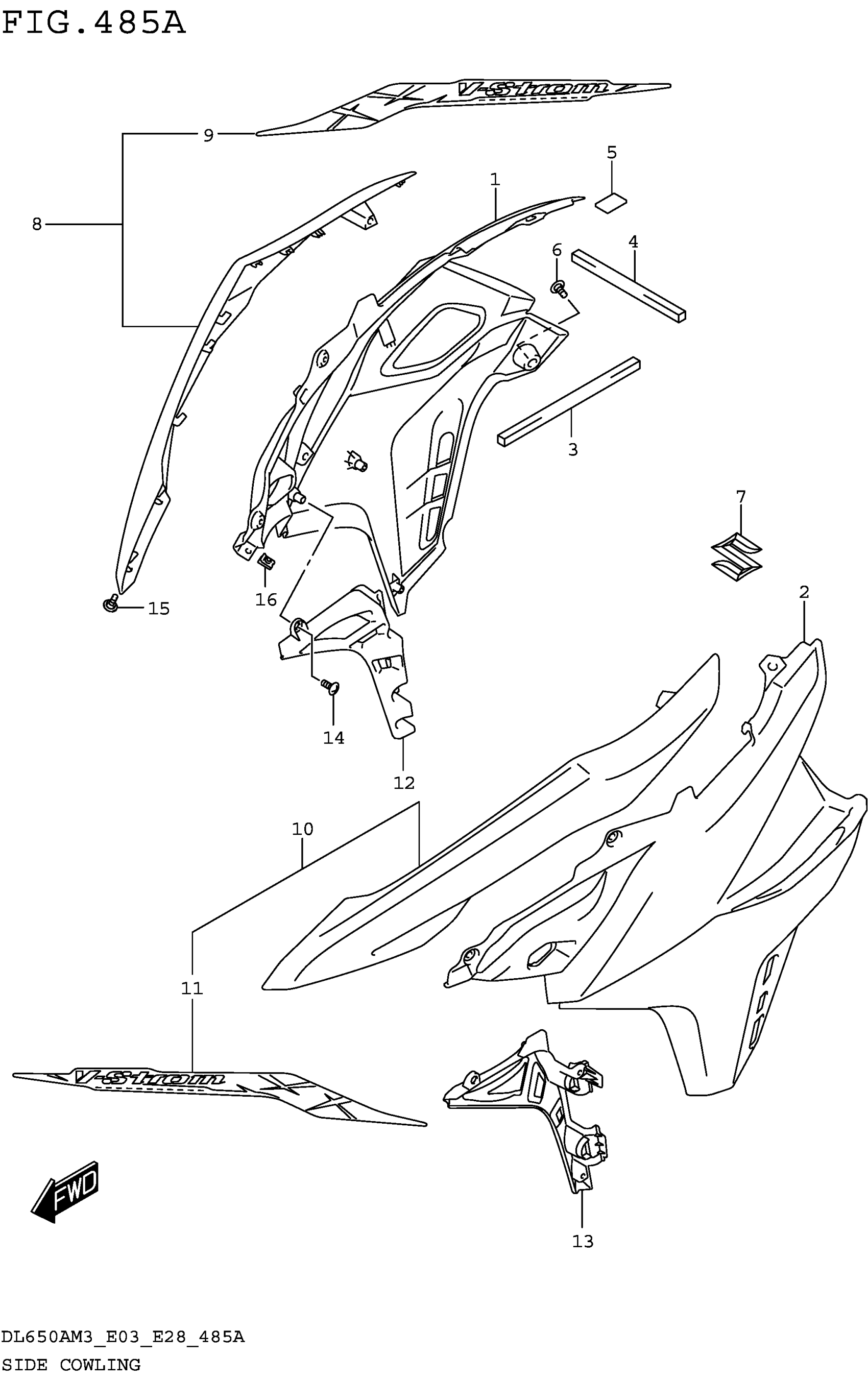

Suzuki DL650AM3 (2023) SIDE COWLING (DL650AM3E03) Diagram

#

Description
Price

1

COVER, SIDE COWL RH

94413-28K00

$106.28

2

COVER, SIDE COWL LH

94414-28K00

$111.40

3

CUSHION (5X120X6)

44176-31J00

$2.75

4

CUSHION

44178-31J00

$2.87

5

CUSHION | CUT AS REQUIRED This part replaces 47829-10F00.

44612-13600

$4.65

6

SCREW (6X12)

47913-31J00

$2.42

7

EMBLEM, S

68111-47HA0

$40.44

8-1

COVER, SIDE COWL RH (BLUE)

94420-28K80-YKY

$104.90

8-2

COVER, SIDE COWL RH (WHITE)

94420-28K80-YUH

$110.30

8-3

COVER, SIDE COWL RH (BLACK)

94420-28K80-YVB

$104.90

9-1

.TAPE, COVER SIDE RH | FOR YKY

68275-28K80-CFT

$33.08

9-2

.TAPE, COVER SIDE RH | FOR YUH

68275-28K80-B5Z

$34.10

9-3

.TAPE, COVER SIDE RH | FOR YVB

68275-28K80-CFU

$33.08

10-1

COVER, SIDE COWL LH (BLUE)

94430-28K80-YKY

$106.88

10-2

COVER, SIDE COWL LH (WHITE)

94430-28K80-YUH

$112.38

10-3

COVER, SIDE COWL LH (BLACK)

94430-28K80-YVB

$106.88

11-1

.TAPE, COVER SIDE LH | FOR YKY

68285-28K80-CFT

$33.08

11-2

.TAPE, COVER SIDE LH | FOR YUH

68285-28K80-B5Z

$34.10

11-3

.TAPE, COVER SIDE LH | FOR YVB

68285-28K80-CFU

$33.08

12

COVER, SIDE COWL INNER RH

94461-28K00

$14.45

13

COVER, SIDE COWL INNER LH

94462-28K00

$14.18

14

SCREW

03541-0512A

$1.49

15

SCREW (5X13)

09139-05091

$2.03

16

NUT (M5)

09148-05052

$3.37
