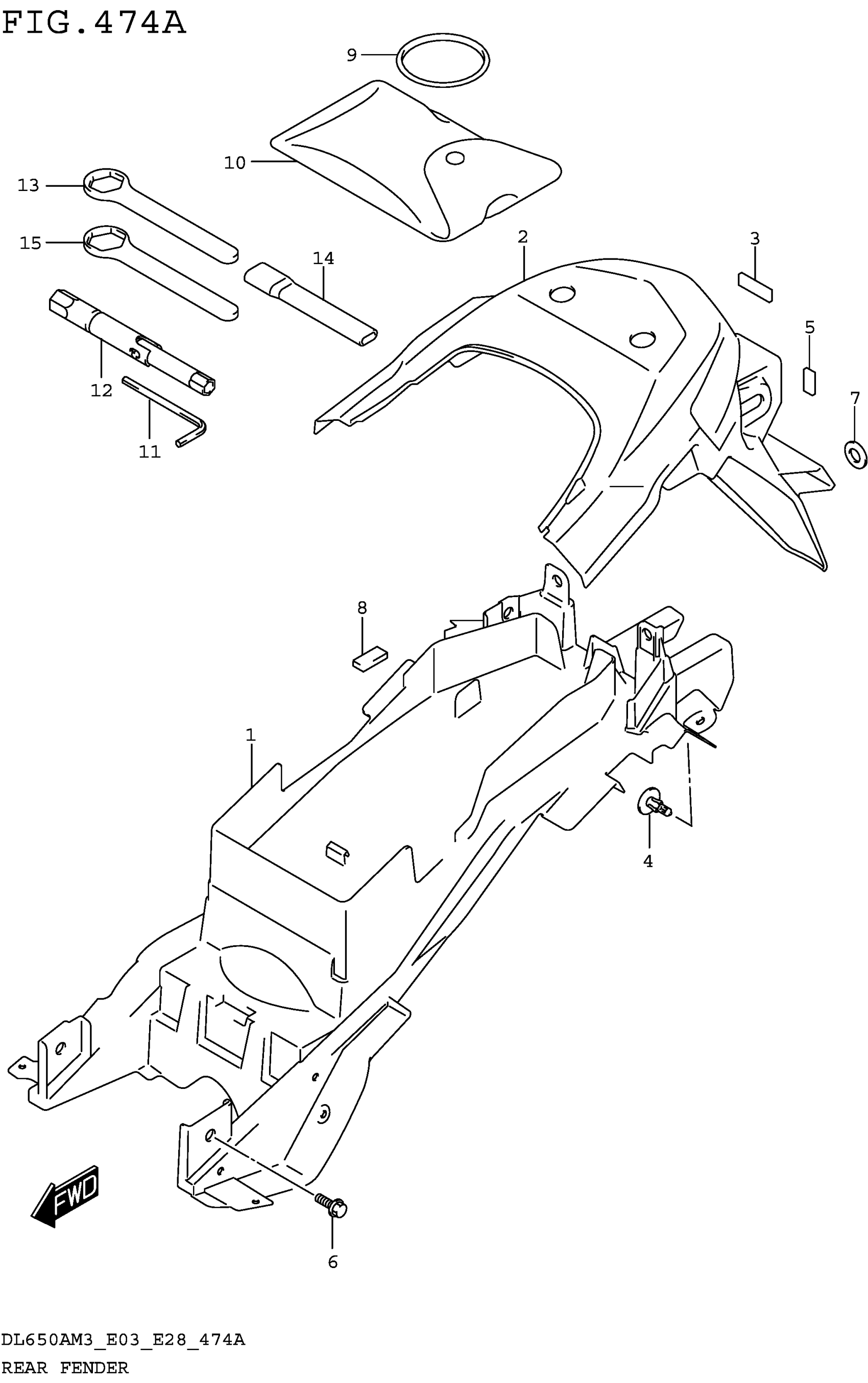

Description

Price

1

FENDER, REAR FRONT

63111-28K00

$87.93

2

FENDER, REAR REAR

63112-28K00

$64.48

3

CUSHION (10X30X6)

33652-47F00

$3.70

4

CLIP

94479-35F00

$5.62

5

CUSHION (5X10X1.5)

94612-31F00

$4.98

6

SCREW This part replaces 09116-06181.

09116-06191

Unavailable

7

WASHER

08322-0106B

$2.26

8

CUSHION (16X30X3.5)

94633-31J00

$2.44

9

O RING(D:3.5,ID This part replaces 09280-63003.

09280-61004

$2.60

10

TOOL ASSY

09800-21102

$20.21

11

SPANNER,HEXAGON (5)

09816-00059

$8.45

12

SPANNER (16)

09816-00149

$33.07

13

SPANNER (22)

09817-00035

$5.67

14

HANDLE

09817-00037

$5.52

15

SPANNER (24)

09817-00039
