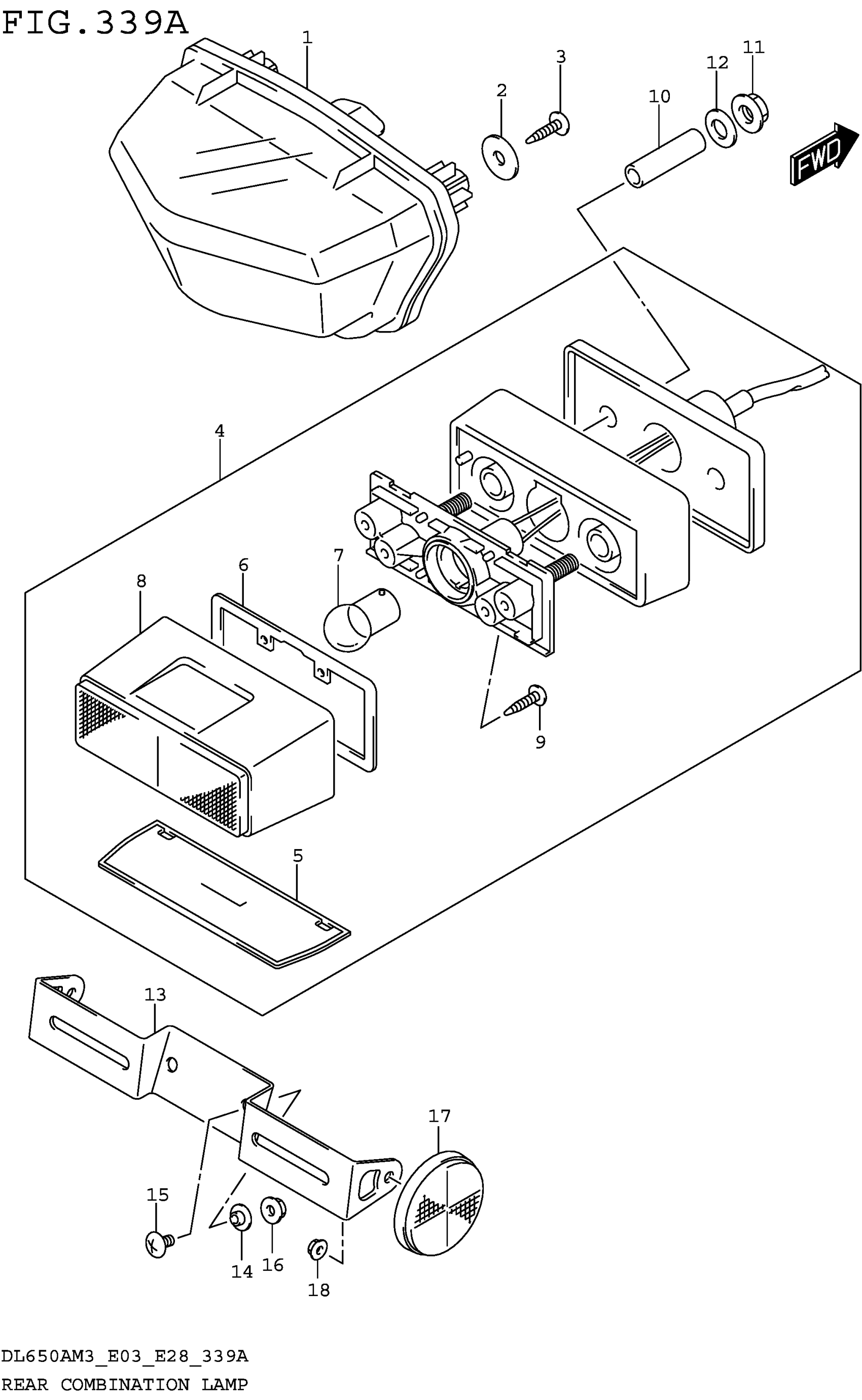

Suzuki DL650AM3 (2023) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, RR COMB

35710-31J01

$204.57

2

WASHER (5.5X20X1.2)

09160-05501

$1.84

3

SCREW

03541-0516A

$1.49

4

LAMP ASSY,LICENSE

35910-41GC2

$85.07

5

.LENS,LICENSE LAMP

35912-41G01

$13.28

6

.GASKET

35913-41G00

$14.23

7

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.33

8

.COVER,LICENSE LAMP

35917-41G00

$35.32

9

.SCREW

03211-0416A

$1.49

10

SPACER (6.5X9X33.3)

09180-06278

$4.52

11

NUT (6X12)

08316-1006A

$2.19

12

WASHER (6.5X20X1.2)

09160-06077

$1.91

13

BRACKET,LICENSE PLATE

35927-14J30

$15.70

14

WASHER

09169-06071

$2.50

15

SCREW

02142-0616A

$1.49

16

NUT (6X12)

08316-1006A

$2.19

17

REFLECTOR ASSY,REAR SIDE

35970-13K00

$16.28

18

NUT

08316-1005A

$2.19
