Description

Price

1

HANDLEBAR (SILVER)

56111-28K00-YUS

$119.87

2

BALANCER SET, HANDLEBAR

56200-16843

$33.07

3

.SCREW (6X110)

09127-06018

$3.10

4

.EXPANDER,HANDLE BALANCER

56272-06G00

$10.78

5

.SPACER,EXPANDER

56276-17D00

$4.78

6

.WASHER (6.5X16X4)

09160-06131

$2.53

7

.EXPANDER,HANDLE BALANCER

56272-10G01

$4.44

8

.NUT,HANDLE BALANCER

56273-10G10

$7.92

9

MIRROR ASSY, RR VIEW RH

56500-04F30

$134.12

10

MIRROR ASSY, RR VIEW LH

56600-04F30

$134.10

11

CABLE ASSY, CLUTCH

58200-11J00

$47.41

12

GUIDE, CLUTCH CABLE

58631-11J10

Unavailable

13

STOPPER,CLUTCH CABLE

58634-44H00

$17.40

14

BOLT

01547-0612A

$2.01

15

CABLE ASSY, THROTTLE NO.1

58300-11J01

$44.82

16

CABLE ASSY, THROTTLE NO.2

58300-11J11

$42.95

17

SCREW (5X10)

09125-05042

$1.98

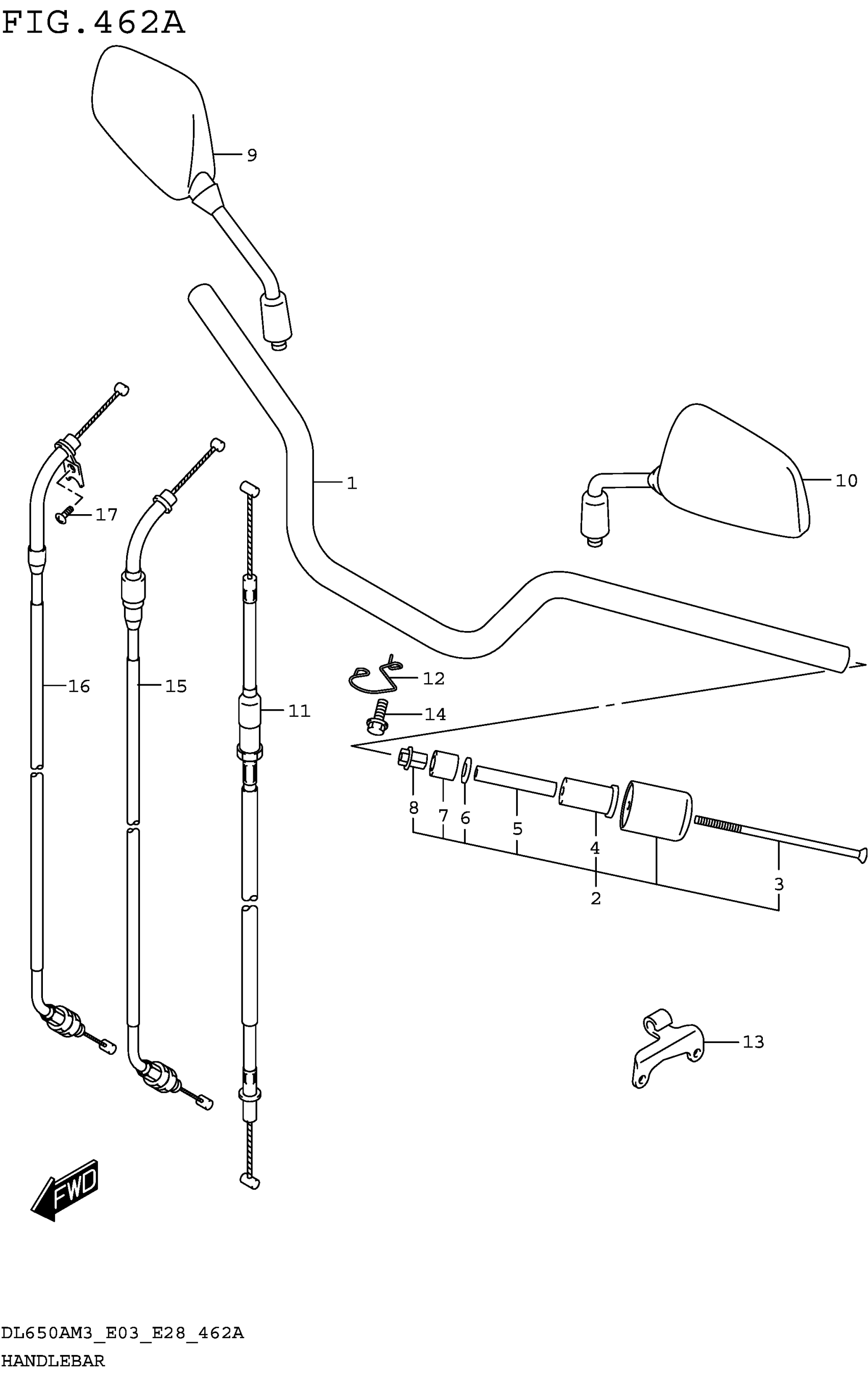

Suzuki DL650AM3 (2023) HANDLEBAR (DL650AM3E03) Diagram

HANDLEBAR (SILVER)

BALANCER SET, HANDLEBAR

.SCREW (6X110)

.EXPANDER,HANDLE BALANCER

.SPACER,EXPANDER

.WASHER (6.5X16X4)

.EXPANDER,HANDLE BALANCER

.NUT,HANDLE BALANCER

MIRROR ASSY, RR VIEW RH

MIRROR ASSY, RR VIEW LH

CABLE ASSY, CLUTCH

GUIDE, CLUTCH CABLE

STOPPER,CLUTCH CABLE

BOLT

CABLE ASSY, THROTTLE NO.1

CABLE ASSY, THROTTLE NO.2

SCREW (5X10)
