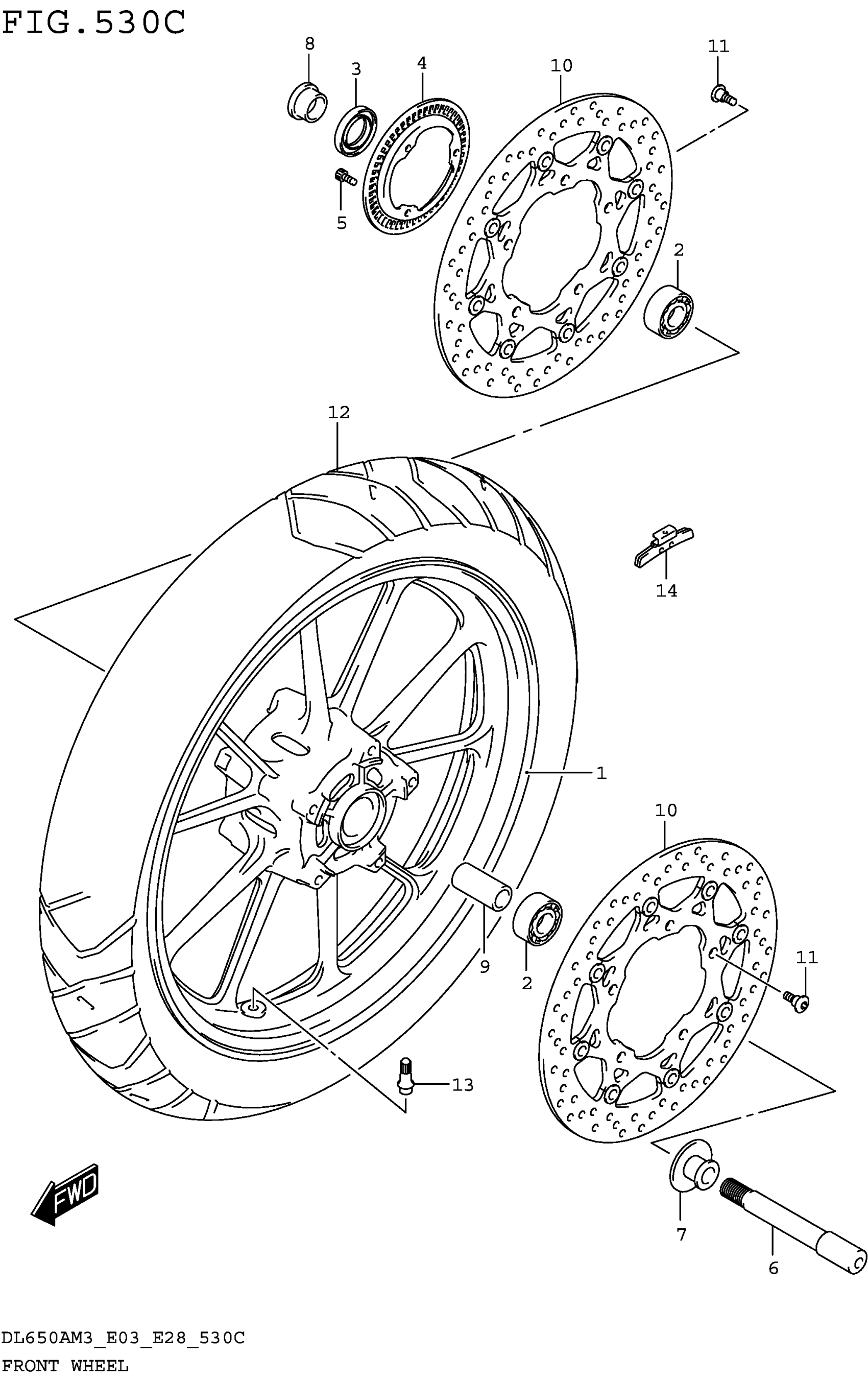

Suzuki DL650AM3 (2023) FRONT WHEEL (DL650AM3E33) Diagram

WHEEL, FRONT (19M/CXMT2.50) | BLACK

54111-28K00-019

$861.33

BEARING

08123-6203B

$24.63

SEAL, FRONT HUB BRG DUST

54841-28K00

$6.75

RING, SPEED SENSOR (50T)

54162-28K00

$64.93

BOLT

07130-0512A

$2.19

AXLE, FR

54711-08F10

$121.48

SPACER, FR AXLE LH

54750-31F00

$28.90

SPACER, FR AXLE RH

54751-10G01

$20.22

SPACER (17.5X25X88)

09180-17067

$25.05

DISC,FR BRAKE

59210-44G11

$462.72

BOLT (8X21)

09106-08160

$3.22

TIRE, FRONT (BATTLAX | ADVENTURE A40F F) BRIDGESTONE

55110-28K00

$344.60

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.10

BALANCER,WHEEL (10G)

55411-22H00

$9.70

BALANCER,WHEEL (20G)

55412-22H00

$11.37

BALANCER,WHEEL (30G)

55413-22H00

$12.93
