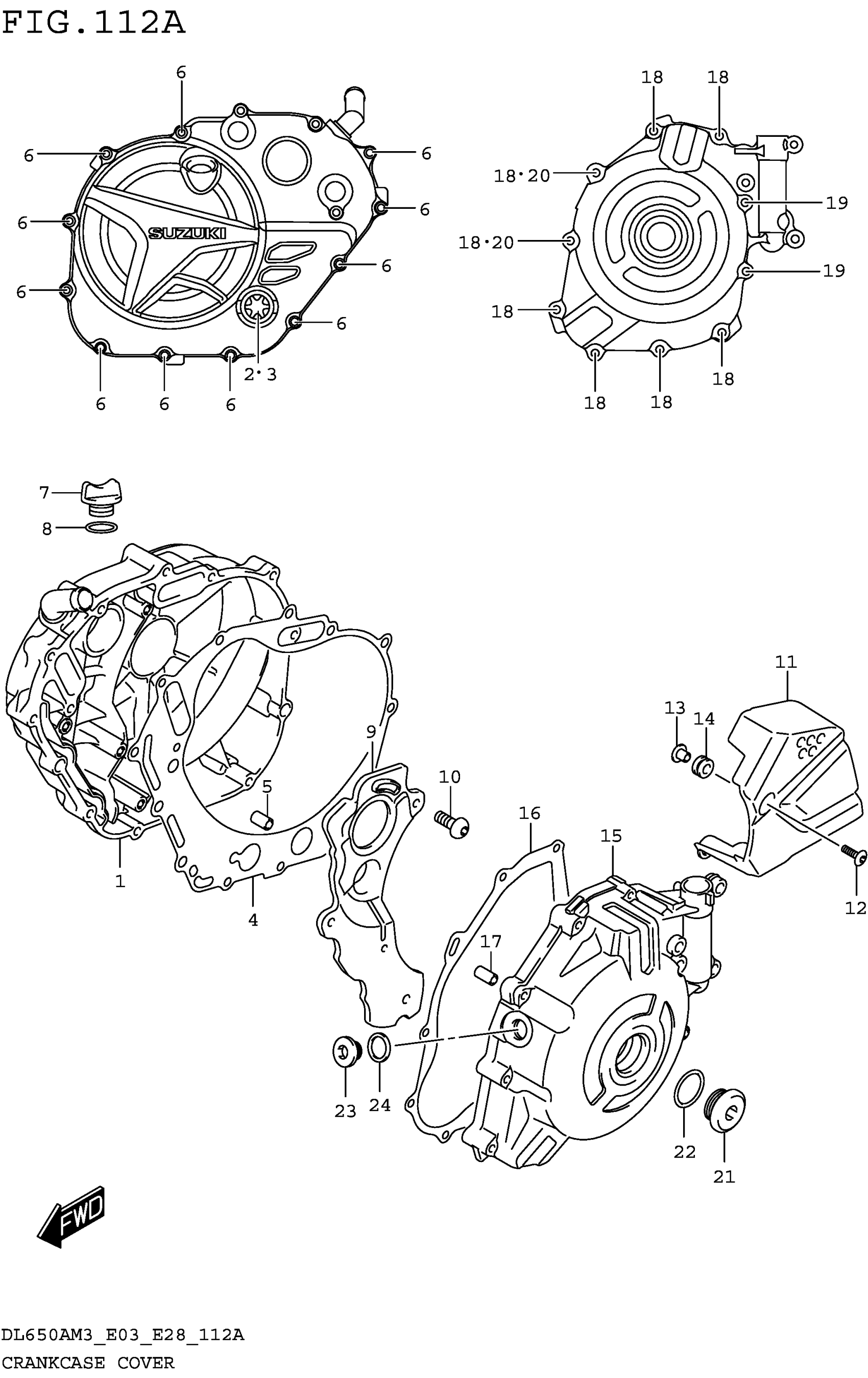

Suzuki DL650AM3 (2023) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11340-18K10

$327.53

2

.LENS,OIL LEVEL CHECK

11971-33210

$18.20

3

.CIRCLIP

08331-4130A

$2.70

4

.GASKET,CLUTCH COVER

11482-44H00

$18.76

5

PIN (8.5X18X2.3)

04211-09149

$1.65

6

BOLT (L:35)

09103-06530

$2.10

7

PLUG,ENGINE OIL FILLER

11971-25D00

$5.11

8

O-RING (D:3.1,ID:16.8)

09280-17003

$1.65

9

SEPARATOR,OIL

11343-44H01

$51.92

10

BOLT (6X12)

09106-06098

Unavailable

11

COVER, ENG SPROCKET

11361-28K00

$43.73

12

SCREW (6X20)

09139-06028

$3.70

13

WASHER (6.3X17X1.6)

09169-06062

$2.50

14

CUSHION (9X18X9.5)

09320-09016

$1.97

15

COVER, MAGNETO

11351-44H20

$257.47

16

.GASKET,MAGNETO COVER

11483-19F00

$12.78

17

PIN (8.5X18X2.3)

04211-09149

$1.65

18

BOLT (L:35)

09103-06530

$2.10

19

BOLT (L:65)

09103-06536

$2.95

20

GASKET (5.8X13X1.2)

09168-06023

$2.35

21

PLUG (26X9)

09259-26011

$11.03

22

O-RING (D:3.1,ID:22.7)

09280-22008

$2.27

23

PLUG (16X8)

09248-16012

$4.64

24

GASKET (16X22X2)

09168-16002

$1.91
