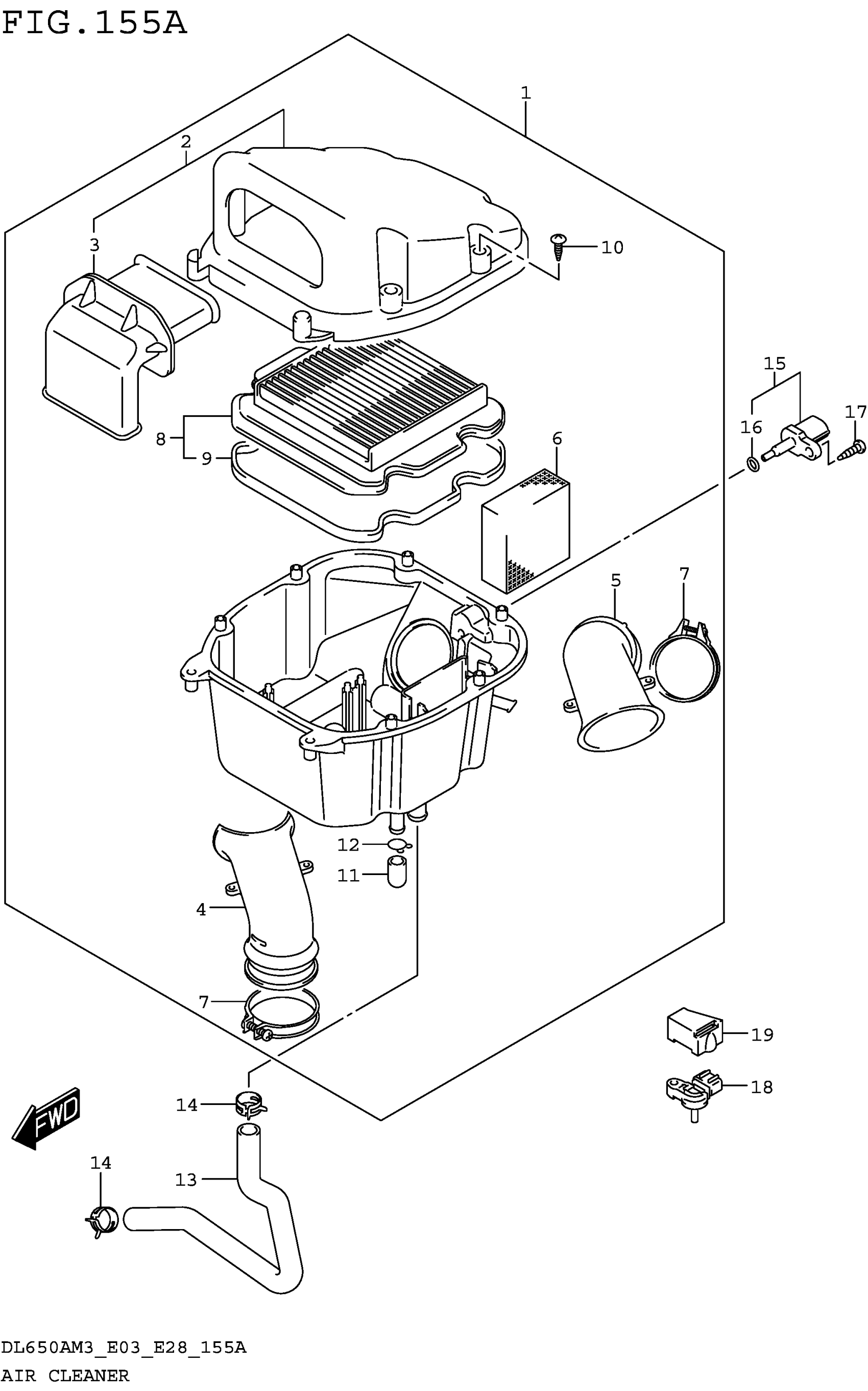

Suzuki DL650AM3 (2023) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR

13700-11J02

$271.32

2

.CAP, AIR CLEANER

13740-11J01

Unavailable

3

..TUBE, INLET

13891-27G01

$32.46

4

.TUBE, OUTLET A

13881-27G11

$24.02

5

.TUBE, OUTLET B

13882-27G11

$24.02

6

.FILTER, BREATHER

13788-11J00

$15.21

7

.CLAMP,OUTLET TUBE

13826-44H01

Unavailable

8

.FILTER ASSY

13780-27G10

$45.54

9

..GASKET, AIR CLEANER

13746-06G00

$15.61

10

.SCREW

03141-0516A

$1.43

11

.PLUG

13878-10G01

$6.53

12

.CLIP

09401-14301

$2.17

13

TUBE, BREATHER

13850-11J00

$56.07

14

CLIP

09401-20405

$4.43

15

SENSOR,AIR TEMP

13650-41F10

$71.40

16

O-RING

13655-41F10

Unavailable

17

SCREW

03511-0516A

$1.88

18

SENSOR,BOOST

18590-18K00

$350.62

19

HOLDER, SENSOR

18595-04K01

$10.20
