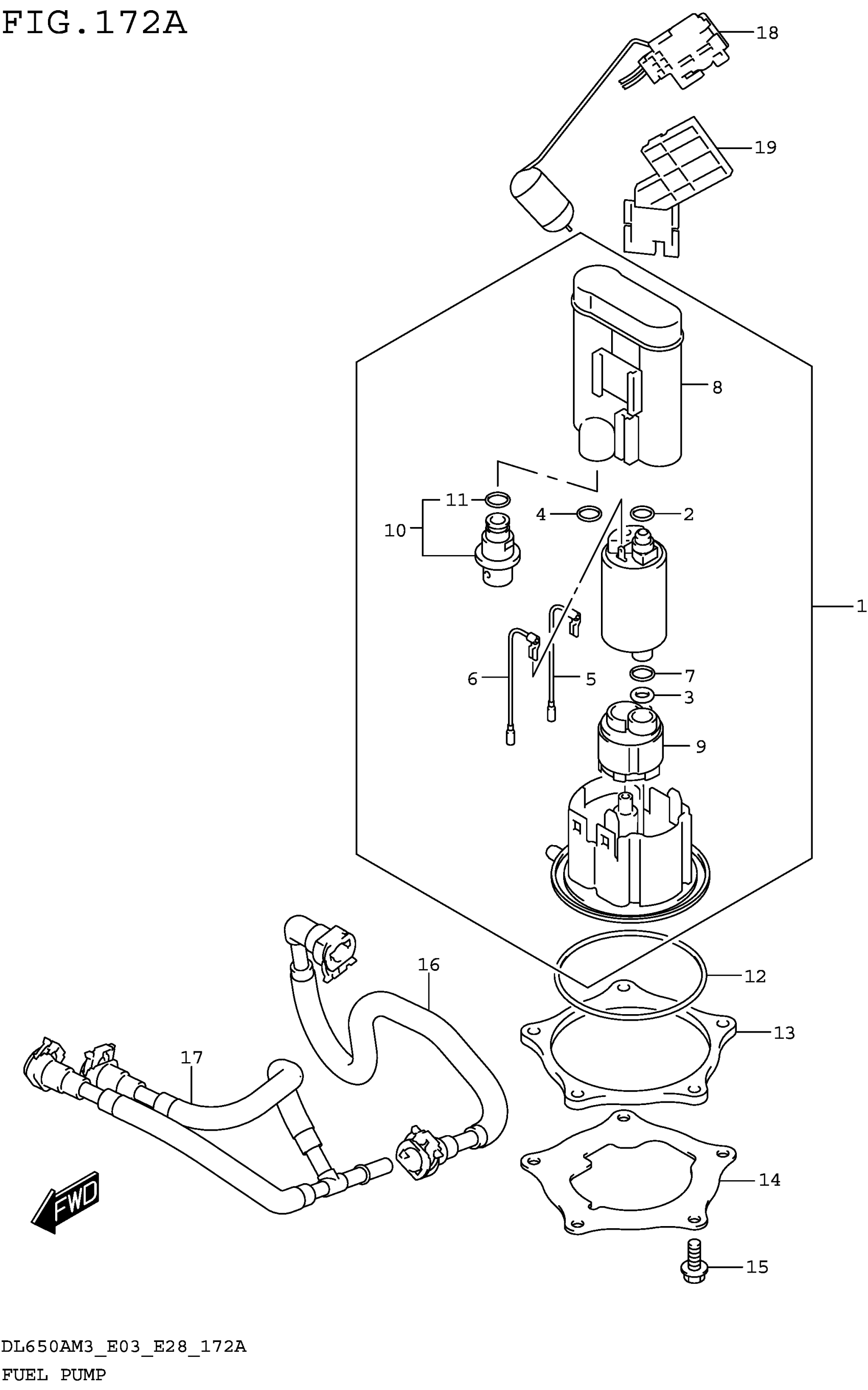

Suzuki DL650AM3 (2023) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY,FUEL

15100-28K00

$669.65

2

.O-RING

15113-05H00

$18.81

3

.O-RING

15113-17K00

$35.95

4

.O-RING

15113-35F00

$8.15

5

.WIRE,EARTH | BLACK

15114-17K00

$45.18

6

.WIRE,LEAD | BLUE

15115-17K00

$45.18

7

.COLLAR

15116-17K00

$20.62

8

.FILTER

15310-17K00

$72.01

9

.STRAINER

15420-17K00

$93.61

10

.REGULATOR

15610-17K00

Unavailable

11

..O-RING

15113-48H00

$19.15

12

O-RING,FUEL PUMP

15201-07L00

$19.22

13

PLATE,FUEL PUMP INNER

15122-17K00

$49.37

14

PLATE,FUEL PUMP OUTER

15121-28K00

$12.60

15

BOLT

07120-0616A

$2.55

16

HOSE, FUEL NO.1

15810-28K00

$95.23

17

HOSE, FUEL NO.2

15820-28K00

$124.02

18

GAUGE ASSY, FUEL LEVEL SENDER

34810-28K00

$116.95

19

ATTACHMENT, FUEL LEVEL GAUGE

34815-28K00

$23.92
