2022 Suzuki DL650AM2 Side Cowling Diagram

← All diagrams

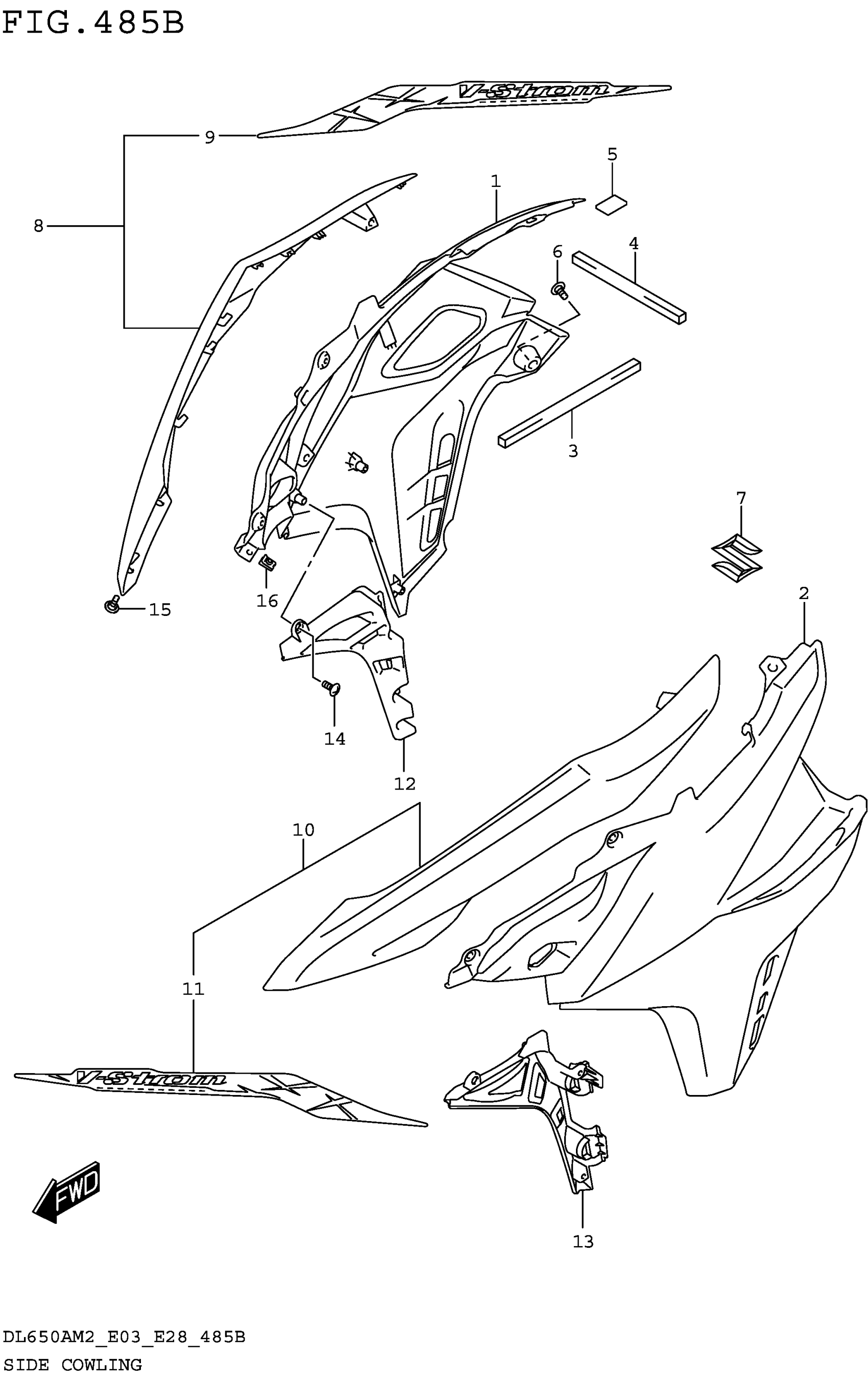

Find the part on the Side Cowling diagram for your 2022 Suzuki DL650AM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki DL650AM2 Side Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE COWL RH

94413-28K00

1
Out of stock

2

COVER, SIDE COWL LH

94414-28K00

1
Out of stock

3

CUSHION (5X120X6)

44176-31J00

2
Out of stock

4

CUSHION

44178-31J00

2
Out of stock

5

CUSHION | CUT AS REQUIRED This part replaces 47829-10F00.

44612-13600

2
Out of stock

6

SCREW (6X12)

47913-31J00

2
Out of stock

7

EMBLEM, S

68111-47HA0

2

$40.31

In stock

8-1

COVER, SIDE COWL RH (BLUE)

94420-28K80-YKY

1

$117.82

In stock

8-2

COVER, SIDE COWL RH (WHITE)

94420-28K80-YUH

1

$123.90

In stock

8-3

COVER, SIDE COWL RH (BLACK)

94420-28K80-YVB

1

$117.82

In stock

9-1

1

$37.33

In stock

9-2

1

$38.50

In stock

9-3

1

$37.33

In stock

10-1

COVER, SIDE COWL LH (BLUE)

94430-28K80-YKY

1

$120.05

In stock

10-2

COVER, SIDE COWL LH (WHITE)

94430-28K80-YUH

1

$126.23

In stock

10-3

COVER, SIDE COWL LH (BLACK)

94430-28K80-YVB

1

$120.05

In stock

11-1

1

$37.33

In stock

11-2

1

$38.50

In stock

11-3

1

$37.33

In stock

12

COVER, SIDE COWL INNER RH

94461-28K00

1
Out of stock

13

COVER, SIDE COWL INNER LH

94462-28K00

1
Out of stock

14

SCREW

03541-0512A

10
Out of stock

15

SCREW (5X13)

09139-05091

4
Out of stock

16

NUT (M5)

09148-05052

2
Out of stock
