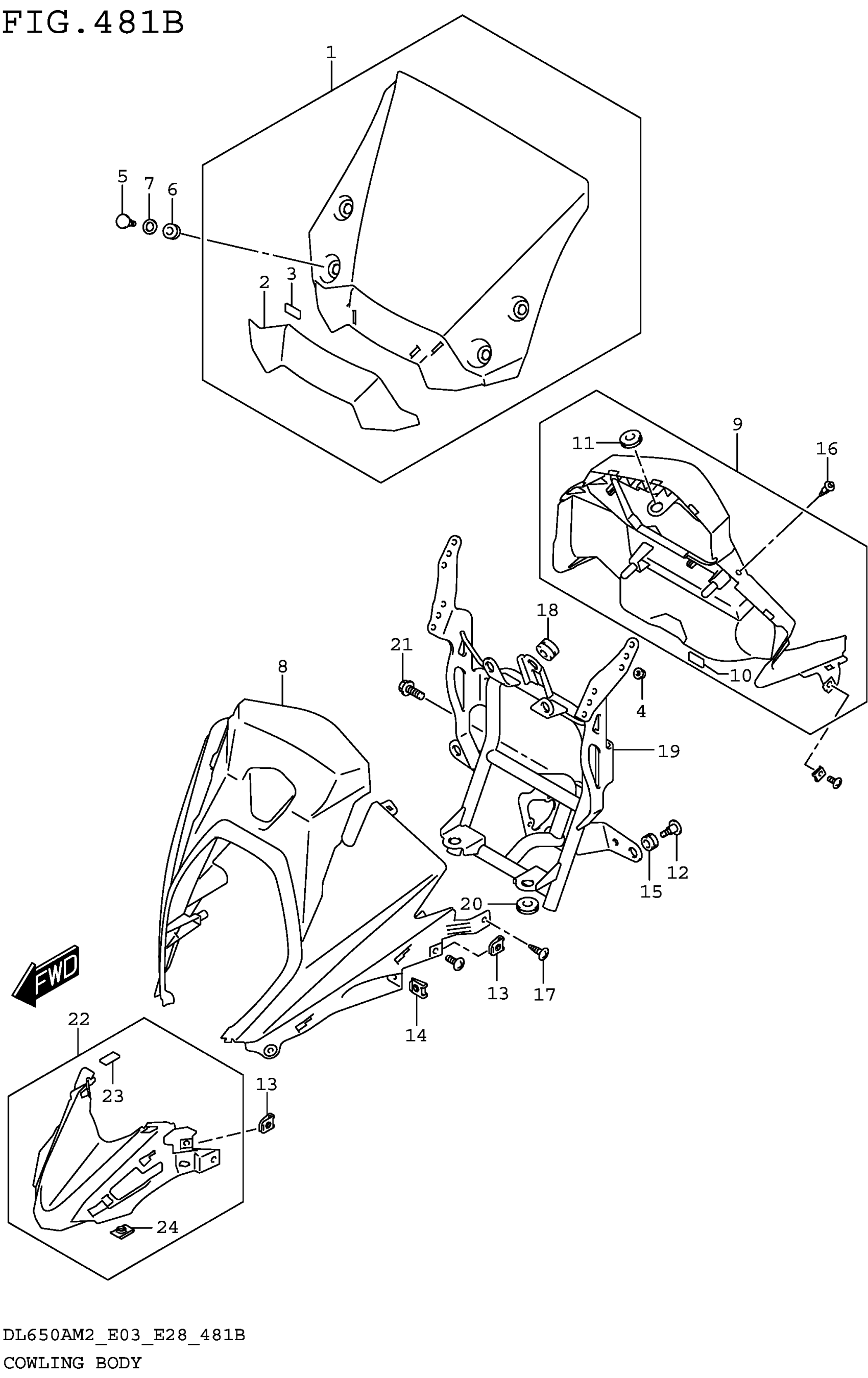

Suzuki DL650AM2 (2022) COWLING BODY (DL650AM2 E28) Diagram

#

Description
Price

1

WINDSCREEN

48410-28K00

$76.10

2

.COVER, WINDSCREEN

48412-28K00

$33.88

3

PAD (8X20X2)

73415-70A00

$1.57

4

CAP, WINDSCREEN SCREW

48414-31J00

$3.27

5

SCREW (6X20)

09139-06211

$3.27

6

CUSHION (9X18X9.5)

09320-09016

$2.01

7

WASHER

08322-0110B

$2.43

8

COWLING, BODY

94411-28K00

$166.47

9

PANEL, METER

94630-28K00

$37.82

10

PAD (8X20X2)

73415-70A00

$1.57

11

CUSHION (8X26X7)

09320-08028

$2.82

12

SCREW (6X20)

09139-06126

$3.75

13

NUT (M5)

09148-05038

$2.01

14

NUT

09148-06020

$4.15

15

CUSHION (9X18X9.5)

09320-09016

$2.01

16

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

17

SCREW

03541-0512A

$1.41

18

CUSHION,SPEEDOMETER

34189-08J01

$3.53

19

BRACE, COWLING

94510-28K00

$179.80

20

CUSHION (8X26X7)

09320-08028

$2.82

21

BOLT (8X20)

01550-0820A

$2.32

22

COWLING, BODY LOWER (BLACK)

94402-28K00-YKV

$95.17

23

PAD (8X20X2)

73415-70A00

$1.57

24

NUT (M5)

09148-05052

$3.13
