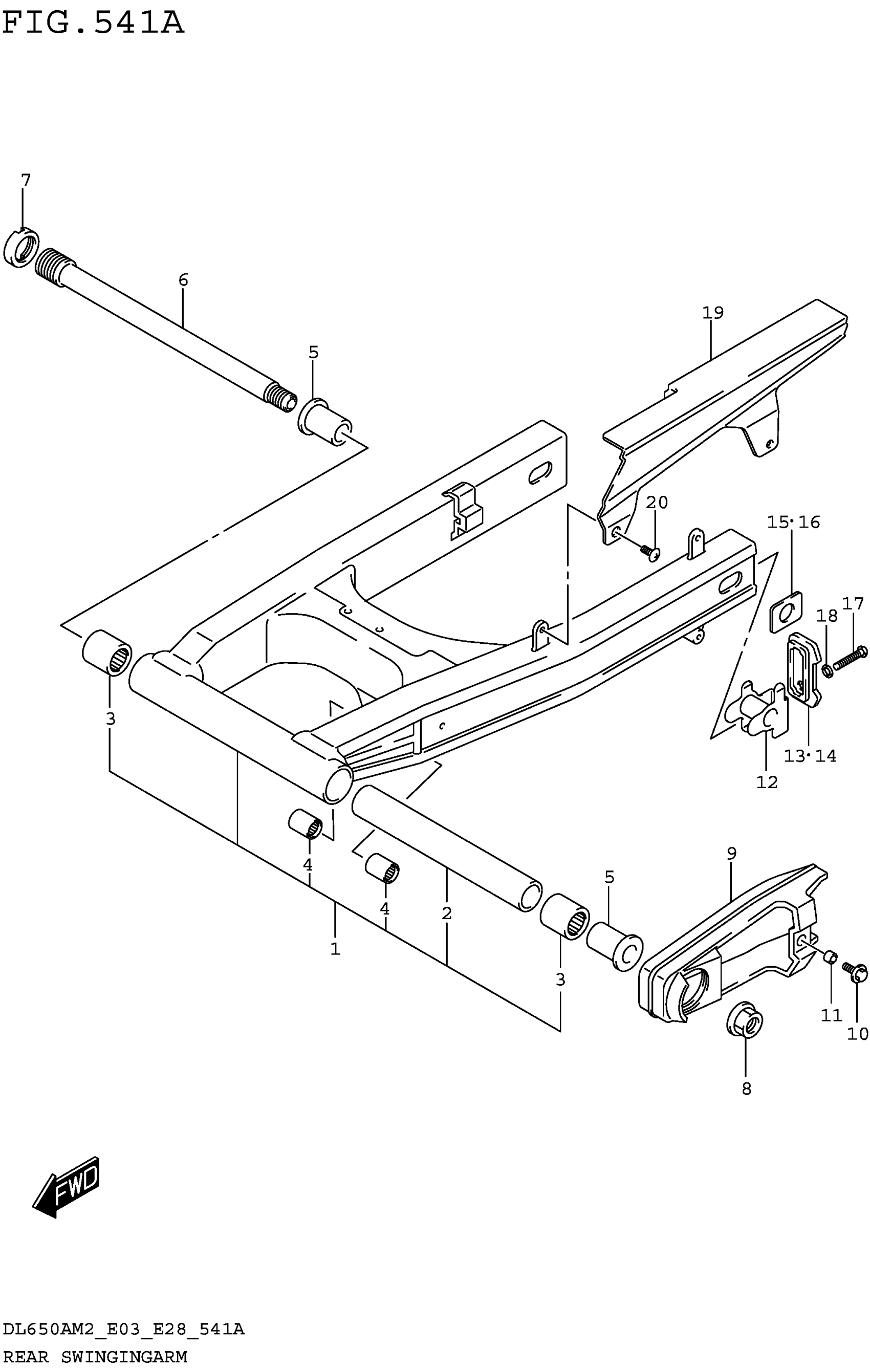

Find the part on the Rear Swingingarm diagram for your 2022 Suzuki DL650AM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki DL650AM2 Rear Swingingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGINGARM ASSY, REAR

61000-27G31-YAP

1
Out of stock

2

.SPACER (20.8X27.2X196.7)

09180-20118

1
Out of stock

3

BEARING (25X33X35)

09263-25073

2
Out of stock

4

.BEARING (17X24X25)

09263-17053

2
Out of stock

5

SPACER,PIVOT BEARING

61251-31E00

2
Out of stock

6

SHAFT, RR SWINGINGARM PIVOT

61211-06G00

1
Out of stock

7

NUT, RR SWGARM PIVOT BOLT

61214-19F10

1
Out of stock

8

NUT

08319-3118A

1
Out of stock

9

BUFFER, CHAIN TOUCH DEFENSE

61273-27G01

1
Out of stock

10

BOLT This part replaces 09116-06111.

09116-06152

1
Out of stock

11

SPACER (6.5X10X7)

09180-06283

1
Out of stock

12

ADJUSTER, CHAIN

61410-03F00

2
Out of stock

13

PLATE, CHAIN ADJUSTER GUIDE R

61421-33D01

1
Out of stock

14

PLATE, CHAIN ADJUSTER GUIDE L

61422-33D01

1
Out of stock

15

WASHER, CHAIN ADJUSTER RH

64712-03F01

1
Out of stock

16

WASHER, CHAIN ADJUSTER LH

64713-03F01

1
Out of stock

17

BOLT (8X50)

09106-08119

2
Out of stock

18

WASHER

09164-08015

2
Out of stock

19

CASE,CHAIN

61310-16G00

1
Out of stock

20

BOLT (6X12)

09139-06225

2
Out of stock
