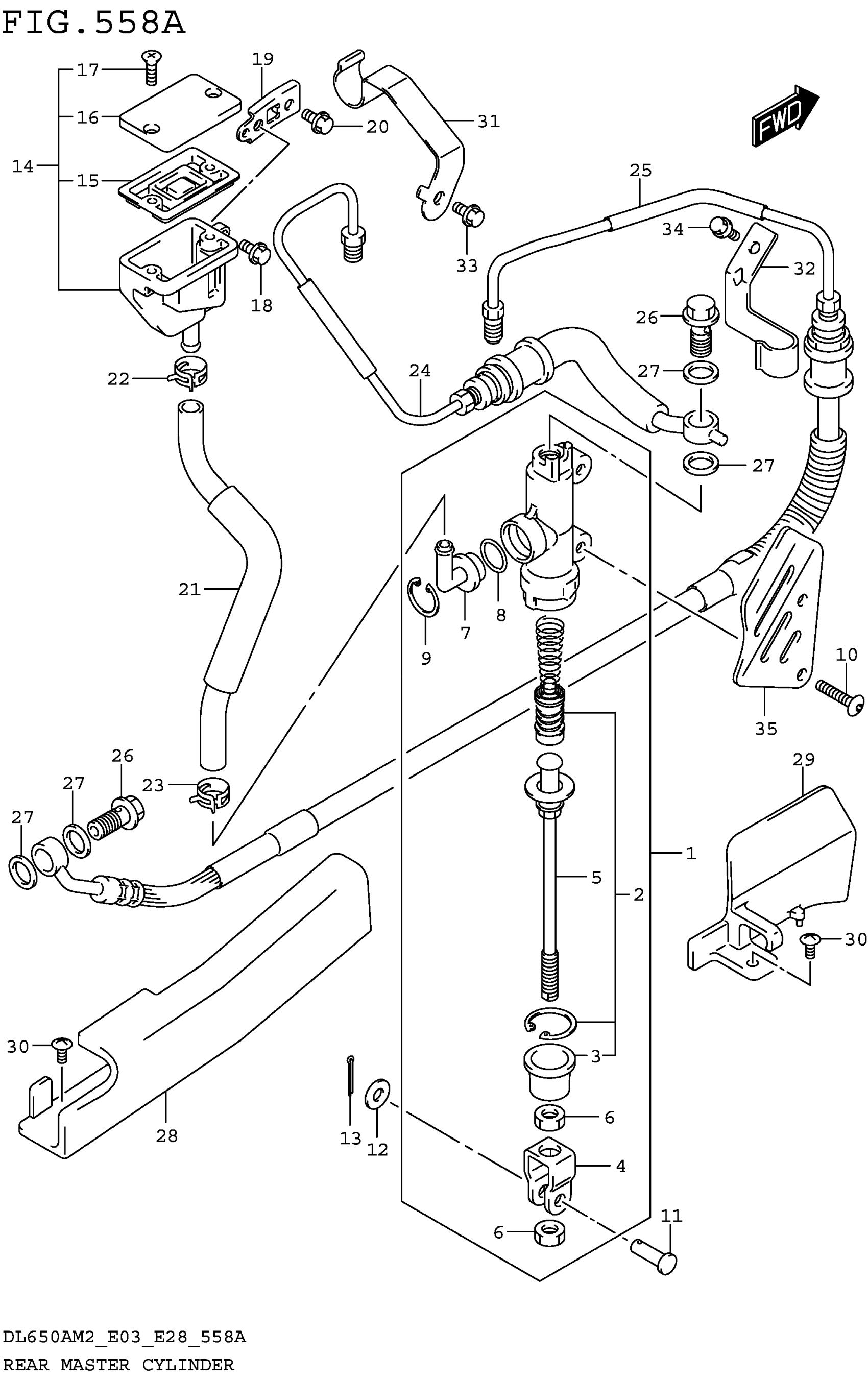

Suzuki DL650AM2 (2022) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, RR MASTER

69600-06G00

$301.50

2

.PISTON/CUP SET This part replaces 69600-34820.

69600-34821

$26.60

3

.BOOT

69691-00A00

$5.30

4

.YOKE

69692-19A00

$16.87

5

.ROD, PUSH

69670-03G00

$44.07

6

.NUT

69693-05A00

$1.96

7

.CONNECTOR

69672-00B20

$7.01

8

.O-RING

69686-34200

$2.93

9

.CIRCLIP

69674-00B20

$3.97

10

SCREW (6X25)

09139-06192

$3.23

11

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$4.11

12

WASHER

08322-0106A

$1.84

13

PIN

04111-2015A

$1.49

14

TANK ASSY,RR RESERVOIR

69740-01D02

$70.49

15

.DIAPHRAGM

59667-04700

$9.78

16

.CAP

59669-05D00

$16.76

17

.SCREW

69689-04A00

$1.78

18

BOLT

01547-0612A

$2.03

19

BRACKET, RR RESERVOIR TANK

69750-28K00

Unavailable

20

BOLT

01547-0612A

$2.03

21

HOSE, RR RESERVOIR TANK

69730-28K00

Unavailable

22

CLIP (ID:13.2) | UPPER

09401-13417

$2.26

23

CLIP (ID:12) | LOWER

09401-12404

$2.34

24

HOSE ASSY, RR BK MASTER TO HU

69200-28K01

Unavailable

25

HOSE ASSY, RR BRAKE NO.2

69400-11J01

$137.85

26

UNION (10X1.25X22)

09360-10062

$6.43

27

WASHER (10X15X1.5)

09161-10009

$1.84

28

GUIDE, REAR BRAKE HOSE

61196-27G10

Unavailable

29

GUIDE, RR BRAKE HOSE FR This part replaces 61196-06G00.

61196-06G10

$19.38

30

SCREW This part replaces 02142-0510A.

02142-0510B

$1.78

31

CLAMP, RR BRAKE HOSE

69260-11J00

Unavailable

32

CLAMP, RR BRAKE HOSE NO.2

69266-27G00

Unavailable

33

BOLT

01547-0610B

$2.45

34

BOLT

01547-0612A

$2.03

35

COVER, RR MASTER CYLINDER

69641-06G00

Unavailable
