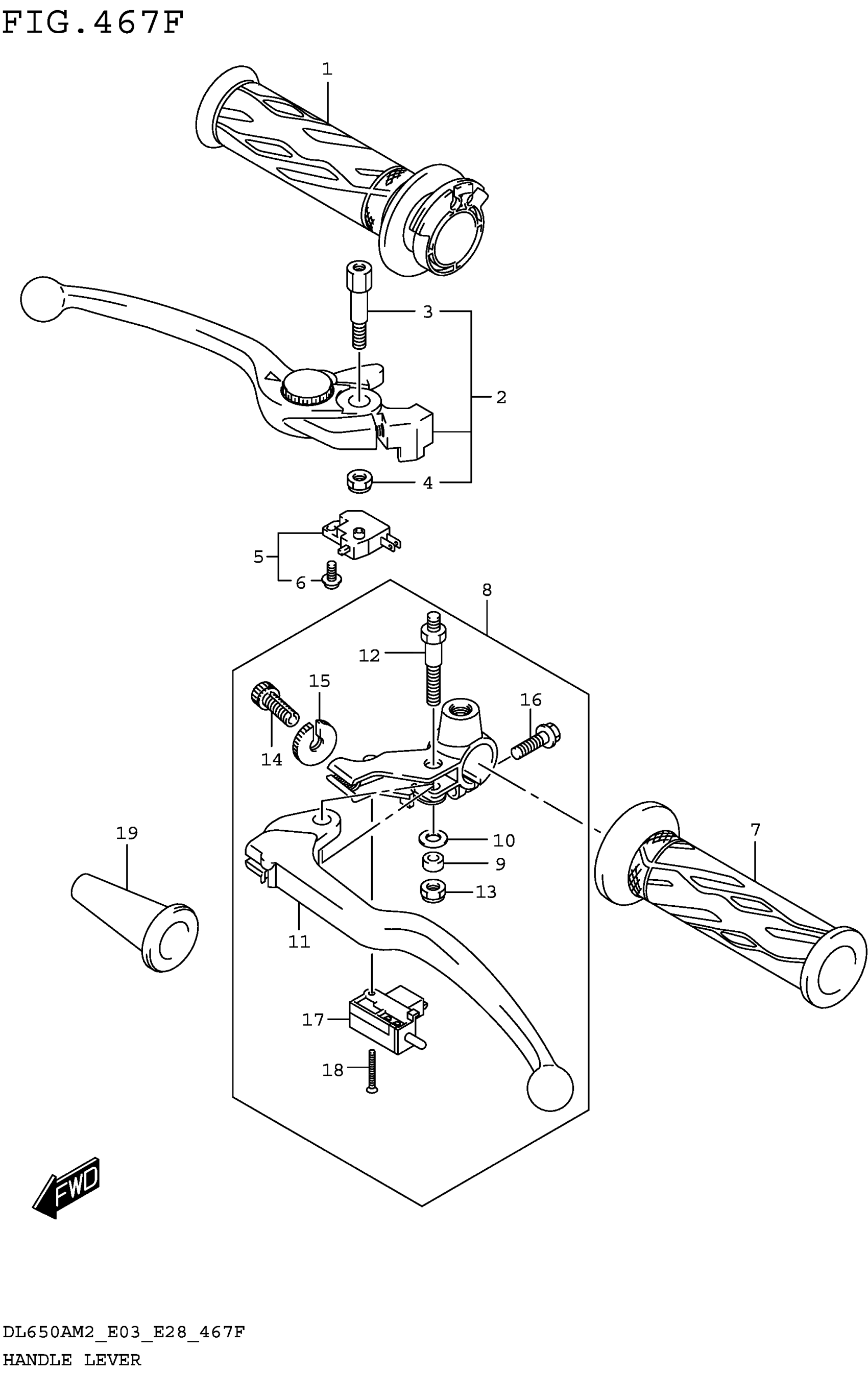

Suzuki DL650AM2 (2022) HANDLE LEVER (DL650XAM2 E33) Diagram

#

Description
Price

1

GRIP,THROTTLE

57110-21H02

$18.61

2

LEVER ASSY, BRAKE

57300-06G20

$91.82

3

.BOLT, BRAKE LEVER PIVOT

57431-06GA0

$25.72

4

.NUT

08319-2106A

$1.89

5

SWITCH ASSY,FR BRAKE

57460-14J02

$35.21

6

.SCREW,WITH WASHER (4X12)

57465-17C00

$2.37

7

GRIP,L

57211-21H01

$10.18

8

LEVER ASSY, CLUTCH

57500-25D22

$63.78

9

.SPACER

09180-06346

$2.72

10

WASHER

08322-0106B

$2.24

11

LEVER ASSY, CLUTCH This part replaces 57621-33E01.

57621-40F00

$16.69

12

.BOLT, CLUTCH LEVER PIVOT

57531-10D20

$38.68

13

.NUT

08319-2106A

$1.89

14

.ADJUSTER, WIRE

57441-45C01

$8.29

15

.NUT, LOCK

57442-45C01

$7.92

16

..BOLT

01547-0620B

$2.43

17

.SWITCH,CLUTCH

57560-05A00

$11.12

18

.SCREW,CLUTCH SWITCH

57562-41G01

$10.82

19

BOOT, CLUTCH CABLE

58273-31001

$2.40
