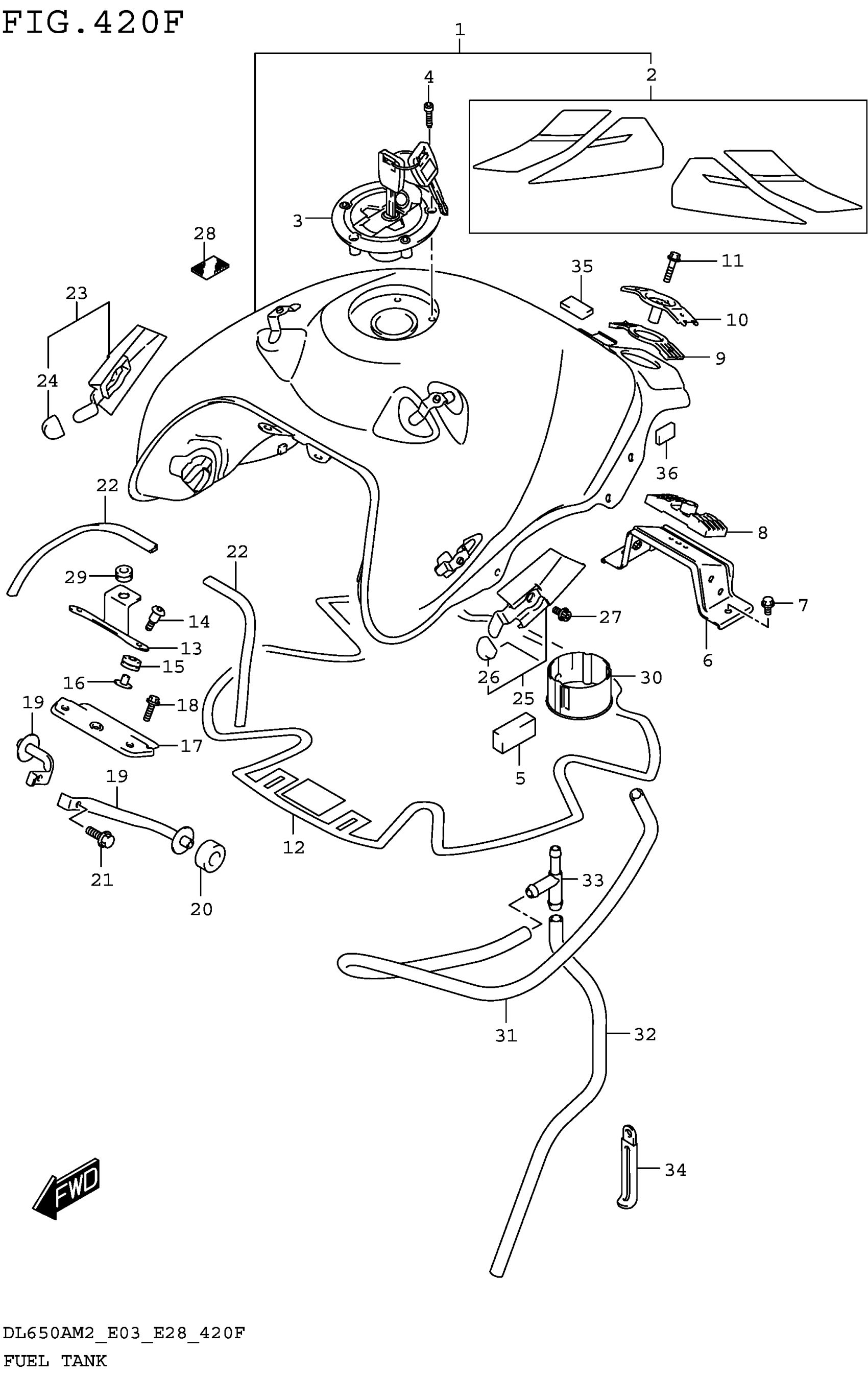

Suzuki DL650AM2 (2022) FUEL TANK (DL650XAM2 E33) Diagram

#

Description
Price

1-1

TANK ASSY, FUEL (YELLOW) | FOR YU1

44100-28KG0-YU1

$1,124.85

1-2

TANK ASSY, FUEL (WHITE) | FOR YUH

44100-28KG0-YUH

$1,124.85

1-3

TANK ASSY, FUEL (BLACK) | FOR YVB

44100-28KG0-6UX

$1,106.45

1-4

TANK ASSY, FUEL (BLUE) | FOR CFR

44100-28KG0-YKY

$1,106.45

2-1

.TAPE SET, FUEL TANK | FOR YU1

68110-28K30-B5U

$62.95

2-2

.TAPE SET, FUEL TANK | FOR YUH

68110-28K30-B5W

$62.95

2-3

.TAPE SET, FUEL TANK | FOR YVB

68110-28K30-CFV

$60.08

2-4

.TAPE SET, FUEL TANK | (WHITE/BLUE) FOR CFR

68110-28K30-CFW

$60.08

3

CAP SET,FUEL TANK FILLER

44200-17840

$166.45

4

BOLT,FUEL TANK FILLER CAP

44244-11J00

$4.00

5

CUSHION, FUEL TANK SIDE

44541-28K00

$11.78

6

BRACKET, FUEL TANK RR

44550-06G10

Unavailable

7

BOLT (8X16)

01550-0816A

$2.32

8

CUSHION,FUEL TANK RR LWR

44545-06G00

$18.25

9

CUSHION,FUEL TANK RR UPR

44542-06G00

$16.78

10

BRACKET,FUEL TANK RR UP

44530-06G00

Unavailable

11

BOLT (8X35)

01550-0835A

$3.04

12

SHIELD, FUEL TANK CENTER

44194-11J00

$80.88

13

BRACKET, FR COVER

44154-11J00

$10.98

14

SCREW (6X25)

09139-06192

$3.23

15

CUSHION,FUEL TANK FRONT

44511-16G01

$4.11

16

SPACER,FUEL TANK FR

44512-16G00

$7.44

17

BRACKET, FUEL TANK FR

44520-11J00

Unavailable

18

BOLT

01550-0620B

$2.39

19

BRACKET, FR SIDE

44560-11J00

Unavailable

20

CUSHION,FRONT SIDE BRKT

44543-31J01

$5.00

21

BOLT

01550-0612A

$1.97

22

MOLDING, FUEL TANK

68241-11J01

$17.95

23

BRACKET, FUEL TANK COVER RH

44130-28K00

$12.18

24

CUSHION

09329-18001

$1.91

25

BRACKET, FUEL TANK COVER LH

44140-28K00

$12.18

26

CUSHION

09329-18001

$1.91

27

.BOLT

07120-0610A

$2.30

28

FASTENER,COWLING (20X15X0.8)

44572-37H00

$9.83

29

CUSHION (6X18X6)

09320-06504

$4.96

30

VESSEL, FUEL TANK INNER

44121-28K01

$11.90

31

HOSE, FUEL TANK DRAIN NO.1

44423-28K01

$17.87

32

HOSE, FUEL TANK DRAIN NO.2

44423-11J31

$4.67

33

3 WAY

09367-08005

$4.83

34

CLAMP (L:80)

09404-06030

Unavailable

35

CUSHION

45516-01H00

$5.32

36

CUSHION, FRAME COVER FR RR

47122-28K00

$5.73
