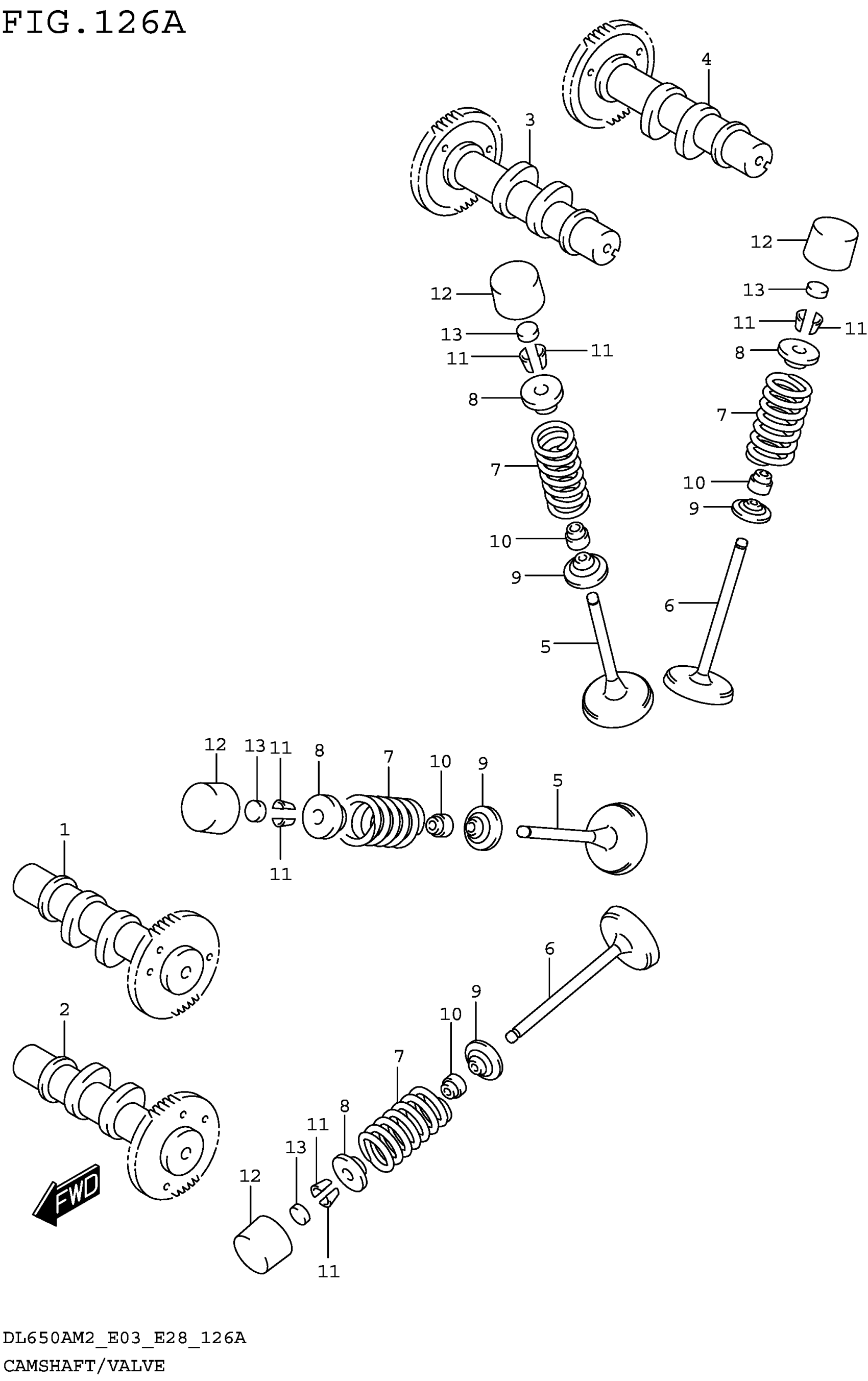

Suzuki DL650AM2 (2022) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT, INTAKE FR (NT:36)

12710-11J00

Unavailable

2

CAMSHAFT,EXHAUST FR (NT:36) | (NT:36)

12720-44H00

Unavailable

3

CAMSHAFT, INTAKE RR (NT:36)

12730-11J00

Unavailable

4

CAMSHAFT,EXHAUST RR (NT:36)

12740-44H00

Unavailable

5

VALVE,INTAKE

12911-18H00

$46.80

6

VALVE,EXHAUST

12912-20F00

$51.87

7

SPRING,VALVE

12921-44H00

Unavailable

8

RETAINER,VALVE SPRING

12931-17E01

$16.13

9

SEAT,VALVE SPRING

12933-17E00

$6.89

10

SEAL,OIL (4.5X10X8)

09289-04002

$6.49

11

COTTER,VALVE

12932-32C00

$2.03

12

TAPPET

12891-47H00

$68.43

13-1

SHIM,TAPPET (T:1.20)

12892-05C00-120

$11.60

13-2

SHIM,TAPPET (T:1.25)

12892-05C00-125

$11.83

13-3

SHIM,TAPPET (T:1.30)

12892-05C00-130

$10.06

13-4

SHIM,TAPPET (T:1.35)

12892-05C00-135

$10.06

13-5

SHIM,TAPPET (T:1.40)

12892-05C00-140

$11.83

13-6

SHIM,TAPPET (T:1.45)

12892-05C00-145

$9.87

13-7

SHIM,TAPPET (T:1.50)

12892-05C00-150

$11.83

13-8

SHIM,TAPPET (T:1.55)

12892-05C00-155

$9.69

13-9

SHIM,TAPPET (T:1.60)

12892-05C00-160

$9.69

13-10

SHIM,TAPPET (T:1.65)

12892-05C00-165

$9.69

13-11

SHIM,TAPPET (T:1.70)

12892-05C00-170

$11.60

13-12

SHIM,TAPPET (T:1.75)

12892-05C00-175

$9.87

13-13

SHIM,TAPPET (T:1.80)

12892-05C00-180

$11.38

13-14

SHIM,TAPPET (T:1.85)

12892-05C00-185

$11.83

13-15

SHIM,TAPPET (T:1.90)

12892-05C00-190

$11.83

13-16

SHIM,TAPPET (T:1.95)

12892-05C00-195

$11.83

13-17

SHIM,TAPPET (T:2.00)

12892-05C00-200

$11.60

13-18

SHIM,TAPPET (T:2.05)

12892-05C00-205

$11.83

13-19

SHIM,TAPPET (T:2.10)

12892-05C00-210

$11.83

13-20

SHIM,TAPPET (T:2.15)

12892-05C00-215

$11.83

13-21

SHIM,TAPPET (T:2.20)

12892-05C00-220

$11.83

14

SHIM SET,TAPPET (5PCS.EACH) | OPT,NOT ILLUSTRATED

12800-05830

$1,211.58

15

.CASE,TAPPET SHIM | OPT,NOT ILLUSTRATED

99000-69491

Unavailable
