2021 Suzuki DL650AM1 Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 2021 Suzuki DL650AM1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

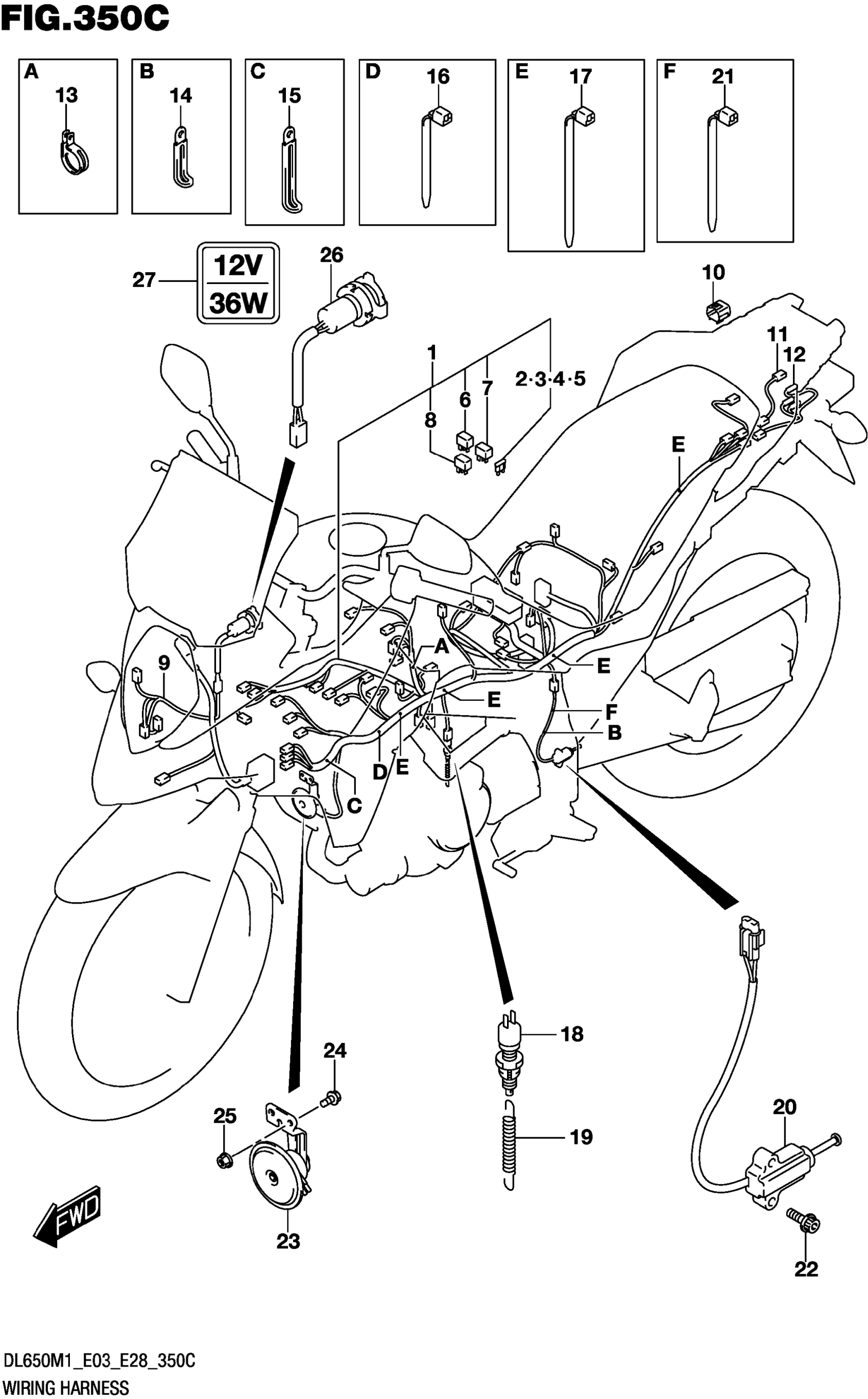

2021 Suzuki DL650AM1 Wiring Harness Diagram

#

Description
Price
Status
Order Qty

1

HARNESS,WIRING NO.1

36610-28K20-000

Out of stock

2

.FUSE (3A)

09481-03501-000

Out of stock

3

.FUSE (10A)

09481-10504-000

Out of stock

4

.FUSE (15A)

09481-15504-000

Out of stock

5

.FUSE (25A)

09481-25504-000

Out of stock

6

.RELAY ASSY | FOR FUEL PUMP

38860-76F01-000

Out of stock

7

.RELAY ASSY | FOR FAN MOTOR

38860-76F01-000

Out of stock

8

.RELAY ASSY | FOR SIDE STAND

38860-76F01-000

Out of stock

9

HARNESS,WIRING NO.2

36620-28K00-000

Out of stock

10

CAP,TS

36654-06J01-000

Out of stock

11

WIRE,REAR COMB LEAD

36853-28K00-000

Out of stock

12

WIRE,REAR TURNSIGNAL LEAD

36856-28K00-000

Out of stock

13

CLAMP

09403-26402-000

Out of stock

14

CLAMP (L:45)

09404-06429-000

Out of stock

15

CLAMP (L:80)

09404-06030-000

Out of stock

16

CLAMP (L:125)

09407-14403-000

Out of stock

17

CLAMP (L:165)

09407-18402-000

Out of stock

18

SWITCH ASSY,STOP LAMP

37740-31D00-000

Out of stock

19

SPRING

09443-06012-000

Out of stock

20

SWITCH ASSY,SIDE STAND

37840-06G01-000

Out of stock

21

CLAMP (L:100)

09407-10404-000

Out of stock

22

BOLT

01550-0616A-000

Out of stock

23

HORN ASSY

38500-11J00-000

Out of stock

24

BOLT (6X16)

09118-06017-000

Out of stock

25

NUT (6X12)

08316-1006A-000

Out of stock

26

TERMINAL,POWER SOURCE

38850-31J00-000

Out of stock

27

LABEL,MAX AMP

38852-28K01-000

Out of stock
