2021 Suzuki DL650AM1 Magneto Diagram

← All diagrams

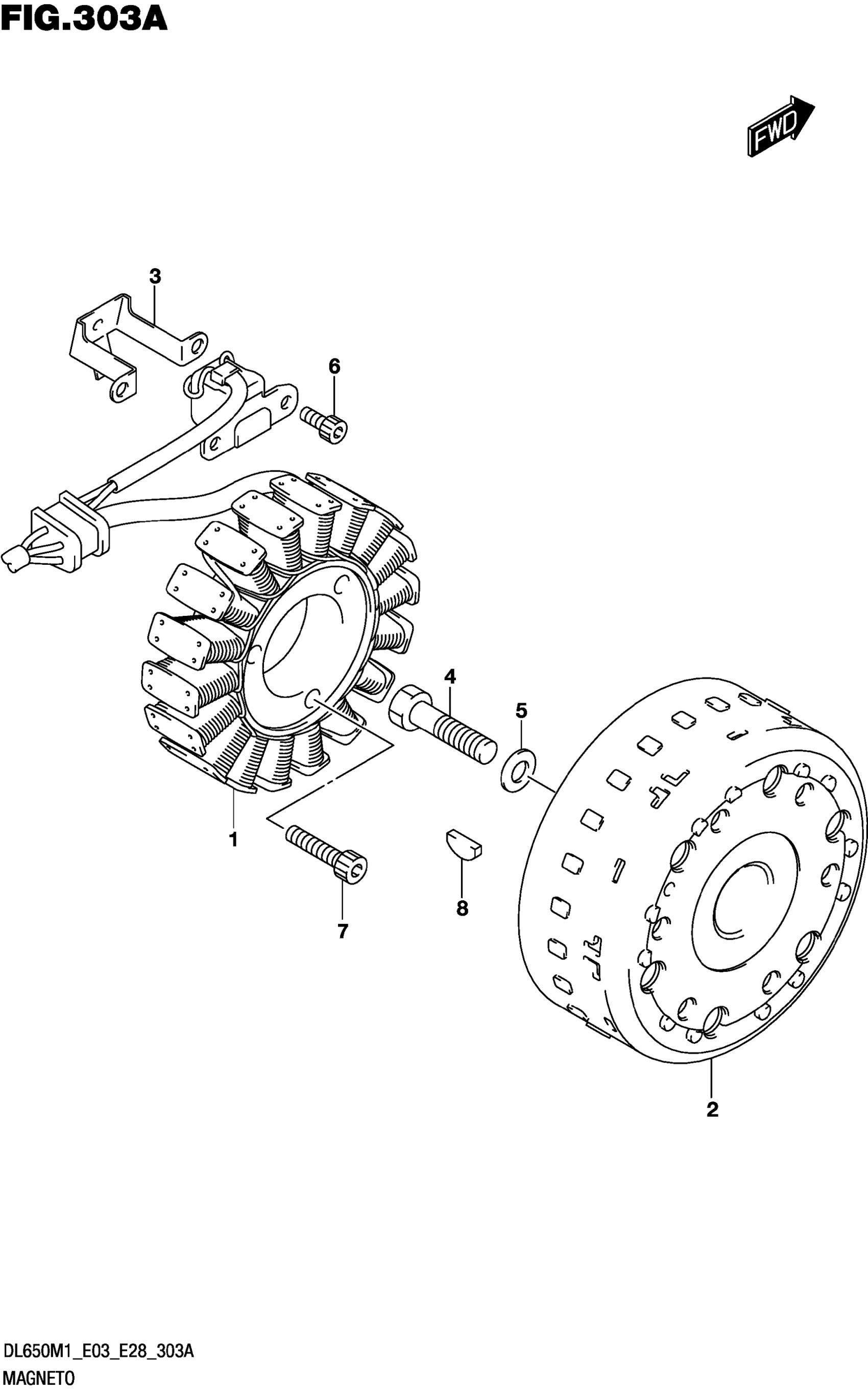

Find the part on the Magneto diagram for your 2021 Suzuki DL650AM1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Suzuki DL650AM1 Magneto Diagram

#

Description
Price
Status
Order Qty

1

STATOR ASSY

32101-28K00-000

Out of stock

2

ROTOR ASSY

32102-28K00-000

Out of stock

3

CLAMP,MAGNETO LEAD

32371-19F10-000

Out of stock

4

BOLT (12X40)

09103-12004-000

Out of stock

5

WASHER (12X30X3.0)

09160-12036-000

Out of stock

6

BOLT

07130-0512A-000

Out of stock

7

BOLT

07130-0635A-000

Out of stock

8

KEY (B:4,D:16,H6.5)

09420-04008-000

Out of stock
