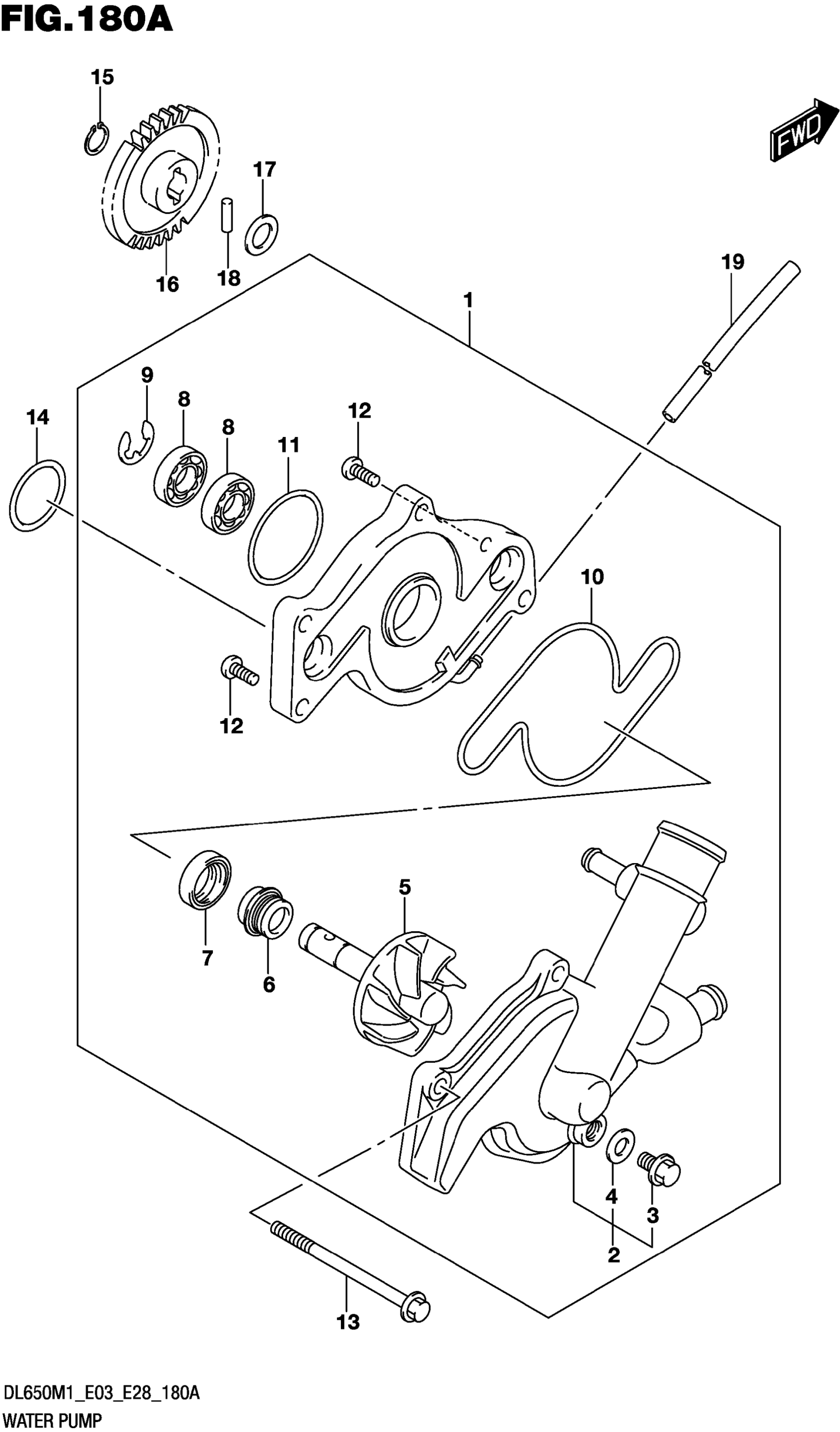

Suzuki DL650AM1 (2021) WATER PUMP Diagram

#

Description

Price

1

PUMP ASSY,WATER

17400-44H01-000

Unavailable

2

.CASE,WATER PUMP

17411-44H00-000

Unavailable

3

..BOLT,DRAIN

17415-20920-000

Unavailable

4

..GASKET (8.2X14X1)

09168-08008-000

Unavailable

5

.SHAFT,IMPELLER

17491-19F40-000

Unavailable

6

.SEAL,WATER PUMP SHAFT MECH

17470-02F11-000

Unavailable

7

.SEAL,OIL (10X21X5)

17461-48G00-000

Unavailable

8

.BEARING (10X26X8)

09262-10014-000

Unavailable

9

.E RING

08332-1108A-000

Unavailable

10

.O-RING

17418-19F00-000

Unavailable

11

.O RING

17435-33400-000

Unavailable

12

.SCREW

02112-0510A-000

Unavailable

13

BOLT,WATER PUMP CASE (6X70)

09103-06537-000

Unavailable

14

O RING (D:2.4,ID:21.8)

09280-22001-000

Unavailable

15

CIRCLIP

08331-31109-000

Unavailable

16

GEAR,WATER PUMP DRIVEN (NT:34

17461-44H00-000

Unavailable

17

SHIM (10X18X0.5)

09181-10158-000

Unavailable

18

ROLLER (4X13.8)

09261-04002-000

Unavailable

19

HOSE (3.5X6.5X320)

09352-35654-320

$9.43
