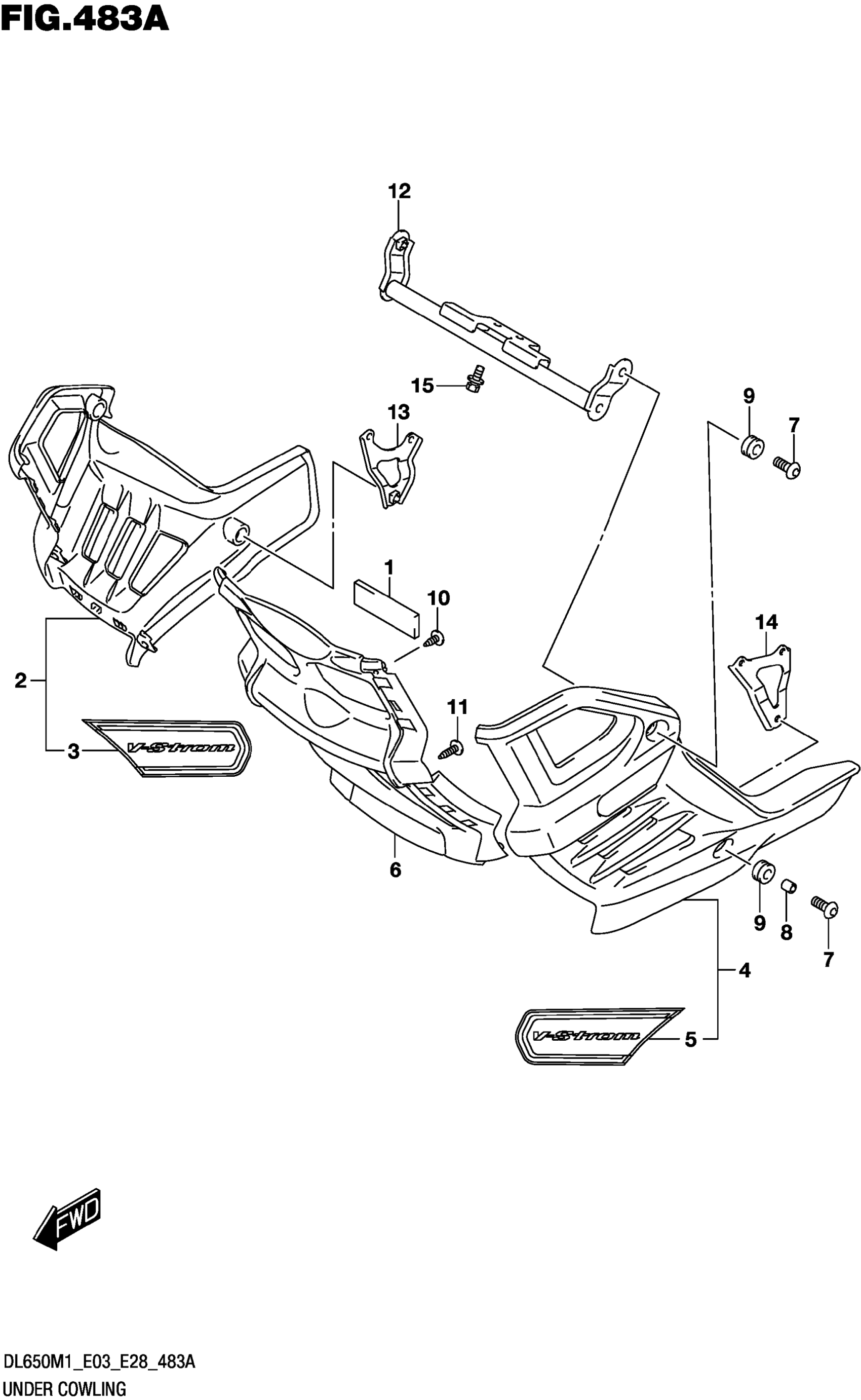

Suzuki DL650AM1 (2021) UNDER COWLING (DL650XA) Diagram

#

Description

Price

1

CUSHION,FRAME COVER LOWER NO.

47612-44H00-000

Unavailable

2

UNDER COWL RH

94470-11J00-291

$119.63

3

.EMBLEM,UNDER COWL RH

68181-11J00-000

Unavailable

4

UNDER COWL LH

94480-11J00-291

$119.63

5

.EMBLEM,UNDER COWL LH

68191-11J00-000

Unavailable

6

COWLING, UNDER CTR

94491-11J00-291

$58.62

7

SCREW (6X16)

09139-06139-000

Unavailable

8

SPACER (6.5X9X9)

09180-06263-000

Unavailable

9

CUSHION (9X18X9.5)

09320-09016-000

Unavailable

10

SCREW

03541-0510B-000

Unavailable

11

SCREW

03541-0516B-000

Unavailable

12

BRACKET,UNDER COWLING FRONT

94520-11J00-000

Unavailable

13

BRACKET,UNDER COWLING RH

94530-11J00-000

Unavailable

14

BRACKET,UNDER COWLING LH

94540-11J00-000

Unavailable

15

BOLT (6X16)

09116-06006-000

Unavailable
