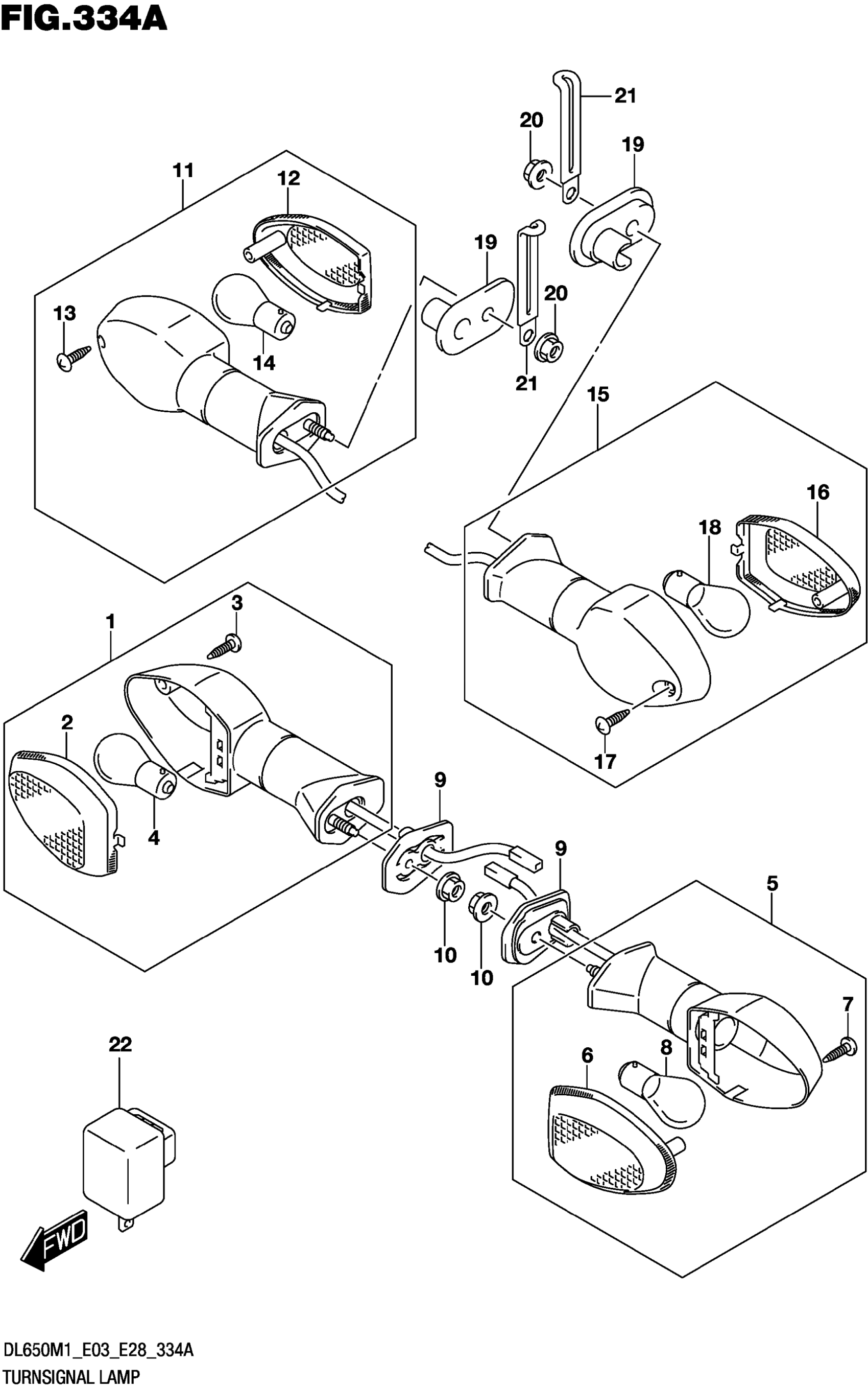

Suzuki DL650AM1 (2021) TURNSIGNAL LAMP Diagram

#

Description

Price

1

LAMP ASSY,FRONT TURNSIGNAL RH

35601-08JA0-000

Unavailable

2

.LENS,RH

35612-08JA0-000

Unavailable

3

.SCREW

03211-0414B-000

Unavailable

4

.BULB (12V21W)

09471-12186-000

Unavailable

5

LAMP ASSY,FRONT TURNSIGNAL LH

35602-08JA0-000

Unavailable

6

.LENS,LH

35632-08JA0-000

Unavailable

7

.SCREW

03211-0414B-000

Unavailable

8

.BULB (12V21W)

09471-12186-000

Unavailable

9

PLATE,FRONT TURNSIGNAL

35629-18G00-000

Unavailable

10

NUT

08316-1005A-000

Unavailable

11

LAMP ASSY,RR TURNSIGNAL RH

35603-08JA0-000

Unavailable

12

.LENS,LH

35632-08JA0-000

Unavailable

13

.SCREW

03211-0414B-000

Unavailable

14

.BULB (12V21W)

09471-12186-000

Unavailable

15

LAMP ASSY,RR TURNSIGNAL LH

35604-08JA0-000

Unavailable

16

.LENS,RH

35612-08JA0-000

Unavailable

17

.SCREW

03211-0414B-000

Unavailable

18

.BULB (12V21W)

09471-12186-000

Unavailable

19

PLATE,TURNSIGNAL LAMP

35629-31F40-000

Unavailable

20

NUT

08316-1005A-000

Unavailable

21

CLAMP (L:45)

09404-06429-000

Unavailable

22

RELAY ASSY,TURNSIGNAL LAMP

38610-06F01-000

Unavailable
