2021 Suzuki DL650AM1 Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2021 Suzuki DL650AM1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

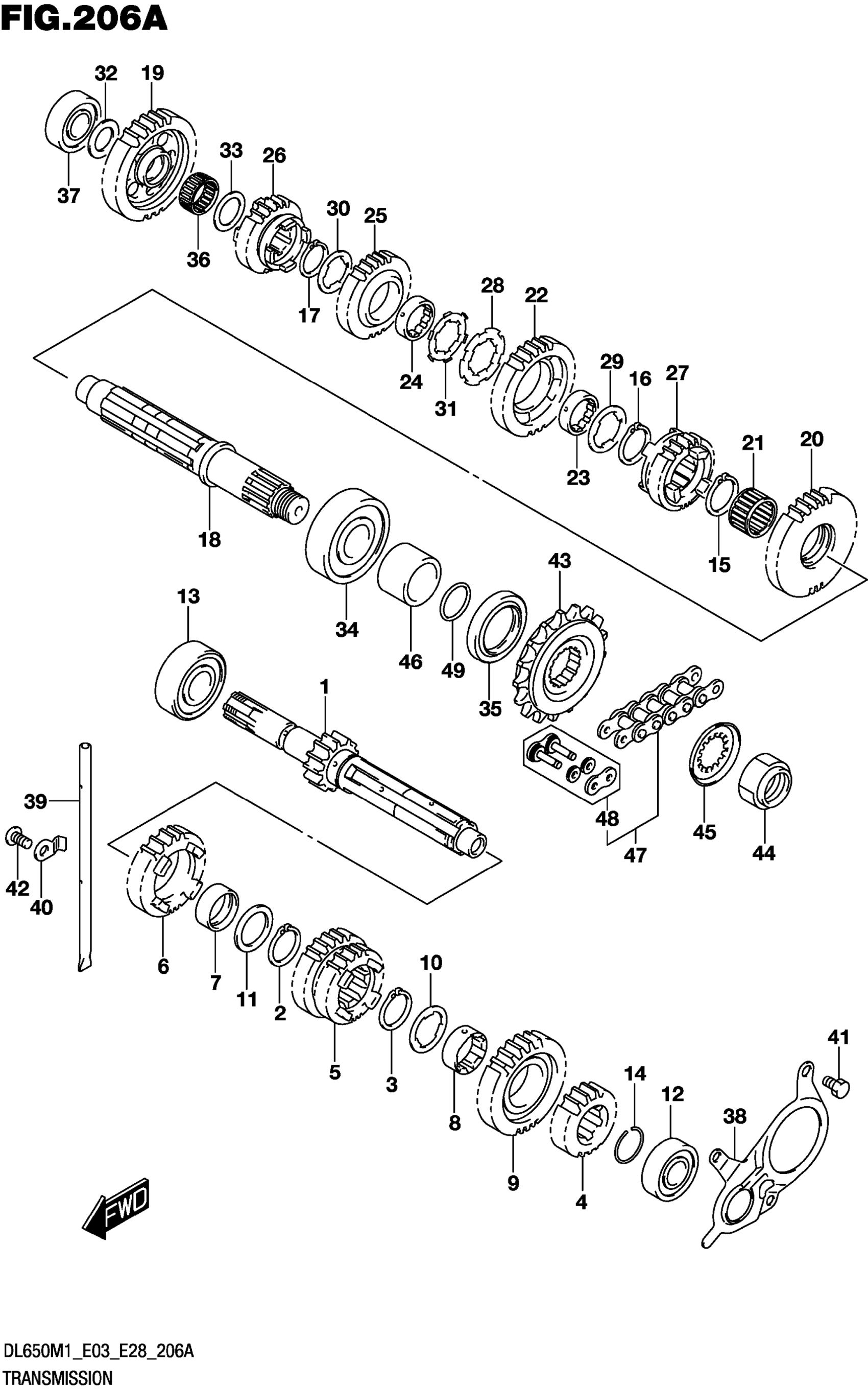

2021 Suzuki DL650AM1 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT,COUNTER (NT:13)

24120-27G00-000

—
Out of stock

2

CIRCLIP

24127-19F00-000

—
Out of stock

3

CIRCLIP

24127-19F00-000

—
Out of stock

4

GEAR,2ND DRIVE (NT:18)

24221-20F10-000

—
Out of stock

5

GEAR,3RD & 4TH DRIVE (NT:21/2 | )

24231-20F10-000

—
Out of stock

6

GEAR,5TH DRIVE (NT:26)

24251-20F02-000

—
Out of stock

7

BUSH

24252-19F00-000

—
Out of stock

8

BUSH,6TH DRIVE GEAR

24252-38A10-000

—
Out of stock

9

GEAR,6TH DRIVE GEAR (NT:27)

24261-20F00-000

—
Out of stock

10

WASHER,LOCK (25.1X33X1.0)

09167-25021-000

—
Out of stock

11

SHIM (25X34X1)

09181-25167-000

—
Out of stock

12

BEARING (17X40X12)

09262-17046-000

—
Out of stock

13

BEARING (20X52X15)

09262-20145-000

—
Out of stock

14

CIRCLIP

09380-25012-000

—
Out of stock

15

CIRCLIP

24127-19F00-000

—
Out of stock

16

CIRCLIP

24127-19F00-000

—
Out of stock

17

CIRCLIP

24127-19F00-000

—
Out of stock

18

SHAFT,DRIVE

24130-44H40-000

—
Out of stock

19

GEAR,1ST DRIVEN (NT:32)

24311-44H00-000

—
Out of stock

20

GEAR,2ND DRIVEN (NT:32)

24321-44H20-000

—
Out of stock

21

BEARING (25X29X13)

09263-25069-000

—
Out of stock

22

GEAR,3RD DRIVEN (NT:29)

24331-44H00-000

—
Out of stock

23

BUSH,DRIVEN GEAR

24332-24510-000

—
Out of stock

24

BUSH,DRIVEN GEAR

24332-24510-000

—
Out of stock

25

GEAR,4TH DRIVEN (NT:27)

24341-44H00-000

—
Out of stock

26

GEAR,5TH DRIVEN (NT:25)

24351-44H10-000

—
Out of stock

27

GEAR,6TH DRIVEN (NT:23)

24361-44H00-000

—
Out of stock

28

WASHER,LOCK (25.1X41X1.5)

09167-25013-000

—
Out of stock

29

WASHER,LOCK (25.1X33X1.0)

09167-25021-000

—
Out of stock

30

WASHER,LOCK (25.1X33X1.0)

09167-25021-000

—
Out of stock

31

WASHER (25.1X37X2.5)

09169-25001-000

—
Out of stock

32

SHIM (17X28X1.0)

09181-17195-000

—
Out of stock

33

SHIM (20X30X1)

09181-20195-000

—
Out of stock

34

BEARING,DRIVE SHAFT,L (25X62X | 7)

09262-25190-000

—
Out of stock

35

OIL SEAL (36X50X6)

09283-36011-000

—
Out of stock

36

BEARING,1ST DRIVEN GEAR

09263-20115-000

—
Out of stock

37

BEARING

08113-6203A-000

—
Out of stock

38

RETAINER,DRIVE SHAFT OIL SEAL

24751-19F10-000

—
Out of stock

39

GUIDE,T/M OIL

24881-12C30-000

—
Out of stock

40

RETAINER,TRANSMISSION OIL

24885-12C10-000

—
Out of stock

41

BOLT

01500-0612A-000

—
Out of stock

42

SCREW

02112-0612A-000

—
Out of stock

43

SPROCKET,ENGINE (NT:15)

27510-20F21-000

—
Out of stock

44

NUT

09159-20004-000

—
Out of stock

45

WASHER,LOCK

09167-25028-000

—
Out of stock

46

SPACER,ENGINE SPROCKET

27531-19F10-000

—
Out of stock

47

1

$230.85

In stock

48

.JOINT SET,DRIVE CHAIN

27620-06G40-000

—
Out of stock

49

O RING (D:2.4,ID:23.7)

09280-24010-000

—
Out of stock
