2021 Suzuki DL650AM1 Clutch Diagram

← All diagrams

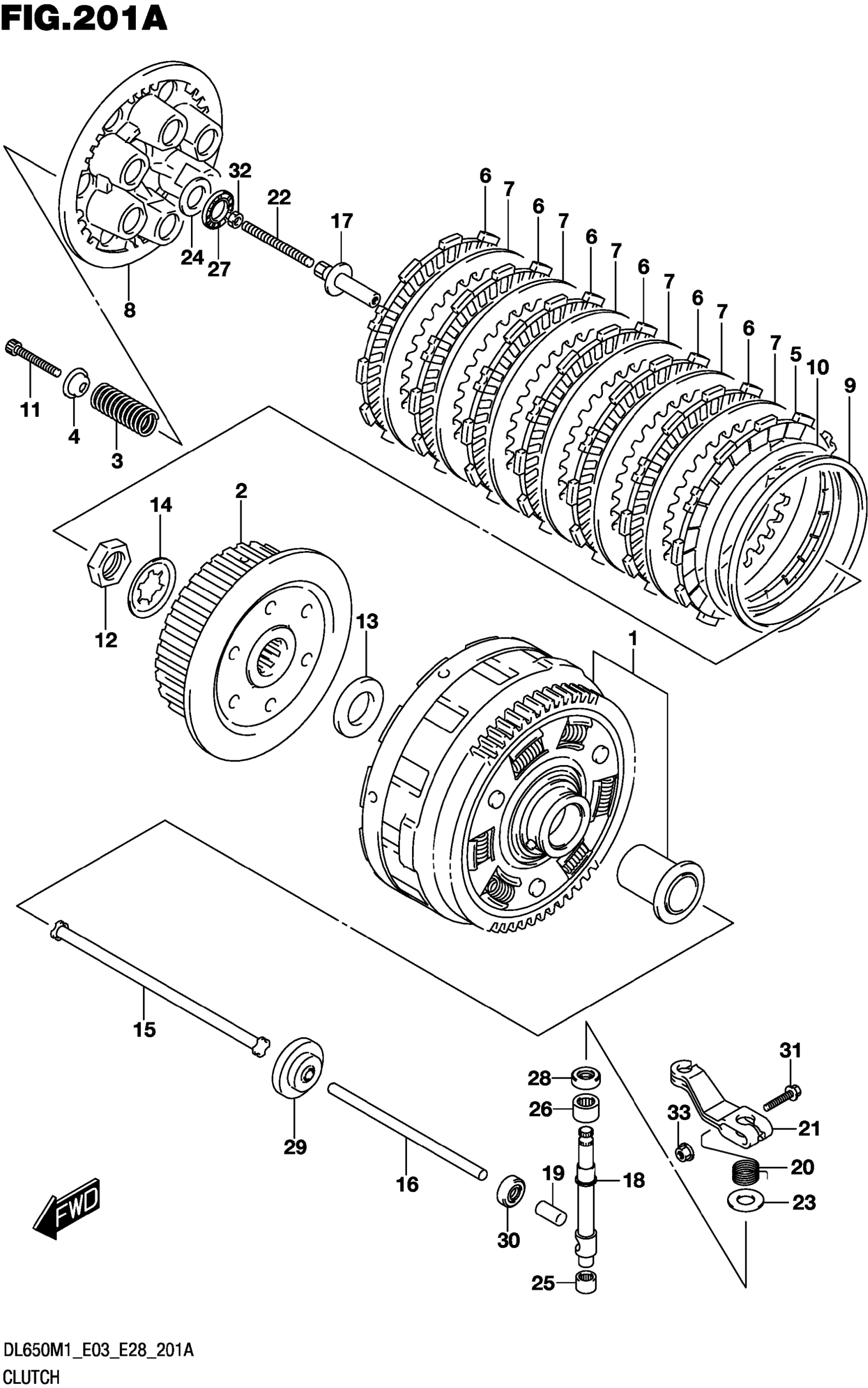

Find the part on the Clutch diagram for your 2021 Suzuki DL650AM1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Suzuki DL650AM1 Clutch Diagram

#

Description
Price
Status
Order Qty

1

GEAR ASSY,PRIMARY DRIVEN (NT: | 1)

21200-44860-000

Out of stock

2

HUB,CLUTCH SLEEVE

21411-44101-000

Out of stock

3

SPRING,CLUTCH

21413-17G10-000

Out of stock

4

WASHER

21414-29F00-000

Out of stock

5

PLATE,CLUTCH DRIVE NO.2 (T:3. | )

21442-29F10-000

Out of stock

6

PLATE,CLUTCH DRIVE (T:3.0)

21441-29F30-000

Out of stock

7

PLATE,CLUTCH DRIVEN (T:1.6)

21451-28C31-000

Out of stock

8

DISC,CLUTCH PRESSURE

21462-14301-000

Out of stock

9

SEAT,WAVE WASHER

21471-17G00-000

Out of stock

10

WASHER,CLUTCH PLATE WAVE

21472-17G00-000

Out of stock

11

BOLT,CLUTCH SPRING

21482-41G10-000

Out of stock

12

NUT

09140-20001-000

Out of stock

13

WASHER (20X36X3)

09160-20067-000

Out of stock

14

WASHER,LOCK

09167-20006-000

Out of stock

15

ROD,PUSH RH

23110-44111-000

Out of stock

16

ROD,CLUTCH PUSH LH

23111-15501-000

Out of stock

17

PIECE,CLUTCH PUSH

23121-44H00-000

Out of stock

18

CAMSHAFT,CLUTCH RELEASE

23122-44H00-000

Out of stock

19

CAP,CLUTCH PUSH ROD

23123-41G00-000

Out of stock

20

SPRING,CLUTCH RELEASE RETURN

23125-11J00-000

Out of stock

21

ARM,CLUTCH RELEASE

23271-44H21-000

Out of stock

22

SCREW (6X73)

09134-06015-000

Out of stock

23

WASHER,10.5X24X1 (10.5X24X1.0

09160-10020-000

Out of stock

24

WASHER (15.5X28X1)

09160-15045-000

Out of stock

25

BEARING (10X14X10)

09263-10014-000

Out of stock

26

BEARING (12X18X12)

09263-12027-000

Out of stock

27

BEARING (15X28X2)

09263-15003-000

Out of stock

28

SEAL,OIL (10X20X6)

09282-10012-000

Out of stock

29

OIL SEAL (6X34X10.5)

09283-06008-000

Out of stock

30

OIL SEAL (10X17X5)

09285-10004-000

Out of stock

31

BOLT (6X25)

01550-0625A-000

Out of stock

32

NUT

08310-0006A-000

Out of stock

33

NUT (6X12)

08316-1006A-000

Out of stock
