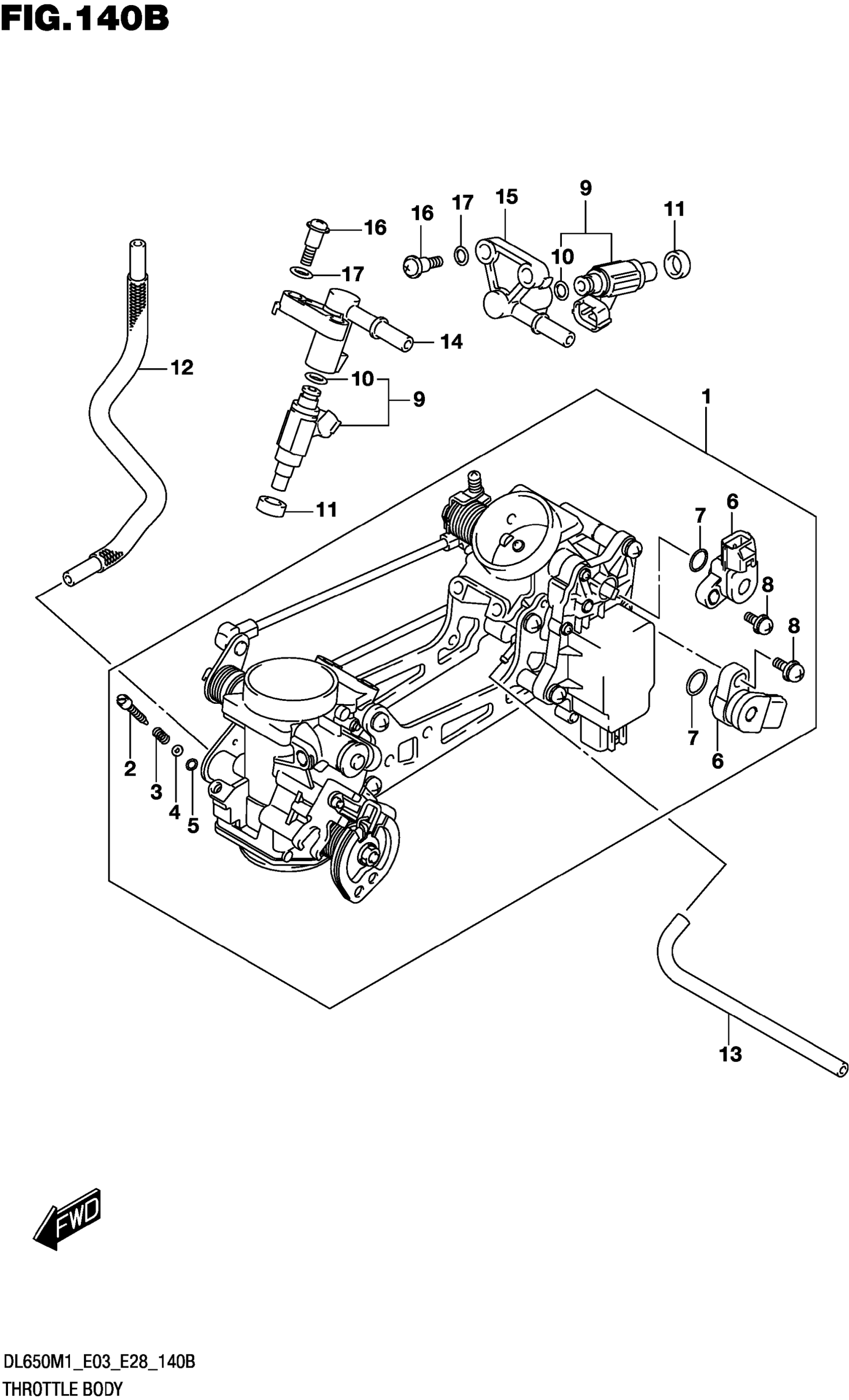

Suzuki DL650AM1 (2021) THROTTLE BODY ((E03,E28)) Diagram

#

Description

Price

1

BODY ASSY,THROTTLE

13405-28K00-000

Unavailable

2

.SCREW

13269-33E00-000

Unavailable

3

.SPRING,THROTTLE SCREW

13268-48700-000

Unavailable

4

.WASHER

13606-47A00-000

Unavailable

5

.O RING

13295-29901-000

Unavailable

6

.SENSOR

13580-27G21-000

Unavailable

7

.O RING

13575-29G01-000

Unavailable

8

.SCREW

13605-02F00-000

Unavailable

9

INJECTOR ASSY

15710-11J00-000

Unavailable

10

.O-RING

15717-58B00-000

Unavailable

11

SEAL

15722-29G00-000

Unavailable

12

HOSE

13683-28K01-000

Unavailable

13

HOSE

13683-44H11-000

Unavailable

14

DELIVERY PIPE

15731-11J00-000

Unavailable

15

DELIVERY PIPE

15732-11J00-000

Unavailable

16

SCREW,DELIVERY PIPE

13601-11J00-000

Unavailable

17

PACKING

13602-29G01-000

Unavailable
